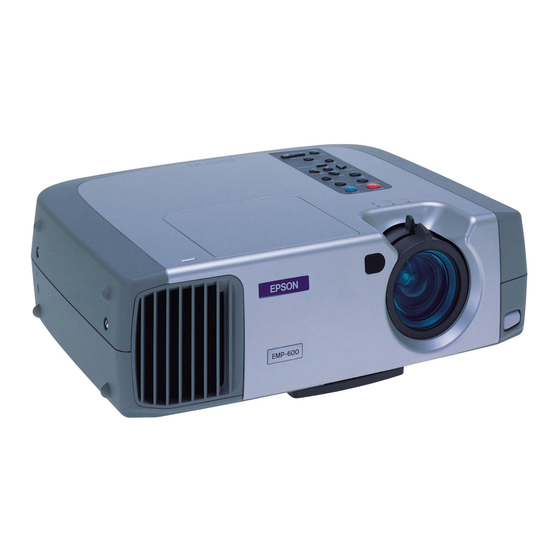

Epson ESC User Manual

Esc/vp21 command user's guide for business projectors
Hide thumbs

Advertisement

ESC/VP21 Command User's Guide for Business Projectors
ESC/VP21 Command User's Guide for
Business Projectors

Advertisement

Table of Contents
loading

  Also See for Epson ESC

  Related Manuals for Epson ESC

  Summary of Contents for Epson ESC

  • Page 1 ESC/VP21 Command User's Guide for Business Projectors ESC/VP21 Command User's Guide for Business Projectors...
  • Page 2: Table Of Contents

    Introduction to ESC/VP21 - - - - - - - - - - - - - - - - - - - - - - - - - - 3 ESC/VP21 Command Formats - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4...
  • Page 3: Introduction To Esc/Vp21

    1.Introduction to ESC/VP21 ESC/VP21 is a control command and protocol for Epson projectors, which is used for A/V controller to control and monitor Epson projectors. The command codes are comprised of ASCII codes. Therefore the command codes can be understood very easily and you can easily control projectors using a PC with a terminal emulator such as Microsoft Hyper terminal.
  • Page 4: Esc/Vp21 Command Formats

    ESC/VP21 Command User's Guide for Business Projectors 2.ESC/VP21 Command Formats 2.1.Set command format A set command consists of a command and a parameter. Projector returns a colon after executing the command. There are two types of parameters. One is fixed such as ON, OFF, or 21.Other is a step parameter such as INC, DEC or INIT.
  • Page 5: Projector State And Commands

    ESC/VP21 Command User's Guide for Business Projectors 3.Applicable Models EMP-600/800/810/811/820,30/52,720/730/520,73/53/74/54,735,8300/9300,7800/7850,S1/S1H,61/81,830/835,740/745/732/ 737,821/828,7900/7950,S3/S4,765/760,755/750,62/82/X3,1715/1710/1705/1700,6000/6100,1815/1810,S5/X5/83/822,260/280/ 6110/6010,400W/410W,83+/822+, 1825, EX90, G5350/G5300/G5150/G5100/G5200W/G5000, S6/X6/W6, 1735W/1730W/1725/ 1720, Z8000WU/Z8050W 4.Projector state and commands 4.1.Standby state (operation indicator is in orange) When a projector is in a standby state, executable commands depend on projector models and standby configuration (network on, network off).
  • Page 6: Error Status

    ESC/VP21 Command User's Guide for Business Projectors Power Consumption Model s Network off Network on 62/82 about 4.0W about 25W X3(76) about 5.0W: 230V area about 23W: 120V area (only 62/82) 6100/6000 about 0.4W about 10W 1715/1705 about 3.8W about 18W 1815/1810/1825 about 2.6W...
  • Page 7: Command Transmission Timing

    ESC/VP21 Command User's Guide for Business Projectors 6.Command transmission timing 6.1.Standby state 1) For all model with the standby configuration of "network on" The first command can be sent anytime and the subsequent commands should be sent after receiving a colon from the projector.
  • Page 8 ESC/VP21 Command User's Guide for Business Projectors 6.3.Warning and abnormal cases Projector executes commands normally while a warning indicator such as a high temperature warning is on. Projector does not execute commands nor return a colon when the projector is in an abnormal state such as a lamp failure and abnormal high temperature.
  • Page 9: Command List And Applicable Models

    ESC/VP21 Command User's Guide for Business Projectors 7.Command list and Applicable Models 7.1.Command table 1 ( Fixed parameter) (OSupported -Not supported) 7800/ 600/800/ 720/730/ 73/53 8300/ 7850/ Function Command 810/811/ 30/52 61/81 830/835 S1/S1H 520/735 74/54 9300 7900/ 7950 Power control...
  • Page 10 ESC/VP21 Command User's Guide for Business Projectors G5350/ G5300/ 1735W/ 84/85/ 6110/ 400W/ G5150/ S6/X6/ 1730W/ Z8000WU Function Command 824/825/ 6010 410W G5100/ 1725/ /Z8050W 826W G5200W/ 1720 G5000 Power control Input source SOURCE PinP setting PINP A/V Mute Screen...
  • Page 11 ESC/VP21 Command User's Guide for Business Projectors 7.2.Command table 2 ( Step parameter) (OSupported -Not supported) 7800/ 600/800/ 720/730/ 73/53 8300/ 7850/ Function Command 810/811/ 30/52 61/81 S1/S1H 520/735 74/54 9300 7900/ 7950 Adjust the volume Adjust the treble setting...
  • Page 12: Command Details

    ESC/VP21 Command User's Guide for Business Projectors 8.Command Details 8.1.Command table 1 ( Fixed parameter) Parameter for set Set commands Get commands Models Function (Return code for get) PWR xx All models Power on All models Power off PWR? 00 : "Standby" at the time of 61/81 Return the "Standby"...
  • Page 13 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) PWR xx PWR? 04 : "Standby" at the time of 7800/7850 Return the "Standby" at the "Network on" 8300/9300 time of "Network on" status...
  • Page 14 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) SOURCE xx SOURCE? 11 : PC1(analog-RGB) 600/800/810/811/820 Select the input source 12 : PC1(digital-RGB) 13 : PC1(RGB-Video) 21 : PC2(analog-RGB)
  • Page 15 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) SOURCE xx SOURCE? 10 : Input 1 61/81 Select the input source 11 : Input 1(RGB) 821/828 14 : Input 1(Compornent)
  • Page 16 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) SOURCE xx SOURCE? 10 : INPUT1(D-Sub) G5000 11 : INPUT1(RGB) 14 : INPUT1(Component) 20 : INPUT2(D-Sub) 21 : INPUT2(RGB) 24 : INPUT2(Component)
  • Page 17 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) MSEL xx MSEL? 00 : Black screen 600/800/810/811/820 Set A/V Mute Screen 01 : Blue screen 730/720/520/735 02 : User logo...
  • Page 18 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) ASPECT xx ASPECT? 10 : 4:3 74/54 Set aspect ratio 12 : zoom 4:3 7800/7850 20 : 16:9 8300/9300 S1/S1H...
  • Page 19 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) ASPECT xx ASPECT? 00 : Nomal 1735W/1730W 20 : 16:9 40 : Full 50 : Zoom 60 : Through 84/85/824/825/826W...
  • Page 20 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) 84/85/824/825/826W 01 : sRGB 04 : Presentation 05 : Theater 06 : Dynamic 08 : Sports 11 : Black Board...
  • Page 21 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) AUDIO xx AUDIO? 01 : Audio1 600/800/810/811/820 Select audio input 02 : Audio2 03 : USB 01 : Audio (Computer)
  • Page 22 ESC/VP21 Command User's Guide for Business Projectors Parameter for set Set commands Get commands Models Function (Return code for get) FOCUS xx Z8000WU/Z8050W Electric focus is adjusted. MIN:Adjusts it to Short focus side continuously. MAX:Adjusts it to Long focus side continuously.
  • Page 23 ESC/VP21 Command User's Guide for Business Projectors 8.2.Command table 2 ( Step parameter) Set commands Initial value Steps Models Function VOL xx 0 - 31 600/800/810/811/820 Set the volume level 0 - 20 720/730/735 0 - 20 30/52 0 - 20...
  • Page 24 ESC/VP21 Command User's Guide for Business Projectors Set commands Initial value Steps Models Function BRIGHT xx -30 - 30 600/800/810/811/820 Set brightness -64 - 64 720/730/735 -64 - 64 30/52 -64 - 64 73/53/74/54 -30 - 30 8300/9300 -30 - 30...
  • Page 25 ESC/VP21 Command User's Guide for Business Projectors Set commands Initial value Steps Models Function TINT xx -15 - 15 600/800/810/811/820 Set tint -15 - 15 720/730/735 -32 - 32 30/52 -32 - 32 73/53/74/54 -15 - 15 8300/9300 -5 - 5...
  • Page 26 ESC/VP21 Command User's Guide for Business Projectors Set commands Initial value Steps Models Function HKEYSTONE xx -29 - 29 600/800/810/811/820 Set horizontal keystone value -39 - 39 7800/7850/7900/7950 -64 - 64 830/835 -60 - 60 1815/1810 -40 - 40 G5350/G5300/G5150/G5100/G5200W/...
  • Page 27: Appendix

    • For S6/X6/W6/1735W/1730W/1725/1720,select Wireless Mouse and select Link 21Lat Extended Setting of the Menu. • Epson USB COM Driver has to be installed in your computer to use USB for communication. A COM port is added to your computer, when the projector and your computer is connected by a USB cable. The added COM is listed at PORT (COM/LPT) in the device manager tab of System in Control Panel as EPSON COM Emulation port (COMn).
  • Page 28: Revision History

    ESC/VP21 Command User's Guide for Business Projectors Revision History Revision Issued Date Page Description Sep 16,2005 All pages First release. All pages. Correction of disclaimer. Oct 19,2005 Model EMP-755/750 addition. Nov 4,2005 All pages. Model EMP-62/82/X3(76) addition. Apr 17,2006 All pages.
