CAMBRIDGE Olde English Reference Manual

Pre-packaged / pre-cut olde english wall outdoor fireplace kit
Hide thumbs Also See for Olde English:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Instruction Manual
Cambridge Pre-Packaged / Pre-Cut
Olde English Wall Outdoor Fireplace Kit
(with Surround)
Cambridge Pre-Envasados / Pre-Cut
Olde Inglés Kit de Pared de la Chimenea
al Aire Libre (con Sonido Envolvente)

Advertisement

Table of Contents
loading

Related Manuals for CAMBRIDGE Olde English

Summary of Contents for CAMBRIDGE Olde English

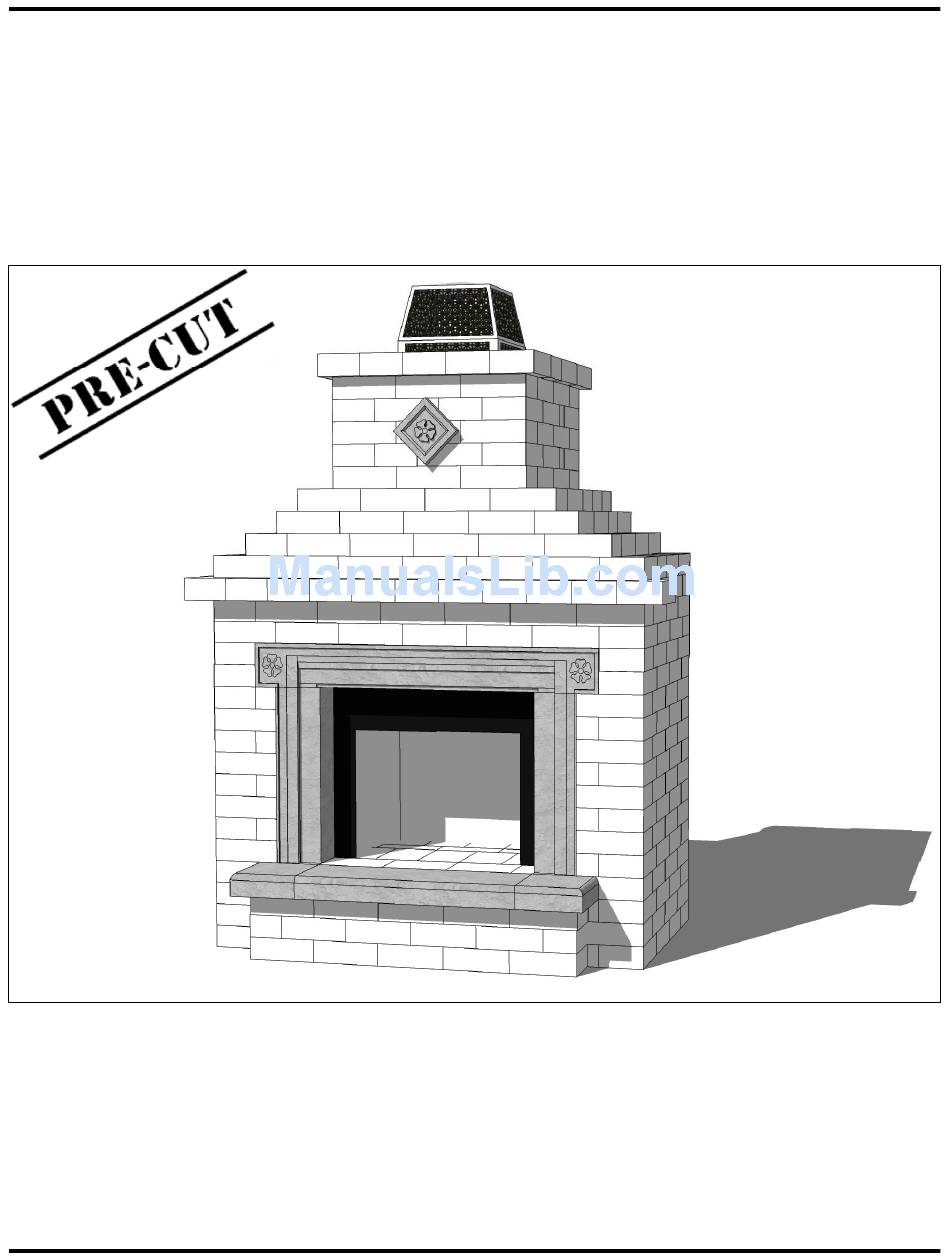

  • Page 1 Cambridge Pre-Packaged / Pre-Cut Olde English Wall Outdoor Fireplace Kit (with Surround) Cambridge Pre-Envasados / Pre-Cut Olde Inglés Kit de Pared de la Chimenea al Aire Libre (con Sonido Envolvente)

  • Page 2: Table Of Contents

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer Reference Guide: Guía de Referencia: Layer 28 Layer 27 Layer 26 Layer 25 Layer 24 Layer 23 Layer 22 Layer 21 Layer 20 Layer 19 Layer 18...
  • Page 3 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Shim Placement Detail: Place Blue, or Red shim here. Place Blue, or Red shim here.

  • Page 4: Layer

    Lennox™ does not apply for this application except for installation of air cooled chimney as shown in layer 4-A. **NOTE: Air Cooled Chimney extensions are available in 1’, 2’, & 4’ lengths. Call your Cambridge Dis- tributor for pricing and availability.
  • Page 5 4. ** NOTA: Refrigeracion por aire extensiones de la chimenea están disponibles en 1’, 2’ de longitud, y 4. Llame a su distribuidor de Cambridge para la fijación de precios y la disponibilidad. Herramienta Requerida Para la Instalacion del Kit: Artículos Incluidos en el Kit de la Chimenea:...
  • Page 6 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Fireplace Concrete Pad Construction: Call 811 for information on underground utility marking. Select desired location and exca- vate 88” L x 60” W x 12” D area for concrete pad. Install four 8” diameter concrete tubes to frost-line as per local code.
  • Page 7 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Fireplace Concrete Pad Detail-Cross Section Drawing: Concreta del cojín de la chimenea detail Dibujo Seccionado Transversalmente: 30” A - ½” steel reinforcing rod / Barra de refuerzo de acero B - 4”...
  • Page 8 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Stones Included In The Kit: Wall Stones (550 Pieces) 6”x8” Cut Stone (2 Pieces) 4”x12” Cut Stone (25 Pieces) 4” 4”x8” Cut Stone (15 Pieces) 8”x8” Cut Stone (15 Pieces) 4”x4”...

  • Page 9: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 8 Blocks Stand On End/ Soporte de 8 bloques en extremo 10” 10” Layer 1: Capa 1: Piece Count = (47) Wall Stones Numero de Piezas = (47) Piedras de Pared Mark a line 4”...

  • Page 10: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 2: Capa 2: Piece Count = (38) Wall Stones, (2) 6x8 Cut Numero de Piezas = (38) Piedras de Pared, (2) Stones Piedras Cortadas 6x8 Apply concrete adhesive and install wall stones Instale piedras de la pared y piedras talladas de and cut stones according to the photo.

  • Page 11: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 3: Capa 3: Piece Count = (39) Wall Stones Numero de Piezas = (39) Piedras de Pared Instalacion de la pared de piedra de acuerdo a la Apply concrete adhesive and install wall stones foto.

  • Page 12: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x12 4x12 4x12 Place Blue, or Red shim here. Hearth Left Hearth Right Hearth Center Corner Corner Layer 4: Capa 4: Piece Count = (34) Wall Stones, (1) 4x8 Cut...

  • Page 13: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 4-A: Firebox Placement Capa 4-A: Colocacion de la Caja de Fuegos Install firebox unit 19 1/2” from the front of Instale la unidad caja de fuego de 19 1/2” desde el layer 4 and 17 5/8”...

  • Page 14: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 4-B: Capa 4-B: Remove firebox plate top support with a Phillips Retire el soporte del fog n placa superior con un screwdriver. destornillador de estrella.

  • Page 15: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x8 cut stone Layer 5: Capa 5: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone, (2) Cast Stone Legs...

  • Page 16: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 6: Capa 6: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8 Apply concrete adhesive and install wall stones Instale piedras de la pared y piedras talladas de and cut stone according to the photo.

  • Page 17: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x8 cut stone Layer 7: Capa 7: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8...

  • Page 18: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 8: Capa 8: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8 Apply concrete adhesive and install wall stones Instale piedras de la pared y piedras talladas de and cut stone according to the photo.

  • Page 19: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 9: Capa 9: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8 Apply concrete adhesive and install wall stones Instale piedras de la pared y piedras talladas de and cut stone according to the photo.

  • Page 20: Layer

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x8 cut stone Layer 10: Capa 10: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8...
  • Page 21 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x8 cut stone Layer 11: Capa 11: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie- Stone dra Cortada 4x8...
  • Page 22 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 40” Place Blue, or Red shim here. 4x8 cut stone Layer 12: Capa 12: Piece Count = (19) Wall Stones, (1) 4x8 Cut Numero de Piezas = (19) Piedras de Pared, (1) Pie-...
  • Page 23 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 56” Lintel HEADSTONE PLACEMENT Layer 12-A: Head Stone & Lintel Placement Capa 12A: Colocacion de Piedra Principal Piece Count = (1) Cast Headstone, (1) 56” Lintel Numero de Piezas = (1) Echó la Lápida Mortuoria (1) el Dintel 56”...
  • Page 24 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4 X 12 4 X 12 Layer 13: Capa 13: Piece Count = (16) Wall Stones, (1) 8x8 Cut Numero de Piezas = (16) Piedras de Pared, (1) Pie-...
  • Page 25 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x12 4x12 Layer 14: Capa 14: Piece Count = (16) Wall Stones, (2) 4x12 Cut Numero de Piezas = (16) Piedras de Pared, (2) Pie- Stones, (1) 8x8 Cut Stone...
  • Page 26 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 14-A: Lintel Placement Capa 14-A: Colocacion de la Lenteja. Apply concrete adhesive and install (4) 32” lin- Aplique el pegamento concreto e instale (4) 32” tels according to the photo. Minor shimming will dinteles según la foto.
  • Page 27 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x12 4x12 4x12 4x12 Layer 15: Capa 15: Piece Count = (20) Wall Stones, (6) 4x12 Cut Numero de Piezas = (20) Piedras de Pared, (6) Stones, (2) 4x8 Cut Stones, (1) 4x4 Cut Stone...
  • Page 28 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4x12 4x12 4x12 Layer 16: Capa 16: Piece Count = (21) Wall Stones, (5) 4x12 Cut Numero de Piezas = (21) Piedras de Pared, (5) Stones, (2) 4x8 Cut Stones, (1) 4x4 Cut Stone Piedras Cortadas 4x12, (1) Piedras Cortadas 4x4, (2) Piedras Cortadas 4x8.
  • Page 29 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4” Overhang 4” Overhang 4 X 8 4 X 12 8 X 8 8 X 8 4 X 8 4 X 12 4” Overhang Layer 17: Capa 17:...
  • Page 30 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 4 X 12 4 X 12 8 X 8 8 X 8 8 X 8 4 X 8 4 X 8 Layer 18: Capa 18: Piece Count = (26) Wall Stones, (3) 8x8 Cut...
  • Page 31 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Flush 4 X 12 4 X 12 6” 6” Flush Layer 19: Capa 19: Piece Count = (22) Wall Stones, (2) 4x12 Cut Numero de Piezas = (22) Piedras de Pared, (2) Pie-...
  • Page 32 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Flush 6” 6” Flush Layer 20: Capa 20: Piece Count = (16) Wall Stones, (3) 8x8 Cut Numero de Piezas = (16) Piedras de Pared, (3) Pie- Stones, (2) 4x8 Cut Stones...
  • Page 33 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Flush 4” 4” Flush Layer 21: Capa 21: Piece Count = (14) Wall Stones, (2) 4x12 Cut Numero de Piezas = (14) Piedras de Pared, (2) Pie- Stones...
  • Page 34 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 2” Step-in 6” 6” 2” Step-in Layer 22: Capa 22: Piece Count = (10) Wall Stones Numero de Piezas = (10) Piedras de Pared Apply concrete adhesive and install wall stones Instale las piedras de la pared de piedra y corte de according to the photo.
  • Page 35 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 23: Capa 23: Piece Count = (8) Wall Stones, (2) 8x8 Cut Numero de Piezas = (8) Piedras de Pared, (2) Pie- Stones, (2) 4x8 Cut Stones...
  • Page 36 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 24: Capa 24: Piece Count = (10) Wall Stones Numero de Piezas = (10) Piedras de la Pared Apply concrete adhesive and install wall stones Instale las piedras de la pared de piedra y corte de according to the photo.
  • Page 37 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 25: Capa 25: Piece Count = (8) Wall Stones, (2) 8x8 Cut Numero de Piezas = (8) Piedras de Pared, (2) Pie- Stones, (2) 4x8 Cut Stones...
  • Page 38 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Layer 26: Capa 26: Piece Count = (10) Wall Stones Numero de Piezas = (10) Piedras de Pared Apply concrete adhesive and install wall stones Instale las piedras de la pared de piedra y corte de according to the photo.
  • Page 39 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround 2” Overhang 2” Overhang 2” Overhang 2” Overhang 2” Overhang 2” Overhang Layer 27: Chimney Cap Capa 27: Chimenea Cap Piece Count = (12) Wall Stones, (2) 8x8 Cut...
  • Page 40 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Chase flashing • El destellar de la persecución Chase flashing with collar facing up. Persecucion que destella con el revestimiento del collar para arriba.
  • Page 41 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Capa 28: Layer 28: Una vez que se ha centrado la chimenea, tome la Once the chimney has been centered, take the persecución que destella con el collar para arriba chase flashing with the collar up and slide it on y deslícela encendido hacia la manga del casquillo...
  • Page 42 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Once you have the termination cap sleeved into the chimney section, you can apply silicone between the final layer of block and the chase flashing to prevent any water or foreign material from entering the chimney cavity.
  • Page 43 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Facing Lintel With Granite Tile: In your fireplace kit you will find 5 pieces of 8” x 8” granite tile. The granite is to be applied to the face of the concrete lintel (polished side facing out) at the top of the fire box using concrete adhesive.
  • Page 44 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround Apply concrete adhesive being careful not to put too much adhesive to the point it migrates out of the joints between the tile. Firmly press all tiles into position. It will be necessary to brace up the bottom of the tile to prevent them from moving while the adhesive is curing.
  • Page 45 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit w/Surround VIEWS RIGHT FRONT BACK LEFT...
