CAMBRIDGE Pre-Packaged Manual

Pre-packaged / pre-cut wall outdoor fireplace kit
Hide thumbs Also See for Pre-Packaged:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Cambridge Pre-Packaged / Pre-Cut
Olde English Wall Outdoor Fireplace Kit
Cambridge Pre-Envasados / Pre-Cortado
Olde Inglés Kit de Pared de la Chimenea
al Aire Libre

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pre-Packaged and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAMBRIDGE Pre-Packaged

Summary of Contents for CAMBRIDGE Pre-Packaged

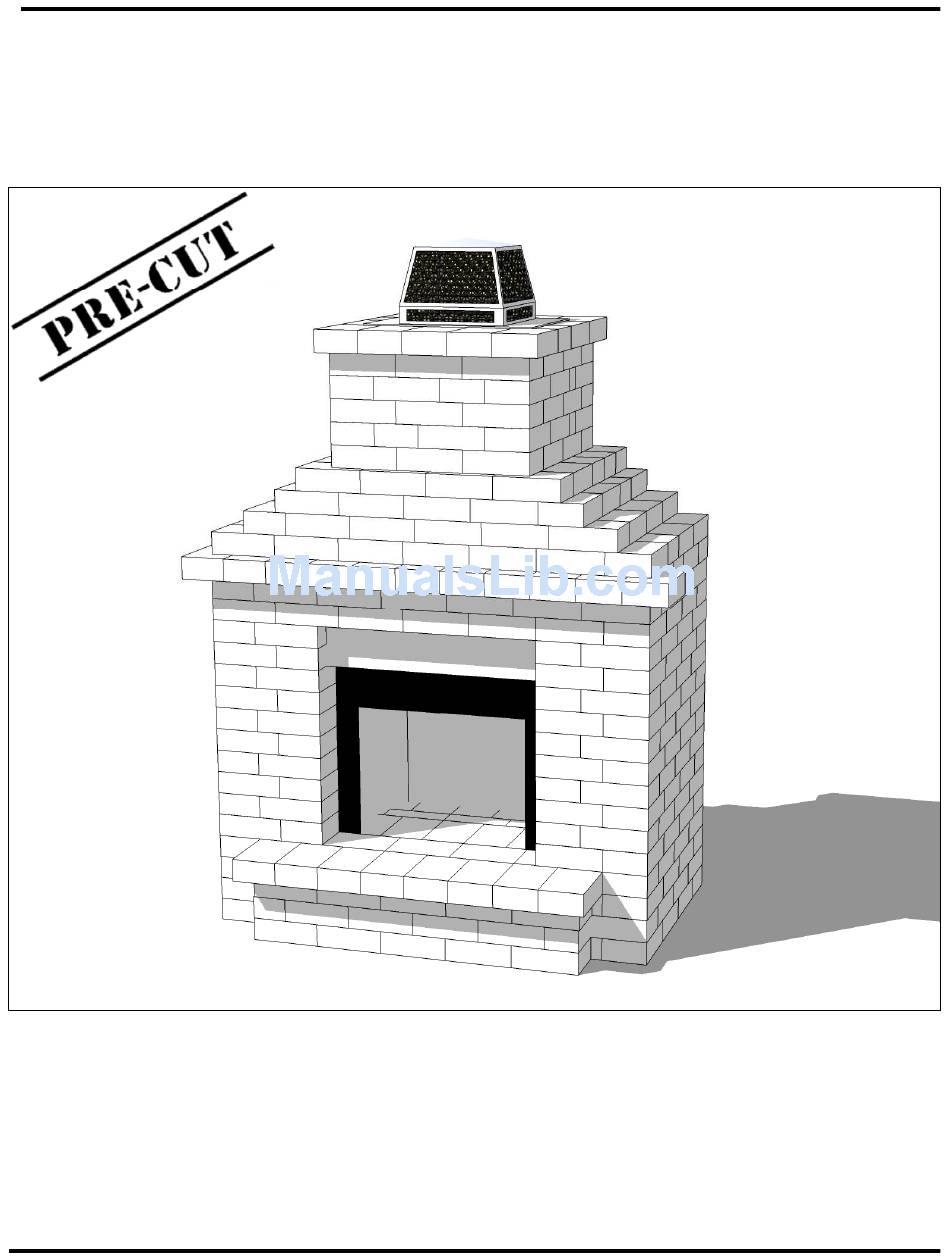

  • Page 1 Cambridge Pre-Packaged / Pre-Cut Olde English Wall Outdoor Fireplace Kit Cambridge Pre-Envasados / Pre-Cortado Olde Inglés Kit de Pared de la Chimenea al Aire Libre...

  • Page 2: Guía De Referencia

    Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer Reference Guide: Guía de Referencia: Finished Grade 2 ” Above Top of 4” Concrete slab (4000 PSI) 6” Compacted 3/4” stone Foundation Layer...
  • Page 3 Lennox™ does not apply for this application except for installation of air-cooled chimney as shown in layer 4-A. **NOTE: Air-Cooled Chimney extensions are available in 1’, 2’, & 4’ lengths. Call your Cambridge Dis- tributor for pricing and availability.
  • Page 4 4. ** NOTA: Refrigeracion por aire extensiones de la chimenea están disponibles en 1’, 2’ de longitud, y 4. Llame a su distribuidor de Cambridge para la fijación de precios y la disponibilidad. Herramienta Requerida Para la Instalacion del Artículos Incluidos en el Kit de la Chimenea:...
  • Page 5 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Fireplace Concrete Pad Construction: Call 811 for information on underground utility marking. Select desired location and ex- cavate 88” L x 60” W x 12” D area for concrete pad. Install four 8” diameter concrete tubes to frost-line as per local code.
  • Page 6 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Fireplace Concrete Pad Detail-Cross Section Drawing: Concreta del Cojín de la Chimenea Detail-Dibujo Seccionado Transversalmente: A - ½” steel reinforcing rod / Barra de refuerzo de acero B - 4” concrete slab / Bloque de cemento de 4”...
  • Page 7 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Stones Included In The Kit: 4” Wall Stones (568 Pieces) 6”x8” Cut Stone (2 Pieces) 4”x12” Cut Stone (23 Pieces) 4” 4”x8” Cut Stone (13 Pieces) 8”x8” Cut Stone (22 Pieces) 30”...
  • Page 8 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 Blocks Stand On End/ Soporte de 8 bloques en extremo 10” 10” Layer 1: Capa 1: Piece Count = (47) Olde English Wall Stones Numero de Piezas = (47) Piedras de Olde Ingles Pared Mark a line 4”...
  • Page 9 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 2: Capa 2: Piece Count = (38) Olde English Wall Stones, (2) Numero de Piezas = (38) Piedras de Olde Ingles 6x8 Cut Stones Pared, (2) Piedras Cortadas 6x8...
  • Page 10 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 3: Capa 3: Piece Count = (39) Olde English Wall Stones Numero de Piezas = (39) Piedras de Olde Ingles Pared Apply concrete adhesive and install wall stones Instalacion de la pared de piedra de acuerdo a la according to the photo.
  • Page 11 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4 X 12 4 X 12 4 X 12 2” overhang 4” overhang 2” overhang Layer 4: Capa 4: Piece Count = (42) Olde English Wall Stones, (1) Numero de Piezas = (42) Piedras de Olde Ingles...
  • Page 12 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 4-A: Firebox Placement Capa 4-A: Colocacion de la Caja de Fuegos Install the firebox unit 20” from the front of Instale la unidad 20” de la caja de fuegos del layer 4 and 17 5/8”...
  • Page 13 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 4-B: Capa 4-B: Remove firebox plate top support with a Phillips Retire el soporte del fog n placa superior con un screwdriver. destornillador de estrella.
  • Page 14 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 5: Capa 5: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 15 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 6: Capa 6: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 16 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 7: Capa 7: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 17 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 8: Capa 8: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 cut stone Pared, (1) Piedra Cortada 8x8...
  • Page 18 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 9: Capa 9: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 19 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 10: Capa 10: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 20 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 11: Capa 11: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 21 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 8 X 8 Layer 12: Capa 12: Piece Count = (20) Olde English Wall Stones, (1) Numero de Piezas = (20) Piedras de Olde Ingles 8x8 Cut Stone Pared, (1) Piedra Cortada 8x8...
  • Page 22 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 56” Lintel 56” Lintel Layer 12-A: Lintel Placement Capa 12-A: Colocacion de Dintel Install (2) 56” lintels as shown in the photo. Instale (2) 56” dinteles según las indicaciones de la foto.
  • Page 23 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4 X 12 4 X 12 4 X 8 4 X 12 Layer 13: Capa 13: Piece Count = (17) Olde English Wall Stones, (1) Numero de Piezas = (17) Piedras de Olde Ingles...
  • Page 24 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4 X 12 4 X 12 4 X 12 4 X 8 Layer 14: Capa 14: Piece Count = (17) Olde English Wall Stones, (1) Numero de Piezas = (17) Piedras de Olde Ingles...
  • Page 25 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 14-A: Lintel Placement Capa 14-A: Colocacion de la Lenteja. Install (4) 30” lintels as shown in the photo. Instale (4) 30” dinteles según las indicaciones de la foto.
  • Page 26 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4 X 12 A-Cut A-Cut B-Cut Layer 15: Capa 15: Numero de Piezas = (20) Piezas de Olde Ingles Piece Count = (20) Olde English Wall Stones, (3) pared, (3) las piedras talladas 4x12, (2) "A" pie- 4x12 Cut Stones, (2) “A”...
  • Page 27 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit B-Cut A-Cut A-Cut Layer 16: Capa 16: Piece Count = (21) Olde English Wall Stones, (2) Numero de Piezas = (21) Piedras de Olde Ingles 4x12 Cut Stones, (2) “A” Cut Stones, (1) “B” Cut...
  • Page 28 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4” Overhang 4” Overhang 4 X 8 4 X 12 8 X 8 8 X 8 4 X 8 4 X 12 4” Overhang Layer 17: Capa 17: Piece Count = (31) Olde English Wall Stones, (2)
  • Page 29 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 4 X 12 4 X 12 8 X 8 8 X 8 8 X 8 4 X 8 4 X 8 Layer 18: Capa 18: Piece Count = (26) Olde English Wall Stones, (3)
  • Page 30 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Flush 4 X 12 4 X 12 6” 6” Flush Layer 19: Capa 19: Piece Count = (22) Olde English Wall Stones, (2) Numero de Piezas = (22) Piedras de Olde Ingles...
  • Page 31 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Flush 6” 6” Flush Layer 20: Capa 20: Piece Count = (16) Olde English Wall Stones, (3) Numero de Piezas = (16) Piedras de Olde Ingles 8x8 Cut Stones, (2) 4x8 Cut Stones...
  • Page 32 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Flush 4” 4” Flush Layer 21: Capa 21: Piece Count = (14) Olde English Wall Stones, (2) Numero de Piezas = (14) Piedras de Olde Ingles 4x12 Cut Stones...
  • Page 33 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 2” Step-in 6” 6” 2” Step-in Layer 22: Capa 22: Piece Count = (10) Olde English Wall Stones Numero de Piezas = (10) Piedras de Olde Ingles Pared Apply concrete adhesive and install the wall stones and cut stones according to the photo.
  • Page 34 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 23: Capa 23: Piece Count = (8) Olde English Wall Stones, (2) Numero de Piezas = (8) Piedras de Olde Ingles 8x8 Cut Stone, (2) 4x8 Cut Stones...
  • Page 35 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 24: Capa 24: Piece Count = (10) Olde English Wall Stones Numero de Piezas = (10) Piedras de Olde Ingles Pared Apply concrete adhesive and install the wall stones and cut stones according to the photo.
  • Page 36 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 25: Capa 25: Piece Count = (8) Olde English Wall Stones, (2) Numero de Piezas = (8) Piedras de Olde Ingles 8x8 Cut Stones, (2) 4x8 Cut Stones...
  • Page 37 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Layer 26: Capa 26: Piece Count = (10) Olde English Wall Stones Numero de Piezas = (10) Piedras de Olde Ing;es Pared Apply concrete adhesive and install the wall stones and cut stones according to the photo.
  • Page 38 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit 2” Overhang 2” Overhang 2” Overhang 2” Overhang 2” Overhang 2” Overhang Layer 27: Chimney Cap Capa 27: Casquillo de Chimenea Piece Count = (12) Olde English Wall Stones, (2)
  • Page 39 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Chase flashing • El destellar de la persecución Chase flashing with collar facing up. Persecucion que destella con el revestimiento del collar para arriba.
  • Page 40 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Capa 28: Layer 28: Una vez que se ha centrado la chimenea, tome la Once the chimney has been centered, take the persecución que destella con el collar para arriba chase flashing with the collar up and slide it on y deslícela encendido hacia la manga del casquillo...
  • Page 41 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Once you have the termination cap sleeved into the chimney section, you can apply silicone between the final layer of block and the chase flashing to prevent any water or foreign material from entering the chimney cavity.
  • Page 42 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Facing Lintel With Granite Tile: In your fireplace kit you will find 5 pieces of 8” x 8” granite tile. The granite is to be applied to the face of the concrete lintel (polished side facing out) at the top of the fire box using concrete adhesive.
  • Page 43 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit Apply concrete adhesive being careful not to put too much adhesive to the point it migrates out of the joints between the tile. Firmly press all tiles into position. It will be necessary to brace up the bottom of the tile to prevent them from moving while the adhesive is curing.
  • Page 44 Cambridge Pre-Packaged / Pre-Cut 2011 Olde English Wall Outdoor Fireplace Kit VIEWS RIGHT FRONT LEFT BACK...
