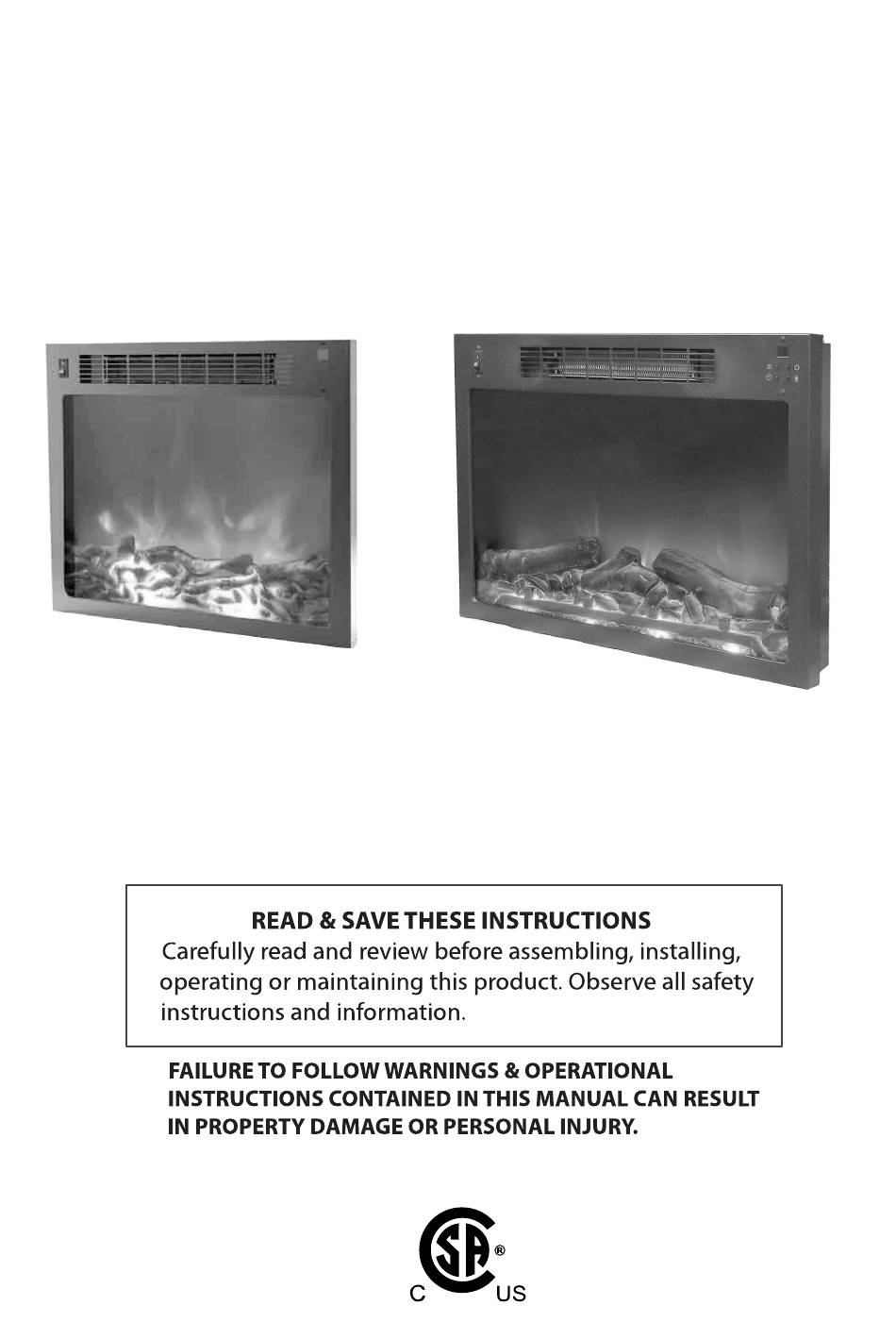

- Page 1 Installation and Operation Instructions ELECTRIC FIREPLACE XINS2318-1 XINS2318-2LOG...
-
Page 2: Table Of Contents
Important Safety Instructions Listing Approvals Operating Instructions Control Buttons/FunctionS Remote Control Maintenance Troubleshooting Installation Inserting firebox... -
Page 3: Important Safety Instructions
CONSUMER SAFETY INFORMATION Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electric shock, fire property damage, personal injury and will void the warranty. Requires the use of Fireplace Mantel. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this appliance. - Page 4 12. All electrical heaters have hot and arching or sparking parts inside.Do not use in areas where gasoline,paint,or flammable liquids are used or stored or where the appliance will be exposed to flammable vapors. 13. Avoid using the appliance with an extension cord.Extension cords may overheat and cause a risk of fire.
-
Page 5: Listing Approvals
LISTING APPROVALS This heater has been tested in accordance with the CSA Standards. Model Number: XINS2318-1 XINS2318-2LOG Voltage: 120V AC, 60Hz Watts: MAX 1500W Length: 23.0 Height: Depth: 17.1... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Read all instructions and warning prior to operating the appliance. Ensure that all control are in the "OFF" position before plugging the appliance into a properly grounded electrical outlet. The main switch is located at the top left corner on the front(see Figure 1) The main control buttons are located at the top right corner on the front(see Figure 1) Control Buttons Master Power Button... -
Page 7: Control Buttons/Functions
CONTROL BUTTONS/FUNCTIONS Control Buttons Master Power Button LOCATION The Master Power Button is located in the top left hand corner of the front insert. The control buttons are located in the top right corner of the front of the insert. DISPLAY WINDOWS HEAT ER SETTINGS This fireplace insert consists of a fan forced electric heater with two heater settings,800... -
Page 8: Remote Control
REMOTE CONTROL Remote Control Requires Two AAA Batteries Included. A master button is located on the top left hand side of the insert. This button must be turned ‘On’ to operate remote control. Turn button to ‘Off’ to disable the use of the remote control. -
Page 9: Maintenance
MAINTENANCE WARNING: Before attempting to perform any maintenance on this appliance, turn all controls to the "OFF" position and the unplug. llow Allow the appliance to be "OFF" for at least 10 1 minutes before performing any maintenance in order to allow all components to cool properly. Flame effect/Light bulb replacement: Allow the electric fireplace insert to cool before attempting to replace light bulbs. -
Page 10: Troubleshooting
Care and maintenance: Turn heater OFF and unplug from electrical outlet before any cleaning or maintenance is performed. Keep combustible materials such as furniture,pillows,bedding,papers,clothing,and curtains at least 3 feet(0.9meter) away from fireplace. Use a vacuum or duster to keep heat and vent area clean from dust and dirt. The exterior of the fireplace should be cleaned with a damp cloth or duster. -
Page 11: Installation
INSTALLATION PLANNING INSTALLATION To avoid scratching the finish, assemble the product on a soft,non-abrasive surface,such as carpet or cardboard. Assembly of this product may require more than one person. TOOLS REQUIRED Safety Goggles Phillips screwdriver HARWARE INCLUDED Note: Hardware not shown to actual size. PART DESCRIPTION QUANTITY... -
Page 12: Inserting Firebox
Assembly (continued) Attach the metal brackets(S) to all three □ sides of the firebox and two sides of the mantel to ensure that your firebox does not move around as you use it. all three trims attach to the firebox by inserting and tightening two screws(PP).
