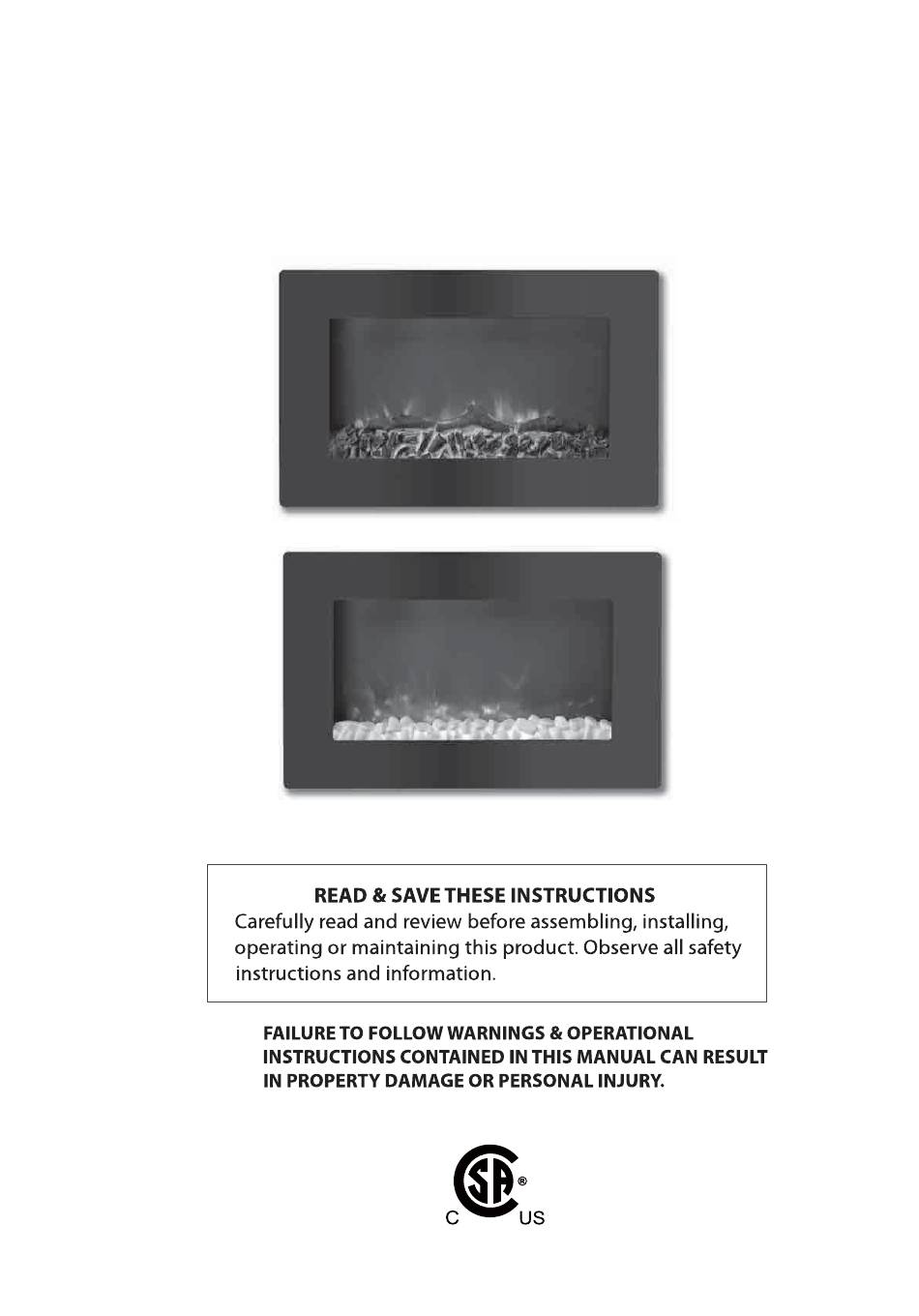

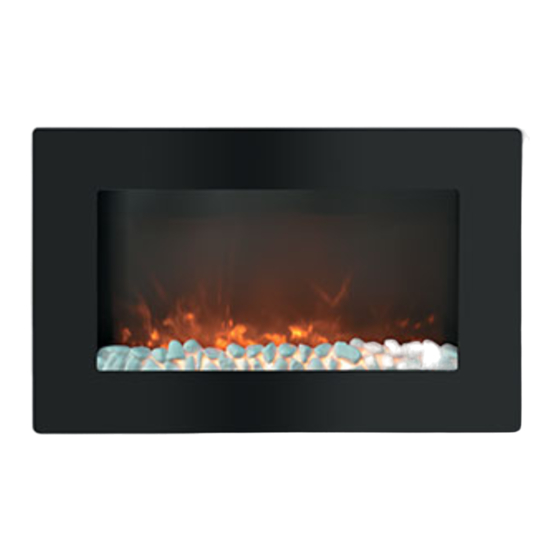

- Page 1 Installation and Operation Instructions ELECTRIC FIREPLACE X30WMEF1BLK X30WMEF1WHT REV18-01...
- Page 3 Important Safety Instructions Listing Approvals Product Dimensions Locating Fireplace Unpacking and Testing Fireplace Grounding Instructions 10-11 Installation Finishing Checklist Operating Instructions 12-13 Replacing The Rock/Log Set And Light Bulbs Maintenance Trouble shooting...
- Page 4 1 Prior to plugging your heater into an electrical outlet, verify that the house circuit breakers for the outlet are 2 The heater may emit a slight, harmless odor when first used. This odor is normal and it is caused by the initial heating of internal heater elements and will not occur again.
-
Page 5: Important Safety Instructions
IMPORT ANT SAFETY INSTRUCTIONS When using this electric fireplace, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1 .Read all instructions before using this electric fireplace. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 6 IMPORTANT SAFETY INSTRUCTIONS 11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage the heater. 12. To prevent possible fire, do not block air intakes in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- Page 7 This heater has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room heaters in the United States and Canada. If you need assistance during installation, please contact your local dealer. Note: This heater X30WMEF1BLK must be X30WMEF1WHT electrically wired and grounded in...
- Page 8 13.9" Mounting Bar...
-
Page 9: Locating Fireplace
LOCATING FIREPLACE WARNING: Dueto high temperatures,this electric fireplace should be located out of traffic. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (o.9m) from top,front and sides of heater. WARNING: Never locate this electric fireplace where it may fall into a bathtub or other water container. - Page 10 Carefully remove the unit from the box. Prior to installing the unit, test to make sure the unit operates properly. To do this, plug the unit's power supply cord into a conveniently located 120-Volt grounded outlet. This insert is for use with 120 Volts. The cord has a plug as shown in (A) of Figure 2 given below.
- Page 11 WARNING: RISK OF FIRE! The power cord must not be pinched or against a sharp edge. Secure cord to avoid tripping or snagging to reduce risk of fire, electric shock or personal injury. Do not run cord under carpeting. Do not cover cord with throw rugs, runned or the like.
- Page 12 Grounding Methods This fireplace must be mounted on a wall with WARNING: Heater vents (see a height above the floor Figure 1，page 8) on this between 0.5M (1.64 electric fireplace cannot, in Feet) and 2.5M (8.2 any way, be covered as it may Feet).
- Page 13 >Power supply service must be completed prior to finishing to avoid reconstruction. >Heater vents and air openings cannot be covered in any circumstances. Once the unit has been properly connected to a grounded electrical outlet, it is ready to operate. Note: Ensure the house circuit breakers for the power supply are turned on.
- Page 14 The manual controls are located on the left side of the fireplace. You have the following controls: 1. Power ON/OFF: Power to the unit 2. Flame brightness controls: Allows you to adjust the flame to suit your mood. Press increase flame brightness and to decrease flame brightness.
- Page 15 Replacing The Rock/Log Set And Light Bulbs TO CHANGE LOG/ROCK SET (NOTE: MAKE SURE FIREPLACE IS TURNED OFF AND HAS BEEN UNPLUGGED FROM ELECTRICALOUTLETBEFOREATTEMPTINGTOCHANGETHELOG/ROCKSET): 1. Place fireplace on a flat, level surface (FIG 1). 2. Remove 3 screws located on each side of glass face of fireplace (FIG 2 and FIG 3). 3.
- Page 16 Preparation for Maintenance WARNING:Always disconnect the power and allow the electric fireplace to cool completely before performing any cleaning, maintenance or relocation of this electric fireplace. Turn all controls to OFF and remove plug from outlet or turn off the house circuit breaker to electric fireplace receptacle. Most halogen light bulbs are rated to last approximately 1800 hours.
- Page 17 WARNING: Turn off the appliance, unplug and let cool for at least 10 minutes before attempting attempting to service. Only a qualified professional should attempt to service or repair the appliance. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1.No power, no indicator lights Insert was not plugged in Make sure that power cord is plugged into 120V outlet...
