Summary of Contents for CAMBRIDGE X35WMEF

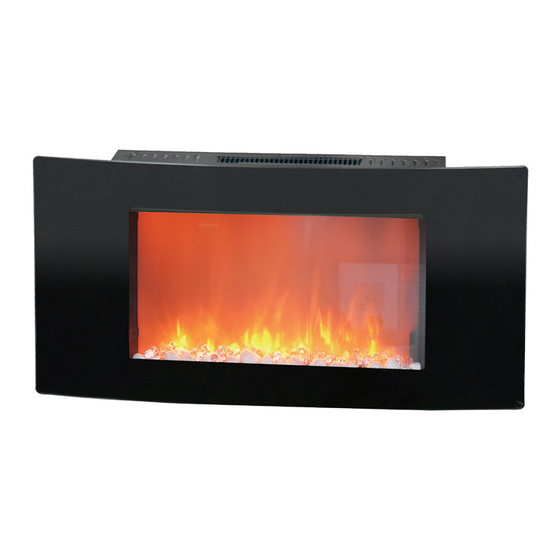

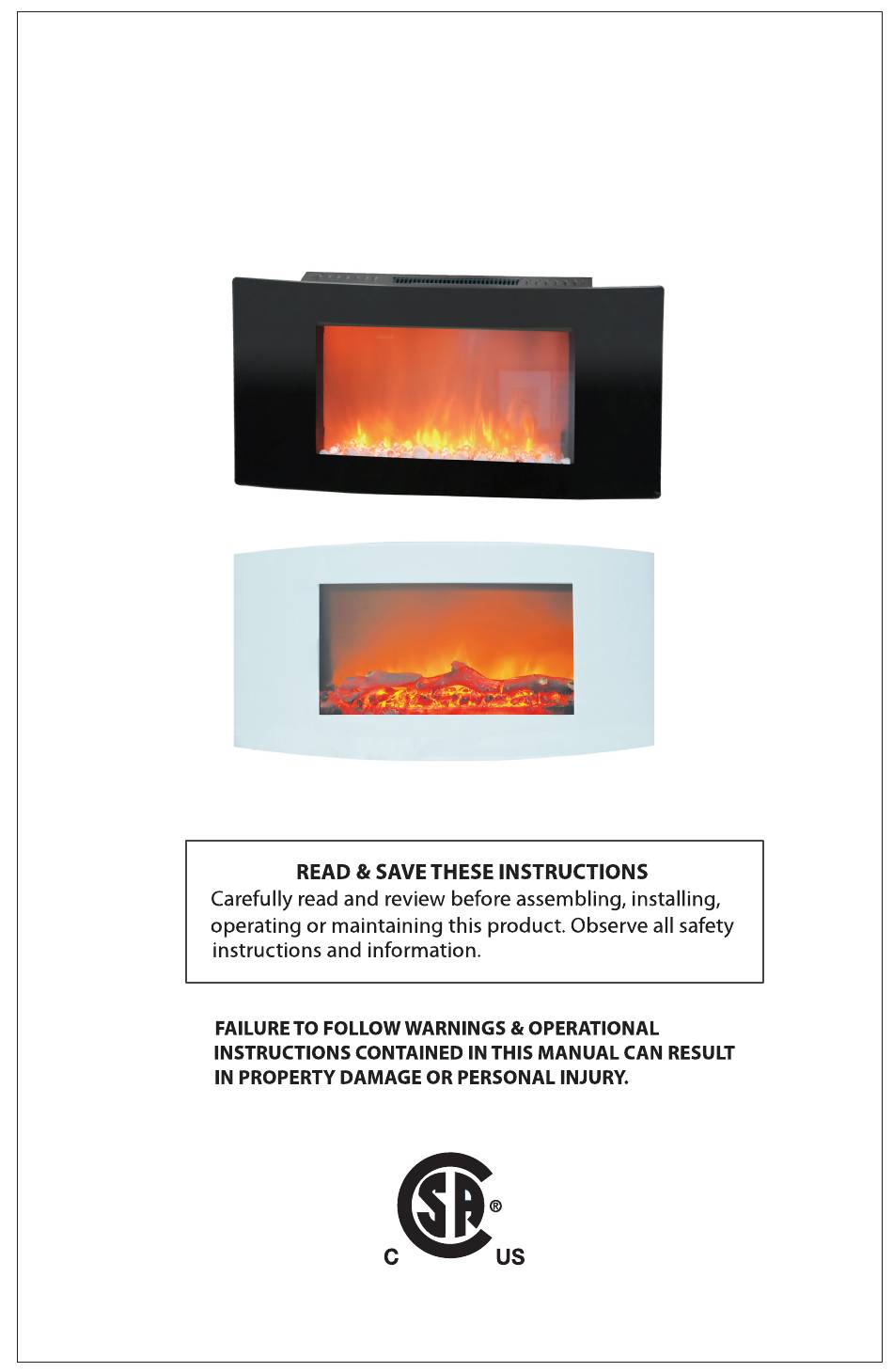

- Page 1 Installation and Operation Instructions ELECTRIC FIREPLACE X35WMEF...
-
Page 3: Table Of Contents
Important Safety Instructions Listing Approvals Product Dimensions Locating Fireplace Unpacking and Testing Fireplace Grounding Instructions 11-12 Installation Finishing Ckecklist Operating Instructions 13-14 Replacing The Rock/Log Set Troubleshooting... - Page 4 1. Prior to plugging your heater into an electrical outlet, verify that the house circuit breakers for the outlet are 2. The heater may emit a slight, harmless odor when first used. This odor is normal and it is caused by the initial heating of internal heater elements and will not occur again.
-
Page 5: Important Safety Instructions
IMPORT ANT SAFETY INSTRUCTIONS When using this electric fireplace, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1 . Read all instructions before using this electric fireplace. 2. - Page 6 IMPORTANT SAFETY INSTRUCTIONS 11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage the heater. 12. To prevent possible fire, do not block air intakes in any manner.
-
Page 7: Listing Approvals
This heater has been tested in accordance with the CSA Standards. X35WMEF ,60Hz... -
Page 8: Product Dimensions
Healll' Vents TOP VIEW (Do Not Cover) 35.0" ,---------.. ID 17.r. 5.5" '------ - - - FRONT VIEW SIDE VIEW BOTTOM VIEW ---- ------ 16" ..__ 1100100111001110011 I · · I Mounting Bar Mounting hole$ BACK VIEW Figure 1 Fireplace Dimensions... -
Page 9: Locating Fireplace
LOCATING FIREPLACE .,4 � WARNING: Due to high temperatures, this electric fireplace should be located out of traffic. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the front of the heater. WARNING: Never locate this electric fireplace where it may fall into a bathtub or other water container. -
Page 11: Installation
..4 � WARNING: RISK OF FIRE!The power cord must not be pinched or against a sharp edge. Secure cord to avoid tripping or snagging to reduce risk of fire, electric shock or personal injury. Do not run cord under carpeting. Do not cover cord with throw rugs, runner or the like. -
Page 13: Finishing Ckecklist
FINISHING CHECKLIST > Power supply service must be completed prior to finishing to avoid reconstruction. > Heater vents and air openings cannot be covered in any circumstances. OPERATING INSTRUCTIONS Once the unit has been properly connected to a grounded electrical outlet, it is ready to operate. Note: Ensure the house circuit breakers for the power supply are turned on. - Page 14 The manual controls are located on the left side of the fireplace. : s l 1. Power ON/OFF: Power to the unit 2. Flame brightness controls: Allows you to adjust the flame to suit your mood.Press increase flame brightness and to decrease flame brightness.You must press the button...
-
Page 15: Replacing The Rock/Log Set
Replacing The Rock/Log Set TO CHANGE LOG/ROCK SET (NOTE: MAKE SURE FIREPLACE IS TURNED OFF AND HAS BEEN UNPLUGGED FROM ELECTRICAL OUTLET BEFORE ATTEMPTING TO CHANGE THE LOG/ROCK SET): 1. Place fireplace on a flat, level surface (FIG 1). 2. Remove 3 screws located on each side of glass face of fireplace (FIG 2 and FIG 3). 3. -
Page 16: Troubleshooting
The remote takes 2 x AAA batteries...
