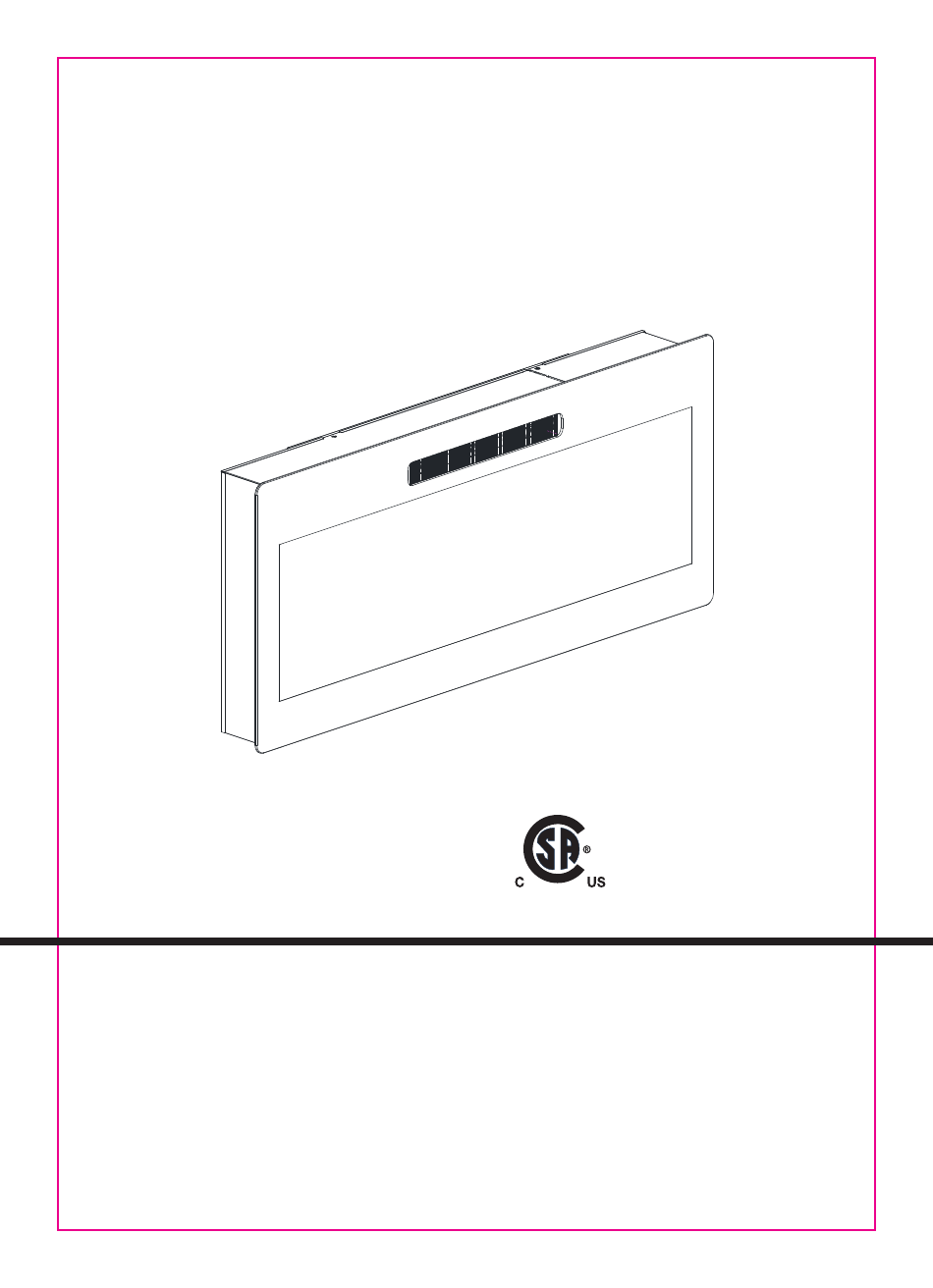

HOMEOWNERS OPERATING MANUAL
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD,
AND/OR INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN
ELECTRIC SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

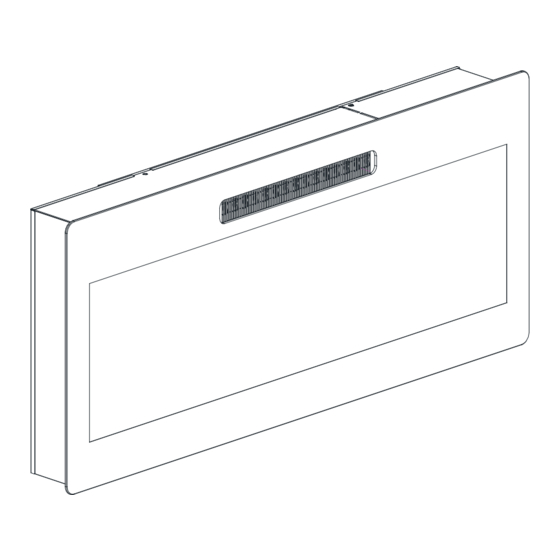

ELECTRIC FIREPLACE
MODELS：
261046
01
ZF36D03F
ZF42D03F
ZF50D03L
ZF60D03L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZF36D03F and is the answer not in the manual?

Questions and answers

Related Manuals for CAMBRIDGE ZF36D03F

Summary of Contents for CAMBRIDGE ZF36D03F

  • Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL ZF36D03F MODELS： ZF42D03F ZF50D03L 261046 ZF60D03L CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater.

  • Page 3: Package Contents

    PACKAGE CONTENTS CODE DESCRIPTION Fireplace Glass Front Mounting Bracket (Attached To The Fireplace Acrylic Crystals 1 Bag Hardware Screw Bag 1 Bag Remote Control Manual...

  • Page 4: Specifications

    SPECIFICATIONS Model NO. ZF36D03F ZF42D03F ZF50D03L ZF60D03L Dimension 36” x 4.2” x 16” 42” x 4.2” x 16” 50” x 4.2” x 18.6” 60” x 4.2” x 18.6” (W x D x H) Voltage 120 V 120 V 120 V...
  • Page 5 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...

  • Page 6: Installation (Wall Mounting)

    INSTALLATION (WALL MOUNTING) 1. Remove the mounting bracket from the back of the fireplace. 2. Attach the mounting bracket to a wall. NOTE: Wall anchor is not needed if the bracket is to be mount directly on the wall studs. 3.
  • Page 7 4. Place decorative crystals inside the fireplace. 5. Put the glass front panel on the fireplace. CAUTION: Careful when handling glass to prevent injury or damage. wall 6. Secure the glass front panel to the fireplace with the provided screws C. wall...

  • Page 8: Installation (In Wall)

    INSTALLATION (IN WALL) Cabinet - in / cm fireplace - in / cm Model Model ZF36D03F 33.6/85.3 15.8/40.2 4.9/12.4 ZF36D03F 33.1/84.1 15.4/39.2 3.8/9.7 ZF42D03F 39.1/99.4 15.4/39.2 3.8/9.7 ZF42D03F 39.6/100.6 15.8/40.2 4.9/12.4 ZF50D03L 47.1/119.7 18.1/46.0 3.8/9.7 ZF50D03L 47.6/120.9 18.4/46.7 4.9/12.4 ZF60D03L 57.1/145.1...
  • Page 9 2. Remove the Hang board from the back of the fireplace. NOTE: Screw back the 7 screws to the fireplace. 3. Plug into the power supply and push the fireplace into the cabinet. 4. Use supplied screws B to secure the fireplace to cabinet.
  • Page 10 5. Place decorative crystals inside the fireplace. 6. Put the glass front panel on the fireplace. Then secure the glass front panel to the fireplace with the provided screws C. CAUTION: Careful when handling glass to prevent injury or damage. CAUTION: After hanging the glass front panel, 1 minute to recheck the touch-panel is necessary.
  • Page 11 OPERATING INSTRUCTION Control Panel The control panel is located on the top right corner of the unit. To control the unit, touch any button to wake up the control panel. The power button will flash, and all other buttons will light up.
  • Page 12 Timer The TIMER has adjustable setting at range from 1 hour to 9 hours and OFF. As shown the following: 1h-2h-3h-4h-5h- 6h-7h-8h-9h-OFF. Once you have set the timer, and the timer is up, it will close all the functions and enter standby mode.

  • Page 13: Remote Control

    REMOTE CONTROL Power The Power Button turns the fireplace ON and OFF. Heat The Heat Button turns the heat ON and OFF. Press “+” or ”-” button to set the temperature. Flame The Flame Button turns the flame ON and OFF. Press “+” or ”-” button to set the flame color.

  • Page 14: Maintenance

    MAINTENANCE Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. The motors used on the fan and the flame generator assembly are prelubricated for extended bearing life and require no further lubrication.

  • Page 15: Year Limited Warranty

    1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

This manual is also suitable for:

Zf42d03fZf50d03lZf60d03l
