CONNECTION DIAGRAMS

Notes:
1. Do not use thermostat wire for any connection between indoor and outdoor units.
2. All connections between indoor and outdoor units must be as shown. The connections are sensitive to polarity.
3. On the 18k and 24k units, the "S" terminal "CONTROL" output is pulse DC with a potential AC voltage shock hazard.
CONNECTING CABLE
CONTROL
CONNECTING CABLE
CONNECTING CABLE

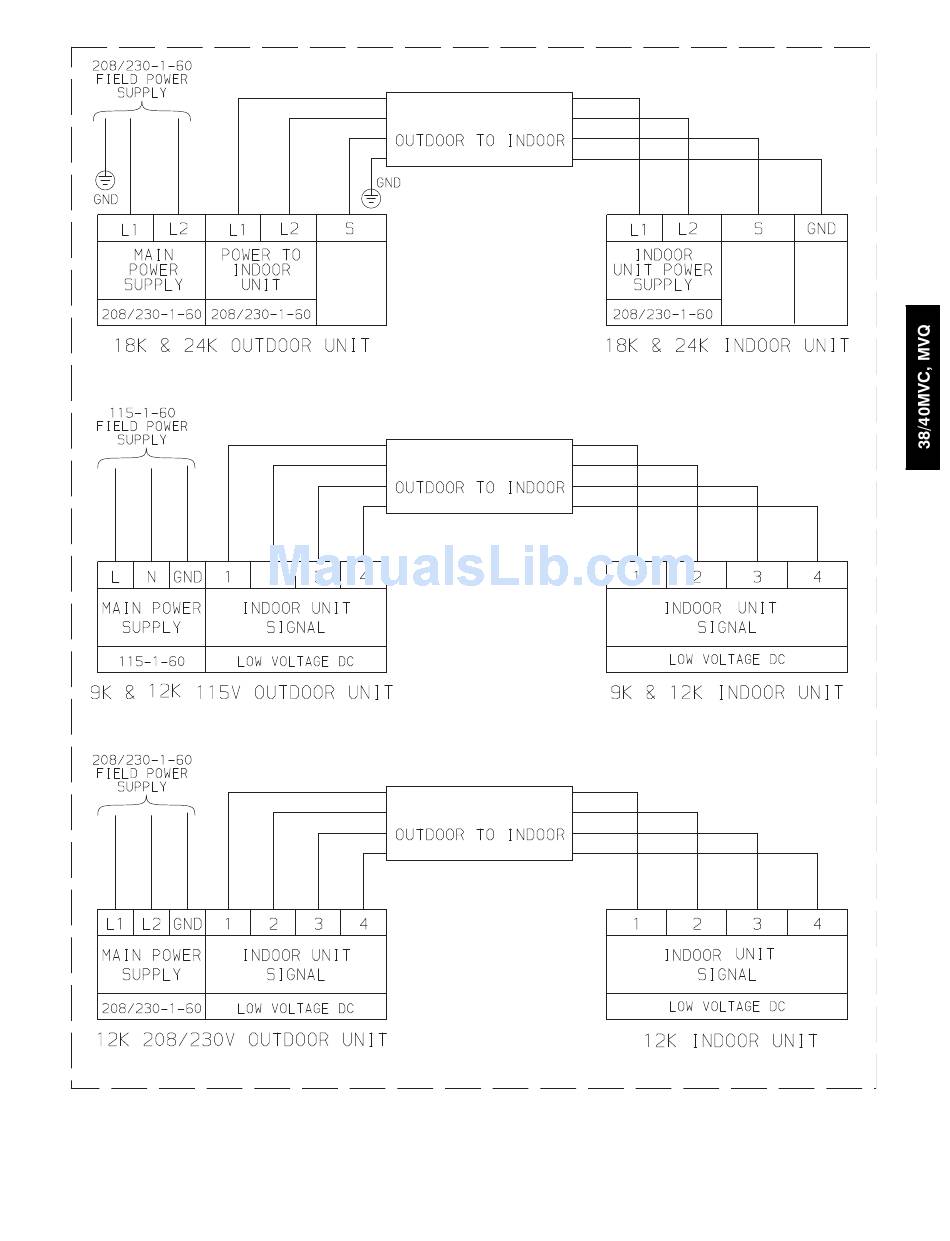

Fig. 13 --- Connection Diagrams
9
CONTROL
A07654
