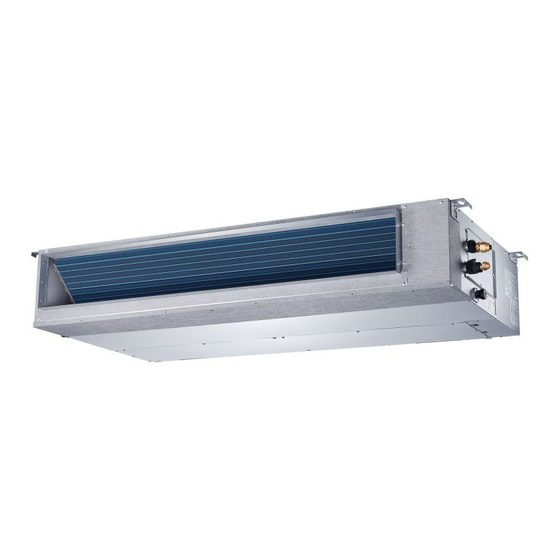

Ducted style ductless system
Hide thumbs Also See for 40MBDQ:
Table of Contents

Advertisement

Quick Links

40MBDQ
Ducted Style Ductless System
Sizes 09 to 58
A NOTE ABOUT SAFETY ........................................................................................................................2
GENERAL...................................................................................................................................................2
PARTS LIST................................................................................................................................................3
DISPLAY PANELS (SHIPPED INSIDE THE CONTROL BOX) ............................................................3
WIRELESS REMOTE CONTROL FUNCTION BUTTONS ....................................................................4
REMOTE CONTROL .................................................................................................................................6
REMOTE CONTROL FUNCTIONS..........................................................................................................8
CLEANING, MAINTENANCE AND TROUBLESHOOTING ..............................................................10
TROUBLESHOOTING.............................................................................................................................11
Please read this Owner's Information Manual carefully before installing and using this appliance and
keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new equipment in the spaces
provided. This information, along with the installation data and dealer contact information, will be
helpful should your system require maintenance or service.
UNIT INFORMATION
Model # _______________________________
Serial # ________________________________
INSTALLATION INFORMATION
Date Installed ___________________________
Owner's Manual

TABLE OF CONTENTS

NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: ______________________
Address:_____________________________
Phone Number:________________________
Technician Name:______________________
Specifications subject to change without notice.
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40MBDQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carrier 40MBDQ

Summary of Contents for Carrier 40MBDQ

  • Page 1: Table Of Contents

    40MBDQ Ducted Style Ductless System Sizes 09 to 58 Owner’s Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY ........................2 GENERAL..............................2 PARTS LIST..............................3 DISPLAY PANELS (SHIPPED INSIDE THE CONTROL BOX) ............3 WIRELESS REMOTE CONTROL FUNCTION BUTTONS ..............4 REMOTE CONTROL ..........................6 REMOTE CONTROL FUNCTIONS......................8...

  • Page 2: A Note About Safety

    The control can be secured to a surface when used with the mounting bracket provided. Wired Remote Control (Optional) Refer to the Wired Controller manual. 24V Interface (Optional) Allows the control of the Ductless System with a third party thermostat. Specifications subject to change without notice. OG-40MBDQ-04...

  • Page 3: Parts List

    Wired Controller Wireless Remote DISPLAY PANELS (SHIPPED INSIDE THE CONTROL BOX) Manual button LED display Operation indicator Infrared receiver Alarm indicator Timer indicator PRE-DEF (pre-heating/defrost) indicator Fig. 2 — IR (Infrared) Receiver Display Panel OG-40MBDQ-04 Specifications subject to change without notice.

  • Page 4: Wireless Remote Control Function Buttons

    Fig. 3 — Remote Controller Function Buttons NOTE: New remote controller starting on production of week 41 year 2020 (serial number 4116V10001). For advanced functions, refer to the RG57F3(B)/BGEFU1 Wireless Remote Controller’s Service Manual. Specifications subject to change without notice. OG-40MBDQ-04...
  • Page 5 (Model dependent) This fan speed can not be Timer setting range: adjusted in AUTO or DRY 0-24 hours mode. This display is blank when operating in FAN mode. Fig. 4 — Wireless Remote Display OG-40MBDQ-04 Specifications subject to change without notice.

  • Page 6: Remote Control

    • Preset set point: 76°F (24°C) 5. When batteries are removed, the remote control erases all programmed settings. The control must be reprogrammed after the • Fan speed: AUTO insertion of new batteries. Specifications subject to change without notice. OG-40MBDQ-04...
  • Page 7 3. Press ON/OFF to start the unit. 1. Press MODE to select the HEAT mode.   2. Set your desired temperature using TEMP or TEMP 3. Press FAN to select the fan speed in the range of AU-100%. OG-40MBDQ-04 Specifications subject to change without notice.

  • Page 8: Remote Control Functions

    NOTE: When the unit is on, the fan runs continuously in cooling or heating. When in heating, there might be situations where the fan will slow down or shut off to prevent cold blow. Specifications subject to change without notice. OG-40MBDQ-04...
  • Page 9 If the power fails while the unit is operating, the unit stores the automatically at the set TIME OFF and turns on at the set TIME operating condition, and the unit will start operation automatically under those conditions when the power is restored. OG-40MBDQ-04 Specifications subject to change without notice.

  • Page 10: Cleaning, Maintenance And Troubleshooting

    105°F (40.6°C) and do not pour water onto the fan coil. Do not use abrasive or petroleum based cleaners as they may damage the front panel. Specifications subject to change without notice. OG-40MBDQ-04...

  • Page 11: Troubleshooting

    • The remote control buttons do not work. • The unit continually trips fuses or circuit breakers. • A foreign object or water enters the air conditioner. • Other abnormal situations. OG-40MBDQ-04 Specifications subject to change without notice.
  • Page 12 Copyright 2020 CAC / BDP D 3300 Riverwood Parkway Atlanta GA, 30339 Edition Date: 12/20 Catalog No. OG-40MBDQ-04 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Replaces: OG-40MBDQ-03...
