CLEARANCES - - INDOOR
CLEARANCES - - OUTDOOR
D
UNIT
A
B
C
D
E
CEILING
6" (0.15m) min.
5"
(0.13m)
min.
6'
(1.8m)
FLOOR

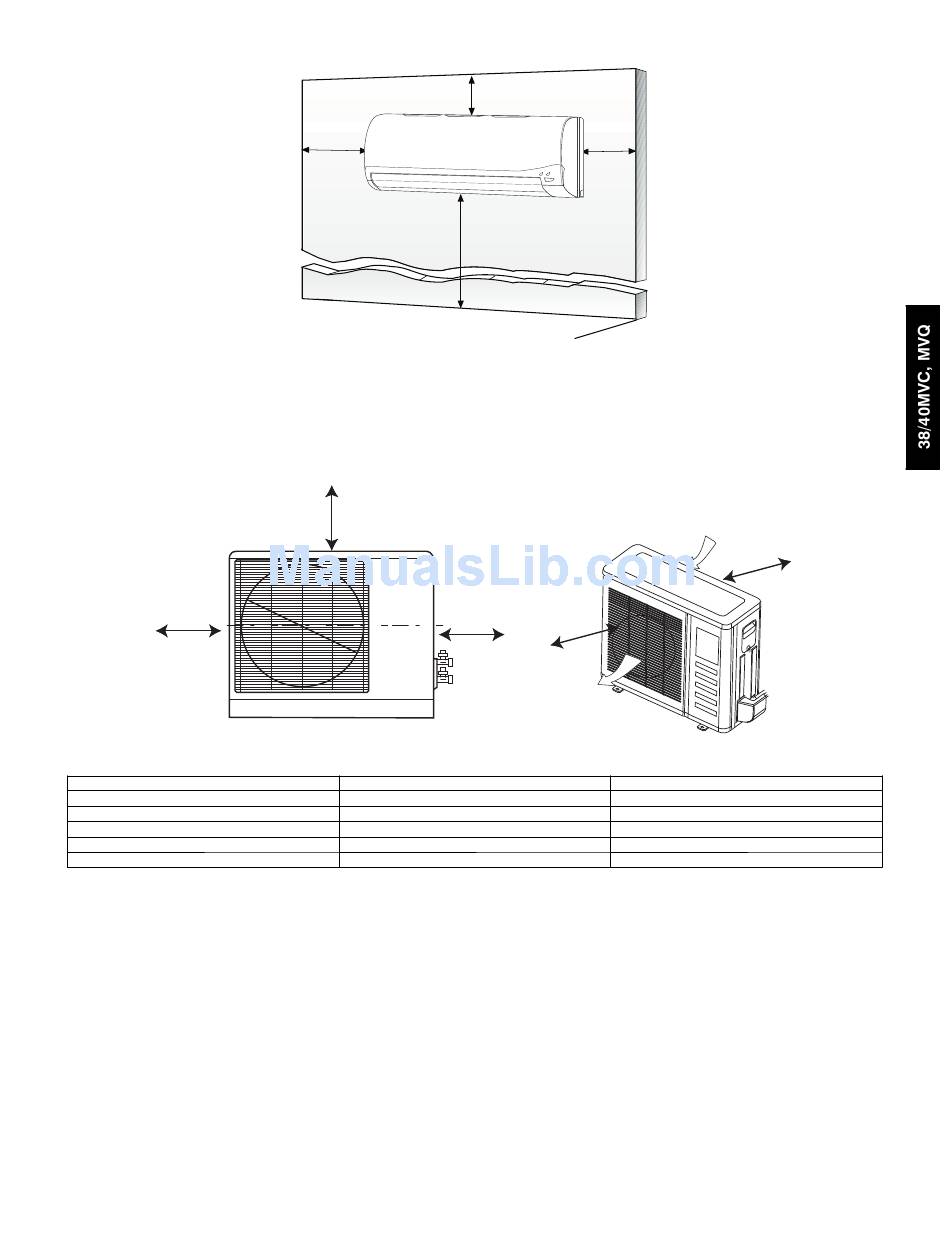

Fig. 3 --- Indoor unit clearance
A
B
9k and 12k in. (mm)
24 (610)
24 (610)
24 (610)
6 (152)
12 (305)
Fig. 4 --- Outdoor Unit Clearance
5"
(0.13m)
min.
C
Air-outlet
5
A07891
Air-inlet
E
A07894
18k and 24k in. (mm)
24 (610)
36 (914)
24 (610)
6 (152)
12 (305)
