DISASSEMBLY

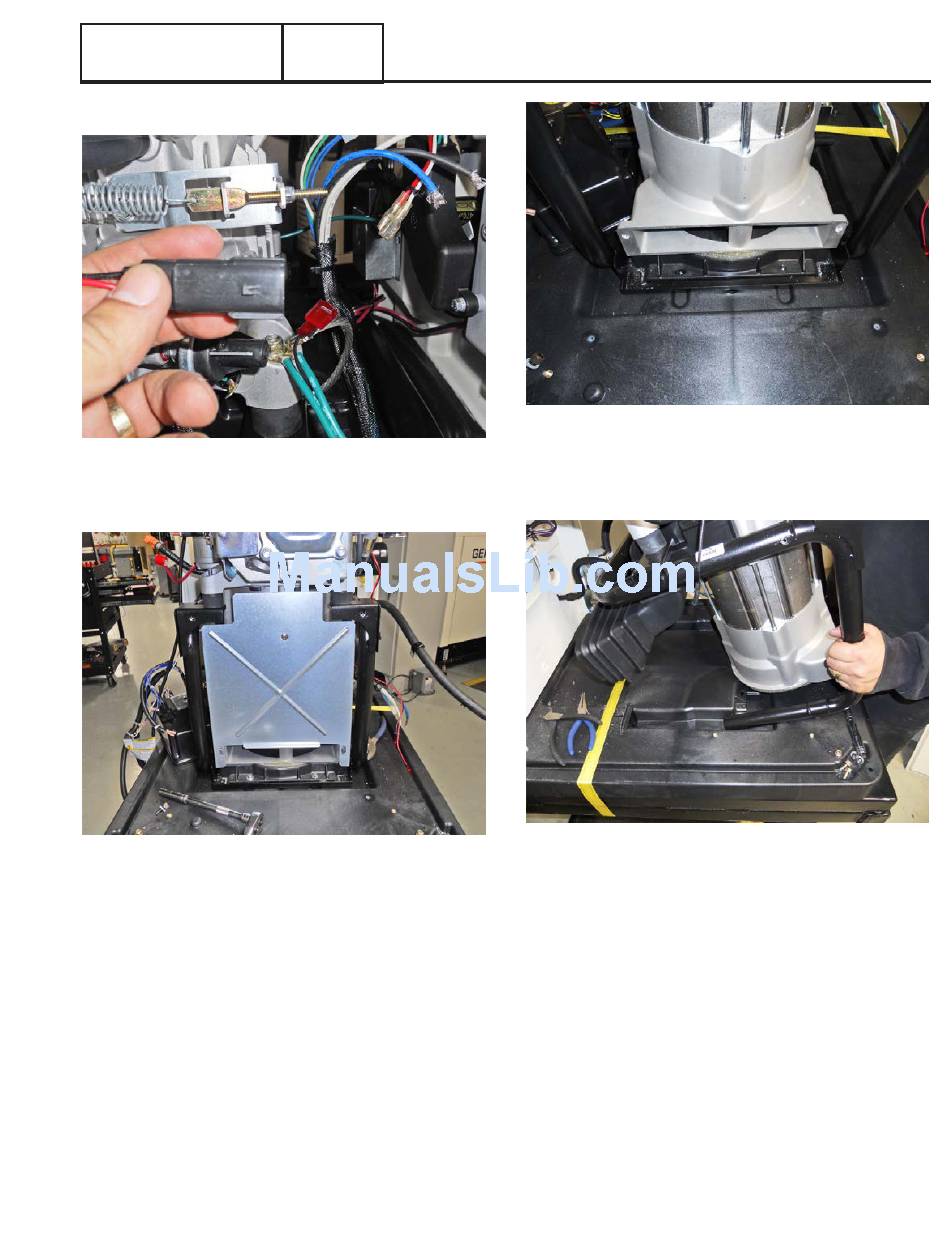

13. Disconnect the choke solenoid.
Figure 78.
14. Using an 8mm socket remove the remaining bolt.
Figure 79.
15. Using a 10mm socket remove the two bolts connecting
support to the base.
PART 5
Figure 80.
16. Carefully slide out the support structure from the base
and position assembly horizontally.
Figure 81.
17. Using a 13mm wrench remove the rotor bolt from the
alternator.
Section 5.1
Major Disassembly
