DISASSEMBLY

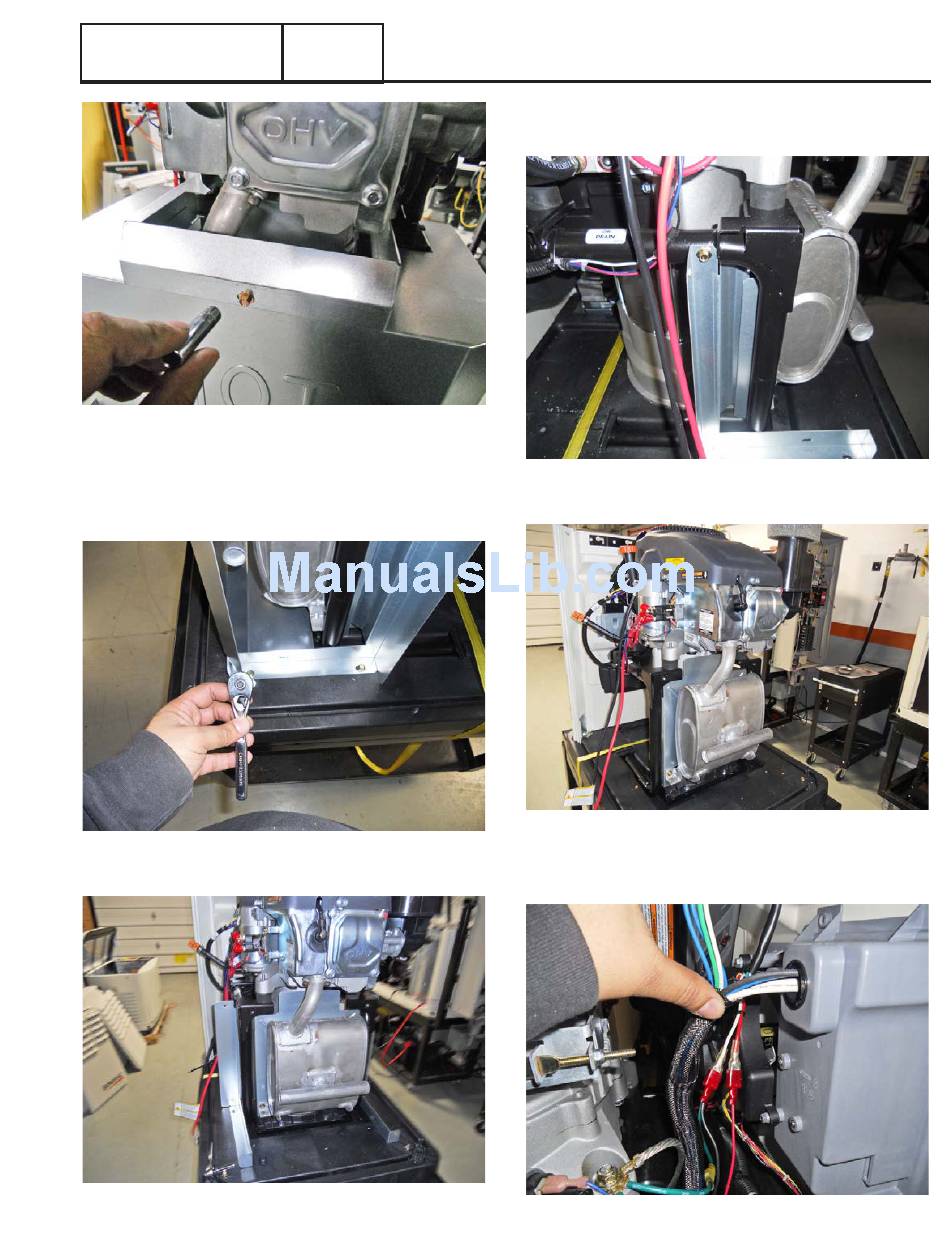

Figure 67.
6. Using a 10mm socket remove the three (3) bolts holding
the exhaust housing from the engine support and base.
Refer to Figure 68 and 69.
Figure 68.
Figure 69.
PART 5
7. Using a 10mm socket remove the remaining exhaust
enclosure pieces on each side.
Figure 70.
Figure 71.
8. Disconnect the red and black brush wires.
Figure 72.
Section 5.1
Major Disassembly
Page 83
