Summary of Contents for Baumatic BTC6720BL

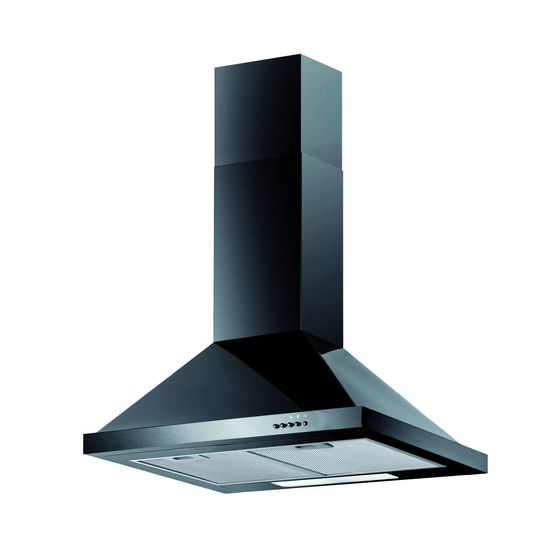

- Page 1 BTC6720BL/SS, F60.2BL/SS, F70.2BL/SS, F90.2BL/SS, F100.2BL/SS, F110.2BL/SS Cooker hood...
- Page 2 User Manual for your Baumatic BTC6720BL/SS/W, F60.2BL/SS 60 cm cooker hood F70.2BL/SS 70 cm cooker hood F90.2BL/SS 90 cm cooker hood F100.2BL/SS 100 cm cooker hood F110.2BL/SS 110 cm cooker hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.
-
Page 3: Table Of Contents
BTC6720BL/SS/W F60.2BL/SS F70.2BL/SS F90.2BL/SS F100.2BL/SS F110.2BL/SS Optional extras (all models) Using your Baumatic cooker hood 14 - 15 Before first use To use your cooker hood 14 - 15 Cleaning your Baumatic cooker hood 15 - 16 The grease filters... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line. - Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note: Your cooker hood is designed to remove cooking odours from the room and not steam. o Warning - Always ensure that the cooker hood been...
-
Page 8: Specifications Of Your Cooker Hood
Specifications of your cooker hood BTC6720BL/SS/W PRODUCT DIMENSIONS Height: 645* mm – 1025 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel cooker hood is fitted with: o Integrated tangential motor... -
Page 9: F60.2Bl/Ss
F60.2BL/SS PRODUCT DIMENSIONS Height: 700* mm – 1080 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel cooker hood is fitted with: o Integrated tangential motor o Push button control operation o 3 Speeds o 2 Washable metallic grease filters o 2 lights... -
Page 10: F70.2Bl/Ss
F70.2BL/SS PRODUCT DIMENSIONS Height: 700* – 1080 mm Width: 700 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 165 mm x 222 mm Your stainless steel cooker hood is fitted with: o Integrated tangential motor o Push button control operation o 3 Speeds o 2 Washable metallic grease filters o 2 lights... -
Page 11: F90.2Bl/Ss
F90.2BL/SS PRODUCT DIMENSIONS Height: 700* mm – 1080 mm Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel cooker hood is fitted with: o Integrated tangential motor o Push button control operation o 3 Speeds o 3 Washable metallic grease filters o 2 lights... -
Page 12: F100.2Bl/Ss
F100.2BL/SS PRODUCT DIMENSIONS Height: 700 mm* – 1080 mm Width: 1000 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel cooker hood is fitted with: o Integrated axial motor o Push button control operation o 3 Speeds o 3 Washable aluminium grease filters o 2 lights... -
Page 13: F110.2Bl/Ss
F110.2BL/SS PRODUCT DIMENSIONS Height: 700 mm* – 1080 mm Width: 1100 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel cooker hood is fitted with: o Integrated axial motor o Push button control operation o 3 Speeds o 4 Washable aluminium grease filters o 2 lights... -
Page 14: Optional Extras (All Models)
DK5 1 Metre length Ducting Kit 125 mm Ø. DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling included. o Available from the Baumatic Spares Department. Using your Baumatic cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. -
Page 15: Cleaning Your Baumatic Cooker Hood
YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING,... -
Page 16: The Grease Filters
The grease filters o Your cooker hood is fitted with grease filters, which help to absorb grease particles and protect your kitchen and furniture from greasy residues. o These metallic filters may become inflammable if you allow them to get saturated with this greasy residue. o To prevent this fire hazard, the filters should be cleaned regularly. -
Page 17: Changing A Light Bulb
o Refit the grease filters once they have dried. o IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 18: Fitting The Carbon Filters (St1 Carbon Filters)
o If the lights still do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance. o Refit the grease filters. Fitting the carbon filters (ST1 carbon filters) If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. -
Page 19: Fitting The Carbon Filters (S1 Carbon Filters)
o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage. -
Page 20: Installation
o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage. -
Page 21: Before Beginning Installation
We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in the mains lead are coloured in accordance with the following UK code: Blue = Neutral, Brown = Live, Green/Yellow = Ground If you only find two wires in the main’s lead (blue and brown), then neither must be connected to the earth terminal. -
Page 22: Installing Your Cooker Hood
o Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on to it. o Rawl plugs are provided to secure the hood to most types of walls and ceilings. - Page 23 2a) The support screw holes are indicated by figure A in this drawing anchoring screw holes are indicated by figure B. 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
- Page 24 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.
-
Page 25: Connecting To External Ducting
Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours. - Page 26 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
- Page 27 12) Using a 6 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied.
-
Page 28: Completing The Installation
Completing the installation o If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 18 - 20. o The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. -
Page 29: Troubleshooting
Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. - Page 30 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 31: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lípovà 665 6 Bennet Road, 460 01 Liberec 4 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
