- Page 1 BTC6510GL Cooker Hood Get user manuals: See SafeManuals.com...

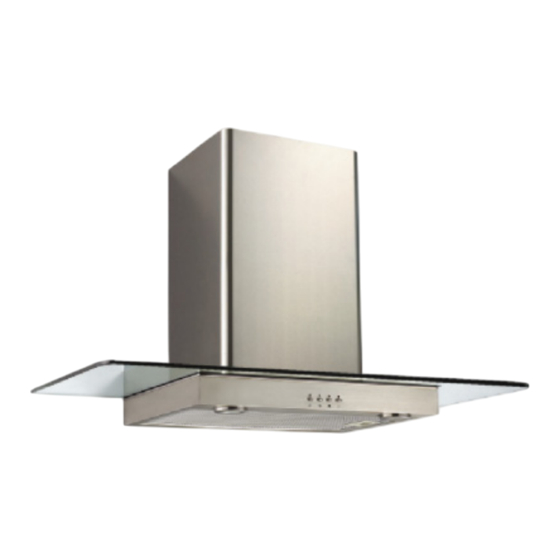

- Page 2 User Manual for your Baumatic BTC6510GL Cooker Hood 60 cm Glass cooker hood in stainless steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your BTC6510GL cooker hood Using your Baumatic cooker hood Before first use To use your cooker hood 9 - 10 Cleaning your Baumatic cooker hood The grease filters... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department. - Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.
-
Page 8: Specifications Of Your Btc6510Gl Cooker Hood
Specifications of your BTC6510GL cooker hood Congratulations on purchasing a Baumatic cooker hood! PRODUCT DIMENSIONS Height: 550 mm – 1030 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 276 mm x 303 mm Your stainless steel cooker hood is fitted with:... -
Page 9: Using Your Baumatic Cooker Hood
To use your cooker hood o Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. o Find the control panel, which is located in the centre of the canopy. - Page 10 = Indicator neons = Speed selection buttons = Low speed = Medium speed = High speed = Light on/off button o Press one of the speed selection buttons to switch the hood on. It will run at the speed that you have selected (i.e. low, medium or high speed).
-
Page 11: Cleaning Your Baumatic Cooker Hood
Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth. -
Page 12: Maintenance
Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on the handle and pulling them away from the cooker hood. o Soak the grease filter in hot water and washing up liquid for about an hour. -
Page 13: Changing A Light Bulb
Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the grease filter (as described on page 12). o Prior to touching the light bulbs ensure that they have cooled down. -
Page 14: Fitting The Carbon Filters
Fitting the carbon filters If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 15: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter. -
Page 16: Before Beginning Installation
o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N” (neutral), or coloured black. -
Page 17: Installing Your Cooker Hood
o Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only. Installing your cooker hood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. - Page 18 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
- Page 19 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.
-
Page 20: Connecting To External Ducting
Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours. - Page 21 0) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurement of both sides of chimney section D on the wall with a pencil and then remove chimney section D. 1) Take the fixing bracket (E) and place it between the two pencil marks that you made in step 9 o Keeping the bracket in contact with the wall, use a pencil to...
- Page 22 Using a 6 mm drill bit, drill out two holes on the pencil markings at you made in step 11. Insert rawl plugs into the holes and then se a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.
-
Page 23: Completing The Installation
ompleting the installation you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. S ee the “Fitting the carbon filters” ection on page 14. The electrical connection must correspond to the electrical require ment noted on the rating p late, which is placed inside the cooker hood. -
Page 24: Troubleshooting
MPORTANT: If your cooker hood appears not to be operating properly, before con tacting the Baumatic Service Department, lease refer to the checklist below. My cooker hood will not start. o Ch ck that the hood is connected to th e electricity supply o Check that the fan speed control is set correctly. - Page 25 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 26: Contact Details
Czech Republic aumatic CR spol s.r.o. mperova 495 6215, Librec zech Republic United Kingdom +420 800 185 263 Baumatic Ltd., Baumatic Buildings, www.baumatic.c 6 Bennet Road, Reading, Berksh Slovak Republi RG2 0QX aumatic Slovakia, s.r.o. United Kingdom Skultetyho 1 31 04 Bratislava 3... - Page 27 Get user manuals: See SafeManuals.com...
- Page 28 Get user manuals: See SafeManuals.com...
