- Page 1 BTC977SS Cooker Hood...

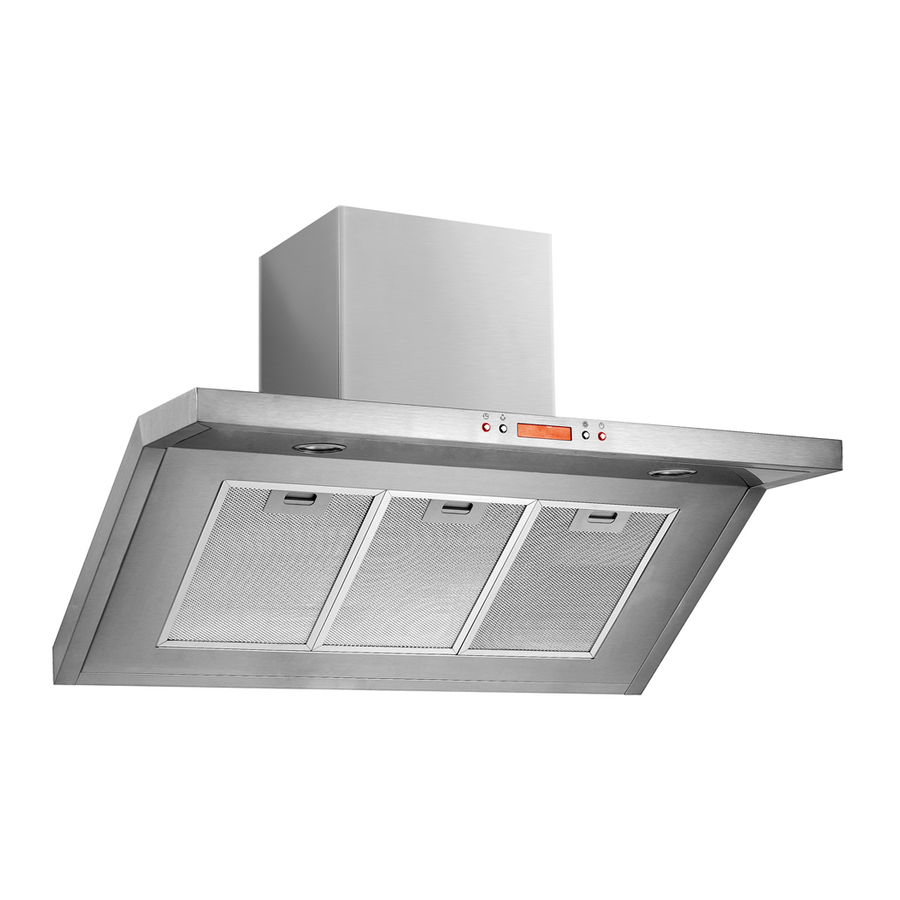

- Page 2 User Manual for your Baumatic BTC977SS 90 cm Cooker hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.
-
Page 3: Table Of Contents
IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood 8 – 9 Using your Baumatic cooker hood 9 – 11 Setting the time of day Switching the cooker hood on and setting the fan speed The cut off timer... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line. - Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note: Your cooker hood is designed to remove cooking odours from the room and not steam. o Warning - Always ensure that the cooker hood been...
-
Page 8: Specifications Of Your Cooker Hood
Specifications of your cooker hood Congratulations on purchasing a Baumatic cooker hood PRODUCT DIMENSIONS Height: 590 - 970 mm * Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: Width: 312 mm Depth: 268 mm Your cooker hood is fitted with:... -
Page 9: Using Your Baumatic Cooker Hood
Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o Find the control panel, which is located in the middle of the canopy. o There are several buttons on the control panel, which perform... -
Page 10: Setting The Time Of Day
IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK. OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Setting the time of day IMPORTANT: After the cooker hood is connected to the power supply, the time of day should be set. -
Page 11: Switching The Cooker Hood On And Setting The Fan Speed
Switching the cooker hood on and setting the fan speed o Press the ON/OFF button to switch the cooker hood on. o Use the speed selection button to regulate the speed that the motor is running at. The motor will run at the following speeds:- One push Low speed Two pushes... -
Page 12: Cleaning Your Baumatic Cooker Hood
Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT HAVE SWITCHED YOUR COOKER HOOD OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth. -
Page 13: Maintenance
o DO NOT WASH THE GREASE FILTERS IN A DISHWASHER. Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on the handle and pulling them away from cooker hood. o Soak the grease filters in hot water and washing up liquid for at least 3 minutes. -
Page 14: Changing A Light Bulb
o Rinse the grease filters off thoroughly with hot water. o Repeat the process if required. o Refit the grease filters once they have dried. o IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU... -
Page 15: Fitting The Carbon Filter
o Use a screwdriver to remove the glass cover that sits over the bulb. Unplug the light bulb that needs to be replaced and insert a new G4 20W (max) bulb. Then replace the glass cover. o IMPORTANT: Defective bulbs should be replaced immediately. o If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance. -
Page 16: Installation
3) Turn the carbon filter anticlockwise, until you feel it click into place. o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage. -
Page 17: Electrical Connection
Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. THE FUSE MUST BE RATED AT 3 AMPS. -
Page 18: Before Beginning Installation
Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside. -
Page 19: Extraction Mode Or Recirculation Mode
Extraction mode or recirculation mode? IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. What is the difference between extraction and recirculation modes? In extraction mode, the stale air will be taken out of the room via external ducting. - Page 20 IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED. Remove grease filters previously described). 2) Position the hood against the wall that you are intending to install it on and mark the position of the screw holes that are to be drilled.
- Page 21 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with an 8 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
- Page 22 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.
-
Page 23: Connecting To External Ducting
Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours. - Page 24 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
- Page 25 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied.
-
Page 26: Completing The Installation
Completing the installation o If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 15 - 16. o The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. -
Page 27: Troubleshooting
Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. - Page 28 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 29: Contact Details
Czech Republic United Kingdom Baumatic CR spol s.r.o. Baumatic Ltd., Průmyslová zóna Sever 696 Baumatic Buildings, 460 11 Liberec 11 6 Bennet Road, Czech Republic Reading, Berkshire RG2 0QX +420 483 577 200 United Kingdom www.baumatic.cz Sales Telephone (0118) 933 6900...
