Baumatic BTC675SS User Manual

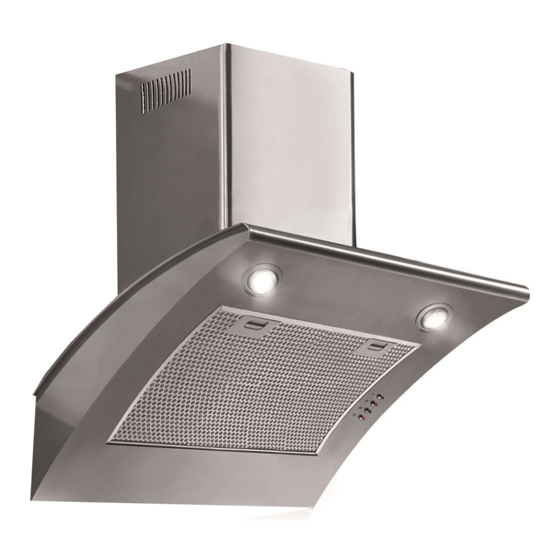

60cm cooker hood 90 cm cooker hood
Hide thumbs Also See for BTC675SS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
BTC675SS/BTC975SS
Cooker Hood
my

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTC675SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BTC675SS

Summary of Contents for Baumatic BTC675SS

  • Page 1 BTC675SS/BTC975SS Cooker Hood...
  • Page 2 User Manual for your Baumatic BTC675SS 60cm Cooker hood BTC975SS 90 cm Cooker hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Specifications of your cooker hood 8 – 10 BTC675SS 8 - 9 BTC975SS 9 - 10 Using your cooker hood Cleaning your Baumatic cooker hood 11 - 12 The grease filters 11 - 12 Maintenance 12 - 15 Removing and cleaning the grease filter...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note: Your cooker hood is designed to remove cooking odours from the room and not steam. o Warning - Always ensure that the cooker hood been...

  • Page 8: Specifications Of Your Cooker Hood

    Specifications of your cooker hood BTC675SS PRODUCT DIMENSIONS Height: 540 - 920 mm* Width: 600 mm Depth: 490 mm DIMENSIONS OF CHIMNEY SECTION: Width: 303 mm Depth: 276 mm * IMPORTANT: Please see the installation instructions to obtain precise information on the height requirements for this product.

  • Page 9: Btc975Ss

    o Extraction capacity: 750 m /hr o Optional extras: 1 x pair S1 Carbon filters required for recirculation BTC975SS PRODUCT DIMENSIONS Height: 540 - 920 mm* Width: 900 mm Depth: 490 mm DIMENSIONS OF CHIMNEY SECTION: Width: 303 mm Depth: 276 mm * IMPORTANT: Please see the installation instructions to obtain precise information on the height requirements for...

  • Page 10: Using Your Cooker Hood

    Make sure that it has been installed by a suitably qualified person, information contained Baumatic’s installation instructions. o Find the control panel, which is located on the right hand side of the canopy. o There are several buttons on the control panel, which perform separate functions.

  • Page 11: Cleaning Your Baumatic Cooker Hood

    Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT HAVE SWITCHED YOUR COOKER HOOD OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.

  • Page 12: The Grease Filters

    o DO WASH GREASE FILTER(S) DISHWASHER. Maintenance Removing and cleaning the grease filter(s) o First remove the grease filter(s) by pulling down on the handle and pulling them away from cooker hood.

  • Page 13: Changing A Light Bulb

    o Soak the grease filter(s) in hot water and washing up liquid for at least 3 minutes. Then use a soft brush to loosen any grease deposits that have formed. o Rinse the grease filter(s) off thoroughly with hot water. o Repeat the process if required.

  • Page 14: Fitting The Carbon Filter

    o Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy. o Use a screwdriver to remove the glass cover that sits over the bulb. Unplug the light bulb that needs to be replaced and insert a new G4 20W (max) bulb.

  • Page 15: Installation

    3) Turn the carbon filter anticlockwise, until you feel it click into place. o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filter(s). o The carbon filters should be replaced every 3 - 6 months or if they show signs of damage.

  • Page 16: Electrical Connection

    Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. THE FUSE MUST BE RATED AT 3 AMPS.

  • Page 17: Before Beginning Installation

    Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.

  • Page 18: Extraction Mode Or Recirculation Mode

    Please note that the styles of cooker hood shown in the line drawings in the following pages are sometimes different to the shape of the BTC675SS and BTC975SS. However the installation method shown is correct and MUST be followed.
  • Page 19 IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED. 1) Remove the grease filter(s) (as previously described). 2) Position the hood against the wall that you are intending to install it on and mark the position of the screw holes that are to be drilled (as shown in the figure below).
  • Page 20 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with an 8 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
  • Page 21 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.

  • Page 22: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours.
  • Page 23 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
  • Page 24 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the hood and fix it onto the hood using the two screws that are supplied.

  • Page 25: Completing The Installation

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting Baumatic Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.
  • Page 26 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 27: Baumatic Consumables

    BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk...

  • Page 28: Contact Details

    United Kingdom Baumatic Ltd., Baumatic Buildings, Czech Republic 6 Bennet Road, Baumatic CR spol s.r.o. Reading, Berkshire Lípovà 665 RG2 0QX 460 01 Liberec 4 United Kingdom Czech Republic Sales Telephone +420 483 577 200 (0118) 933 6900 Sales Fax www.baumatic.cz...

This manual is also suitable for:

Btc975ss
