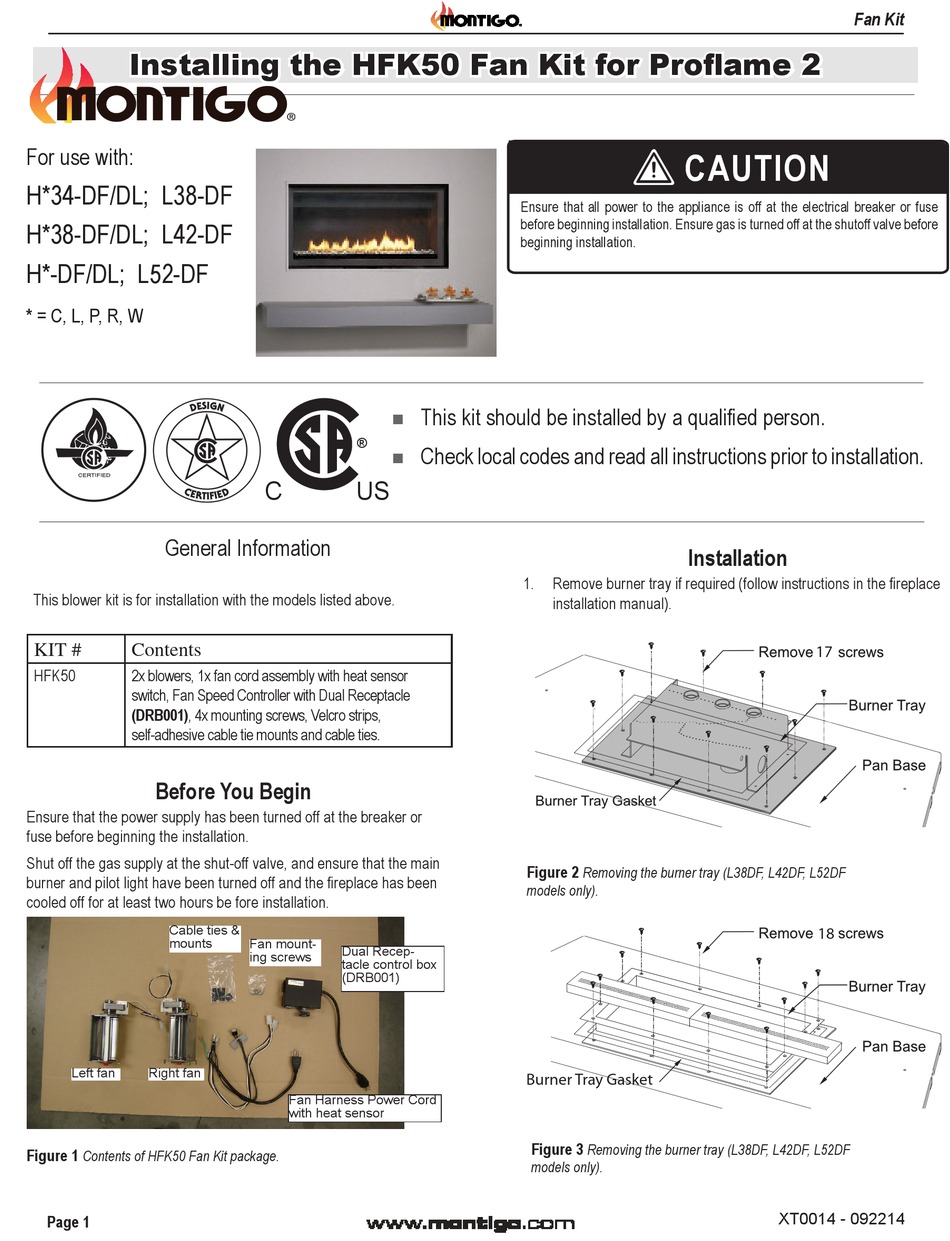

Installing the HFK50 Fan Kit for Proflame 2
For use with:
H*34-DF/DL; L38-DF
H*38-DF/DL; L42-DF
H*-DF/DL; L52-DF
* = C, L, P, R, W

General Information

This blower kit is for installation with the models listed above.
KIT #
Contents
HFK50
2x blowers, 1x fan cord assembly with heat sensor
switch, Fan Speed Controller with Dual Receptacle
(DRB001), 4x mounting screws, Velcro strips,
self-adhesive cable tie mounts and cable ties.

Before You Begin

Ensure that the power supply has been turned off at the breaker or
fuse before beginning the installation.
Shut off the gas supply at the shut-off valve, and ensure that the main
burner and pilot light have been turned off and the fireplace has been
cooled off for at least two hours be fore installation.
Cable ties &
mounts
Left fan
Right fan
Figure 1
Contents of HFK50 Fan Kit package.
Page 1
This kit should be installed by a qualified person.
®
Check local codes and read all instructions prior to installation.
C
US
Fan mount-
Dual Recep-
ing screws
tacle control box
(DRB001)
Fan Harness Power Cord
with heat sensor
CAUTION
Ensure that all power to the appliance is off at the electrical breaker or fuse
before beginning installation. Ensure gas is turned off at the shutoff valve before
beginning installation.

Installation

1.
Remove burner tray if required (follow instructions in the fireplace
installation manual).
Burner Tray Gasket
Figure 2
Removing the burner tray (L38DF, L42DF, L52DF
models only).
Burner Tray Gasket
Figure 3
Removing the burner tray (L38DF, L42DF, L52DF
models only).
Fan Kit
17
18
XT0014 - 092214

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFK50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Montigo HFK50

  • Page 1: General Information

    Fan Kit Installing the HFK50 Fan Kit for Proflame 2 For use with: CAUTION H*34-DF/DL; L38-DF Ensure that all power to the appliance is off at the electrical breaker or fuse before beginning installation. Ensure gas is turned off at the shutoff valve before H*38-DF/DL;...
  • Page 2 Installation Install the left fan as shown in Figure 4 to the bracket underneath Attach the DRB001 using the supplied Velcro strips to the floor of the firebox using the screws supplied (motor should be oriented the fireplace. Note: ensure that control box clears the door buckle. towards the back side of the fireplace).
  • Page 3 Installation Plug in the Fan Harness Power cord to DRB001 "FAN PLUG" Using the supplied cable ties and self-adhesive cable tie mounts, secure the fan harness to the bottom of the firebox. Make sure to keep the wires away from fan blades and door buckles. Figure 10 Figure 8 Plug in the power cord from the fireplace to the Dual Receptacle...
  • Page 4 Installation 10. Secure the Fireplace powercord to the fireplace floor using cable 14. Use the speed control knob to adjust the fan speed to the desired ties, away from the door buckle and other moving parts. setting. The fans only operate when the unit is running. You may turn the fans off completely using the DRB001 knob.
