WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
— Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a qualified
installer, service agency or the gas fitter.
Installation & Maintenance Manual

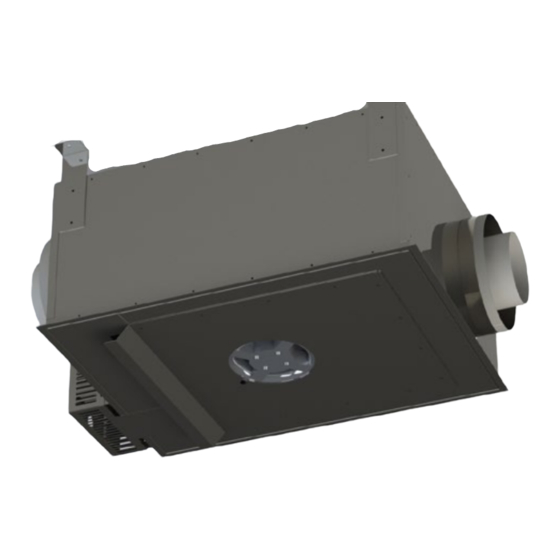

PVHIN47-200
4/7 INLINE POWER VENT
MUST USE IN CONJUNCTION WITH APPLICABLE TERMINATION:
TMVIN47-12, TMHIN47-24, MTO4-PV, MTO4F-PV,
MVTK1SS
• The installation of this fireplace must be done by a
®
• Check local codes and read all instructions prior to
C
US
qualified and certified gas appliance installer.
installation.
NOTICE
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for suture reference.
CAUTION
Installation and service must be performed by a qualified installer,
service agency or the gas fitter.
DANGER
Read and understand this manual. Improper installation, adjustment,
alteration, service or maintenance can cause serious injury, property
damage or even death. For assistance or additional information
consult a qualified installer, service agency or the gas supplier.
WARNING
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
XG0521 - 180904

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVHIN47-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Montigo PVHIN47-200

  • Page 1 Installation & Maintenance Manual PVHIN47-200 4/7 INLINE POWER VENT MUST USE IN CONJUNCTION WITH APPLICABLE TERMINATION: TMVIN47-12, TMHIN47-24, MTO4-PV, MTO4F-PV, MVTK1SS • The installation of this fireplace must be done by a qualified and certified gas appliance installer. ® • Check local codes and read all instructions prior to installation. NOTICE WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, Installer: Leave this manual with the appliance.
  • Page 2: Safety Alert Key

    300 CFM 2700 RPM as it must also be adhered to. Power Cord Harnesses: The Montigo warranty will be voided by, and Montigo disclaims any responsibility for, the following actions: • EPVH10 - 10 foot power cord and harness •...
  • Page 3: Table Of Contents

    Section A: Before You Begin ...............3 applicable codes. Section 1: Dimensions ............... 4 PVHIN47-200 Inline power vent unit dimensions ........4 NOTICE TMVIN47-12 / TMHIN47-24 termination unit dimensions ....4 Section 2: Installing the power vent ..........5 Do not use this appliance if any part has been under water.
  • Page 4: Section 1: Dimensions

    General Section 1: Dimensions PVHIN47-200 Inline power vent unit dimensions 16 " 16 " 17" 16 " 16 " 32 " 4 " 32 " 18" 32 " 16 " 8 " 4 " 11" 8 " 32 " 4 " Figure 2.d Unit dimensions (Tolerance ± ⅛").
  • Page 5 Maintain at least 22 3/16" 1.00" clearance to combustibles all around the Flue Gas Box This flue gas box is only to be used with Montigo fireplace systems specifically approved by Montigo 3 15/16" TMHIN47-24 6 15/16" HORIZONTAL LOUVER BOX...
  • Page 6 Installation MT04-PV termination dimensions PTO4 IS THE ONE FROM CHINA 11'' 11.000 11'' 11.000 8.000 R4.000 .250 7.000 .500 4.280 5.000 11.280 1.500 1.500 8.000 SECTION C-C 1/2" CRIMP SCALE 1 : 4 NAME DATE DIMENSIONS ARE IN INCHES TOLERANCES: 1/2"...
  • Page 7: Section 2: Installing The Power Vent

    Installation Section 2: Installing the power vent Power Vent Clearances Mounting on a combustible is permitted provided the clearances are adhered to Maintain standard vent Maintain standard vent min. 2" clearance clearances clearances Direction of flow Direction of flow Maintain standard vent min. 2" clearance clearances Allow space for access 20"...
  • Page 8 Installation Horizontal venting configurations Vertical venting configurations Multi-elbow installations are possible up to a maximum eighty five feet, with Multi-elbow installations are possible up to a maximum one-hundred feet, five (5) 90° elbows and two (2) 45° elbows. Minimum vent run from Fireplace with three (3) 90° elbows. Minimum vent run from Fireplace to Power Vent to Power Vent must be four feet, (4'-0").
  • Page 9: Conduit And Wiring Clearances

    Installation Power Vent Wiring BLUE AIR SWITCH Conduit and Wiring Clearances Connect the power vent harness as outlined. Connect the wiring to the fireplace as outlined in the schematic showin in Figure 14 Section 3. Ensure that the proper clearances are maintained for the wiring and conduit.
  • Page 10: Wiring Schematic For Proflame 2 With Power Vent

    Installation Wiring schematic for Proflame 2 with power vent SPARK GREEN WHITE BLACK MAIN SENSOR Power 120VAC 60 Hz MAIN ON/OFF 6 Amps SWITCH YELLOW YELLOW CPI/IPI SWITCH WHITE YELLOW/GREEN ORANGE PILOT GREEN BLACK BROWN YELLOW ORANGE VARIABLE SPEED BLACK COMFORT FANS WHITE POWER VENT GREEN GREEN BLACK BLACK BROWN...
  • Page 11 Installation PVFCB power vent fan speed control box Install the PVFCB between the 6-pin Molex connector of After 20 minutes of running turn speed control to the fireplace harness and the plug the EPVH-** power the right, the motor speed will slow, keep turning the cord into the mating 6-pin Molex connector in the box, control knob to the right until the burner turns off.
  • Page 12: Section 3: Tmvin47-12 / Tmhin47-24 Termination

    Installation Section 3: Termination framing TMVIN47-12 / TMHIN47-24 Termination TMVIN47-12 / TMHIN47-24 Termination Standard Mounting (Standard combustible framing) (Adjustable depth) Step 1: If doing a combustible frame install, remove the concrete mounting feet and louver grille and install as shown. Non-Combustible Frame dard Mounting Termination Body Step 2: re-install louver grille with 4 supplied...
  • Page 13 Installation MT04-PV / MT04F-PV Termination Installation of termination with built in frame A termination with a built-in frame is installed during framing of a structure. 1. Frame the termination opening to 11" x 11". 2. Install exterior sheathing to the structure framing. 3. Fasten the termination to the sheathing using a minimum of 4 screws. 11”...
  • Page 14 Appendix Appendix A: Powervent Terminations FIXED CLOSED FIXED OPEN- ABLE CLOSED OPEN- ABLE AREA WHERE POWERVENT GAS REGULATOR VENT TERMINAL AIR SUPPLY INLET IS NOT PERMITTED Location clearances above grade, veranda, porch, deck, or balcony [*12 inches (30 cm) minimum] clearance to window or door that may be opened [* 12 inches (30 cm) minimum] clearance to permanently closed window [minimum 12 inches (30 cm) recommended to prevent condensation on window] vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (60 cm) from the edge of the terminal [0 inches (0 cm) minimum] clearance to unventilated soffit [0 inches (0 cm) minimum]...
  • Page 15: Appendix B: Warranty

    (collectively referred to herein as "The Companies"), warrants the option, replace or repair defective components of the appliance Montigo gas appliance (referred to herein as 'the appliance') to manufactured by the company at no charge and will also pay for...
  • Page 16: Appendix B: Warranty Continued

    In the event the installing dealer is unavailable, contact your nearest authorized Montigo dealer (www.Montigo.com) or contact Montigo direct at techsupport@ montigo.com. Ensure you have your sales receipt and the model and serial number of your appliance.
  • Page 17: Appendix C: Amendment

    Appendix Appendix C: Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as 4. INSPECTION. The state or local gas inspector of the side wall follows: horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes...
  • Page 18 Installation & Maintenance Manual PVHIN47-200 PVHIN47-200 Inline Power Vent Inline Power Vent XG0521 - 180904...
