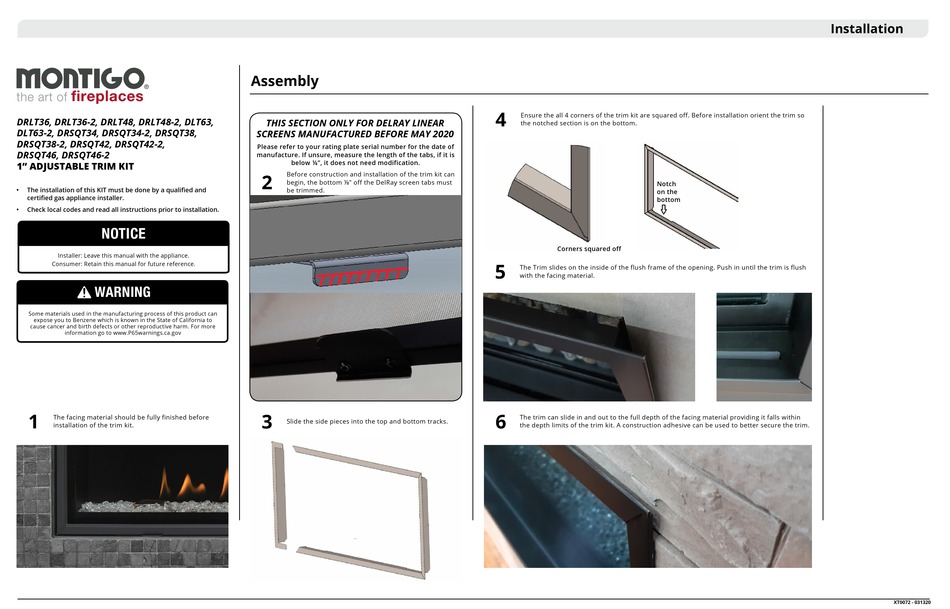

Montigo DRSQT34 Installation

DRLT36, DRLT36-2, DRLT48, DRLT48-2, DLT63,
DLT63-2, DRSQT34, DRSQT34-2, DRSQT38,
DRSQT38-2, DRSQT42, DRSQT42-2,
DRSQT46, DRSQT46-2
1" AdjustAble trim kit
• The installation of this KIT must be done by a qualified and
certified gas appliance installer.
• Check local codes and read all instructions prior to installation.
Notice
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Warning
Some materials used in the manufacturing process of this product can
expose you to Benzene which is known in the State of California to
cause cancer and birth defects or other reproductive harm. For more
information go to www.P65warnings.ca.gov
1
The facing material should be fully finished before
installation of the trim kit.
Assembly
ThiS SecTion onLy foR DeLRay LineaR
ScReenS manufacTuReD befoRe may 2020
Please refer to your rating plate serial number for the date of
manufacture. If unsure, measure the length of the tabs, if it is
below ¼", it does not need modification.
2
Before construction and installation of the trim kit can
begin, the bottom ⅛" off the DelRay screen tabs must
be trimmed.
3
Slide the side pieces into the top and bottom tracks.
4
Ensure the all 4 corners of the trim kit are squared off. Before installation orient the trim so
the notched section is on the bottom.
Notch
on the
bottom
Corners squared off
5
The Trim slides on the inside of the flush frame of the opening. Push in until the trim is flush
with the facing material.
6
The trim can slide in and out to the full depth of the facing material providing it falls within
the depth limits of the trim kit. A construction adhesive can be used to better secure the trim.
Installation
xT0072 - 031320
