User's Operation Manual
.
.
.
CLASSFICATION
SKU
DOCUMENT NO
ENB-X5-QFU
X5-K-7
Installation Manual
.
.
VERSION
PAGE

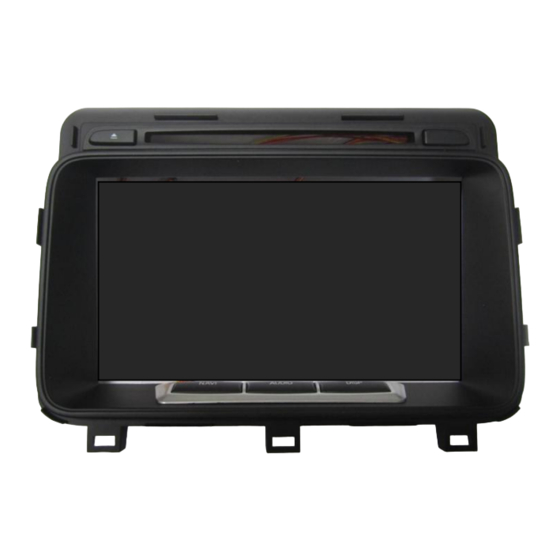

UNAVI X5 for Kia Optima UVO Installation Guide
1
1.1
UNAVi X5 for Kia Optima
Installation Guide
[UVO Infotainment System Use Only]
MODEL: Kia Optima 2014+
(Professional Use)
Information & Manual
Date: 2/7/2014
Copyright © 2014 UNAVI USA, Inc. All rights reserved.
Advertisement
Related Manuals for UNAVi X5
Summary of Contents for UNAVi X5
-
Page 1: Installation Guide
CLASSFICATION DOCUMENT NO ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide UNAVi X5 for Kia Optima Installation Guide [UVO Infotainment System Use Only] MODEL: Kia Optima 2014+ (Professional Use) Information & Manual Date: 2/7/2014... -
Page 2: Main Components
X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide DISCLAIMER: This ‘Do-It-Yourself Installation Guide’ is intended for informational and reference purposes only. We do not recommend implicitly or explicitly, to anyone, performing any of the procedures described in this guide. - Page 3 CLASSFICATION DOCUMENT NO ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide (Continued) Front replacement brackets Mounting brackets (Left & Right) Control box + SD Card Trip interface board External speaker GPS antenna Control box interface cable SMART cable Information &...
-
Page 4: Tools Required
CLASSFICATION DOCUMENT NO ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide TOOLS REQUIRED: Masking Tape Double-sided Tape * Electrical Tape Velcro Dash Trim Removal Tool * Zip/Cable Ties ... -
Page 5: Gps Antenna Installation
X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide TPMS (TIRE PRESSURE MONITORING SYSTEM) WARNING LAMP – ELECTROMAGNETIC INTERFERENCE SYMPTOM/CONDITION The TPMS malfunction indicator lamp may be illuminated if the vehicle is moving around electric power supply cables or radio transmitters at police stations, government and public offices, broadcasting stations, military installations, airports, transmitting towers, etc. - Page 6 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide > INSTALLATION STARTS HERE < Gently remove the side panel cover on the driver side. (Apply protective tapes and take care not to damage and scratch the interior dash and its related parts) Remove the screws (2EA) once the panel cover is removed.
- Page 7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Remove the screws (2EA) located on the bottom of the driver side panel assembly. (Images shown on this page may vary) Gently pull off the panel assembly as shown.
- Page 8 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Carefully disconnect all connectors from the back of the panel. (Picture shown may vary based on vehicle trim levels) Image of driver side panel assembly removed. (Installation is the reverse of removal) Information &...
- Page 9 ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Gently pull out the center fascia garnish as shown. Image of center garnish removed. Information & Manual Date: 2/7/2014 Copyright © 2014 UNAVI USA, Inc. All rights reserved.
- Page 10 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Remove screws to pull out the climate control assembly. Disconnect all connectors from the back. Loosen instrument cluster panel to remove the center fascia panel after loosening screws.
- Page 11 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Remove the radio head unit after loosening the mounting screws (4ea). As the head unit is being pulled out, carefully disconnect all cables behind it. Information & Manual Date: 2/7/2014 Copyright ©...
- Page 12 ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Image of the center dash panel after removing the head unit. Remove the mounting brackets on each side. Information & Manual Date: 2/7/2014 Copyright © 2014 UNAVI USA, Inc. All rights reserved.
- Page 13 X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Carefully pull out the audio faceplate from the audio assembly. Disconnect the ribbon cable (FCC) from the back of the audio faceplate ONLY. **Use Caution** Information & Manual Date: 2/7/2014 Copyright ©...
- Page 14 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Remove the screws (4ea) on the head unit to remove the top cover. Remove the top cover after loosening the screws. Remove the two screws as marked in white arrows shown above.
- Page 15 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Remove the screws securing the front bracket as shown. Please proceed with CAUTION when inserting the ribbon cable into the Trip Interface board. DO NOT twist the cable as this may result in a damaged board and/or the audio unit! [WARNING] This TRIP MODULE is designed for specific models.
- Page 16 UNAVI X5 for Kia Optima UVO Installation Guide When attaching the ribbon cable on all UVO systems, for those familiar with Unavi installs, note that it is wider and uses a different type of connector than the standard radio units.
- Page 17 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Assemble the Trip Interface board onto the front replacement bracket piece as shown. (Use screws provided in the kit to mount the Trip Interface board). (Images shown on this page may vary) Front view of the Trip Interface board mounted on to the front replacement bracket.
- Page 18 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Screw the front replacement bracket to the radio head unit and ensure it is mounted underneath the CD-ROM drive as shown. (Images shown on this page may vary) Front view of the front replacement bracket with Trip Interface board assembled.
- Page 19 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Screw on the replacement mounting brackets (Left and Right) as shown. Open the glove box and twist the knobs on both sides to loosen the compartment. Information & Manual Date: 2/7/2014 Copyright ©...
- Page 20 X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Route the Control box interface cable around from behind the glove box and out through the center dash panel opening. (Images shown on this page may vary) Mount the control box inside the glove box using a double-sided tape or Velcro.
- Page 21 UNAVI X5 for Kia Optima UVO Installation Guide Connect the external speaker to the female connector labeled “BUILT-IN SPEAKER” This speaker will allow sound output from the UNAVI system when the audio is in XM/Radio/CD/MP3/Bluetooth mode. Sound output from the system will use the factory speakers under “AUX” mode only.
- Page 22 VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Make sure the GPS receiver is mounted (rounded side up facing the sky) to a non-metallic panel or on the front windshield glass. Route the antenna cable carefully to avoid damage.
- Page 23 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Connect the main factory audio cable (24-pin) to the SMART cable harness. Clear of any obstructing cables or components behind the dash panel. (Images shown on this page may vary) Reconnect the remaining audio unit connectors and cable as shown.
- Page 24 Check the cables are not being too tightly squeezed in the back of the audio unit. Plug in the 20-pin connector to the Trip Interface board as shown. (Image shown above may vary) Assemble the Unavi fascia kit onto the factory dash panel as shown. Information & Manual Date: 2/7/2014...
- Page 25 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Plug in the 10-pin keypad cable to the Trip Interface board as shown. (Image shown above may vary) Connect the GPS antenna to the “GPS” port located behind the LCD screen.
-
Page 26: Installation Complete
DOCUMENT NO ENB-X5-QFU X5-K-7 Installation Manual VERSION PAGE UNAVI X5 for Kia Optima UVO Installation Guide Assemble the center fascia panel and climate control assembly back into the dash. Installation Complete! For additional information, please visit www.buyunavi.com or call 855-558-6284.
