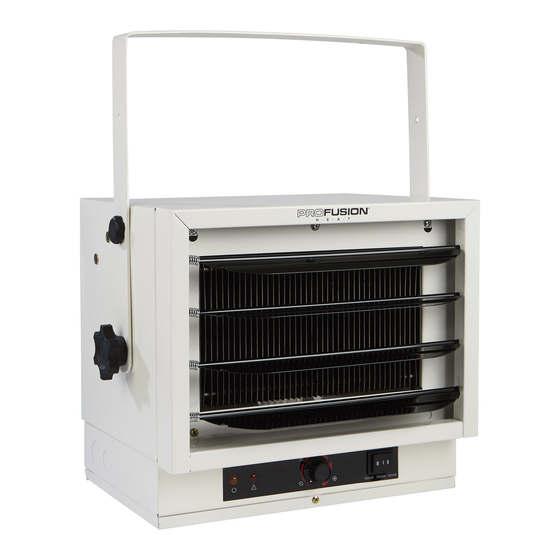

HEAVY-DUTY FAN-FORCED
CEILING-MOUNT HEATER
INSTRUCTION MANUAL
MODEL: HA24-50MB
PLEASE READ AND SAVE THESE
IMPORTANT SAFETY INSTRUCTIONS
PET OWNERS WARNING: Health warning for some small pets, including birds,
as they are extremely sensitive to the fumes produced during the first-time use
of many appliances. These fumes are not harmful to humans but we
recommend that you do not use your heater around birds and small pets
during its initial use until the manufacturing corrosion (anti-corrosion)
coatings burn off.
Technical Support : 1-866-206-0888
Service email:
info@mecanair.net
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ProFusion HA24-50MB
Summary of Contents for ProFusion HA24-50MB

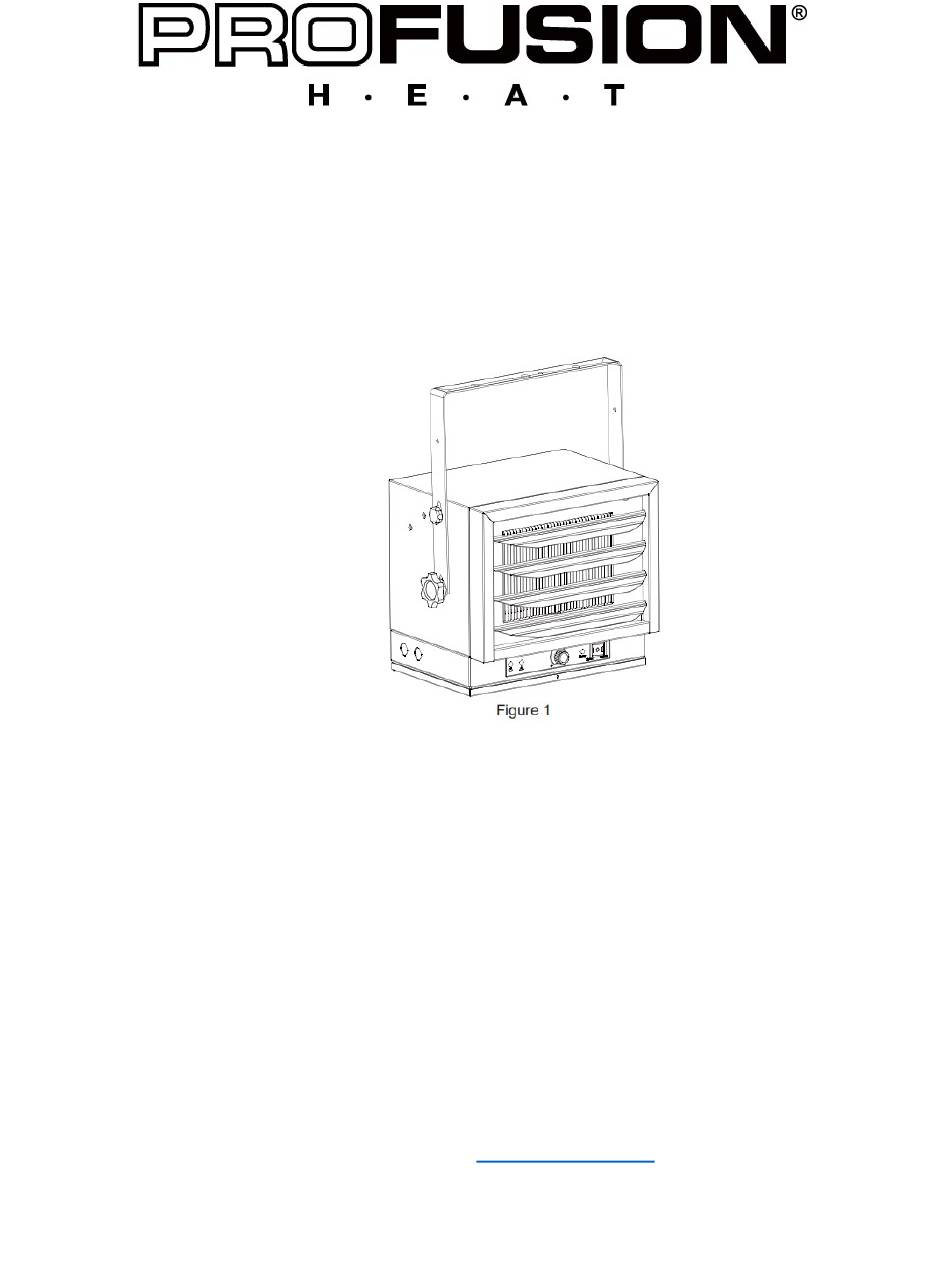

- Page 1 HEAVY-DUTY FAN-FORCED CEILING-MOUNT HEATER INSTRUCTION MANUAL MODEL: HA24-50MB PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS PET OWNERS WARNING: Health warning for some small pets, including birds, as they are extremely sensitive to the fumes produced during the first-time use of many appliances.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Instructions…………………………………3 Description and Specifications………………………4 General Safety Information…………......5 Locating the heater …………………………………..6 Installation………………………………………………..7-9 Connecting the power………………………………….9-10 Operating Instructions…………………………………11-12 Maintenance Instructions……………………………...12... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: 1. Read all instructions before installing or using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. -
Page 4: Description And Specifications
DESCRIPTION The heavy-duty electric heater is designed for garages, workshops and similar locations. It features two heat settings, for a maximum heat production of 17,065 BTU per hour. It includes horizontal and vertical air flow and a built-in thermostat with overheating safety thermal cut-out. -
Page 5: General Safety Information
GENERAL SAFETY INFORMATION : This heater requires hardwire installation (no plug). The installation of this product must be carried out by a certified electrician and in accordance with all local and national electrical codes. NOTE: Compatible with a 240V line voltage double pole wall thermostat. This heater must be installed by a certified electrician. -
Page 6: Locating The Heater
LOCATING THE HEATER Install heater out of traffic areas, maintaining clearances stated in figure 3. The direction of airflow should not be restricted by columns or machinery and the airflow should wipe exposed walls rather than blowing directly on them. When more than one heater is used in an area, the heaters should be installed so that the air discharge of each heater supports the air flow of the others, to provide best circulation of warm air as indicated in figure 4. -
Page 7: Installation
INSTALLATION Hardware needed You will also need the following hardware, which can be purchased from your local hardware store or electrical supply store: Electric wire in the adequate gauge and length for your application; Proper size fuse or breaker for your heater’s amperage; ... - Page 8 HANGING THE HEATER Lift the heater up and into the mounting bracket. 2) Align the bracket screws with the keyhole slots in the mounting bracket. 3) If the heater is to be tilted, it must be positioned in the keyhole slots. (see figure 4) Tighten the bracket screws with a wrench so the unit is securely suspended at horizontal or vertical level.
-
Page 9: Connecting The Power
MULTIPLE VERTICAL ANGLES Figure 8 CONNECTING THE POWER 1. Remove the screw from the front of the unit to connect the power to the heater. 2. Attach the cable connectors to the unit (See Figure 9) and slide the 10-gauge wire through the cable connector. - Page 10 Figure 9 Figure 10...
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Note: After setting an external thermostat to control the heater, the power selection switch on the unit will be the only working function on the heater itself. Note: This unit has a fan delay function to provide warm air when it is first turned on. When the heater is turned off, the fan will continue working for a short while to cool the heating element;... -
Page 12: Maintenance Instructions
THERMAL CUT-OUT The heater will automatically turn off should it overheat. When this happens, the red indicator will turn on. After the unit has cooled back down to a normal level, the heater will turn ON again and the red indicator will turn off, but the reason of the overheating must be determined and corrective action must be taken before further operation.
