Large Full-Motion TV Wall Mount

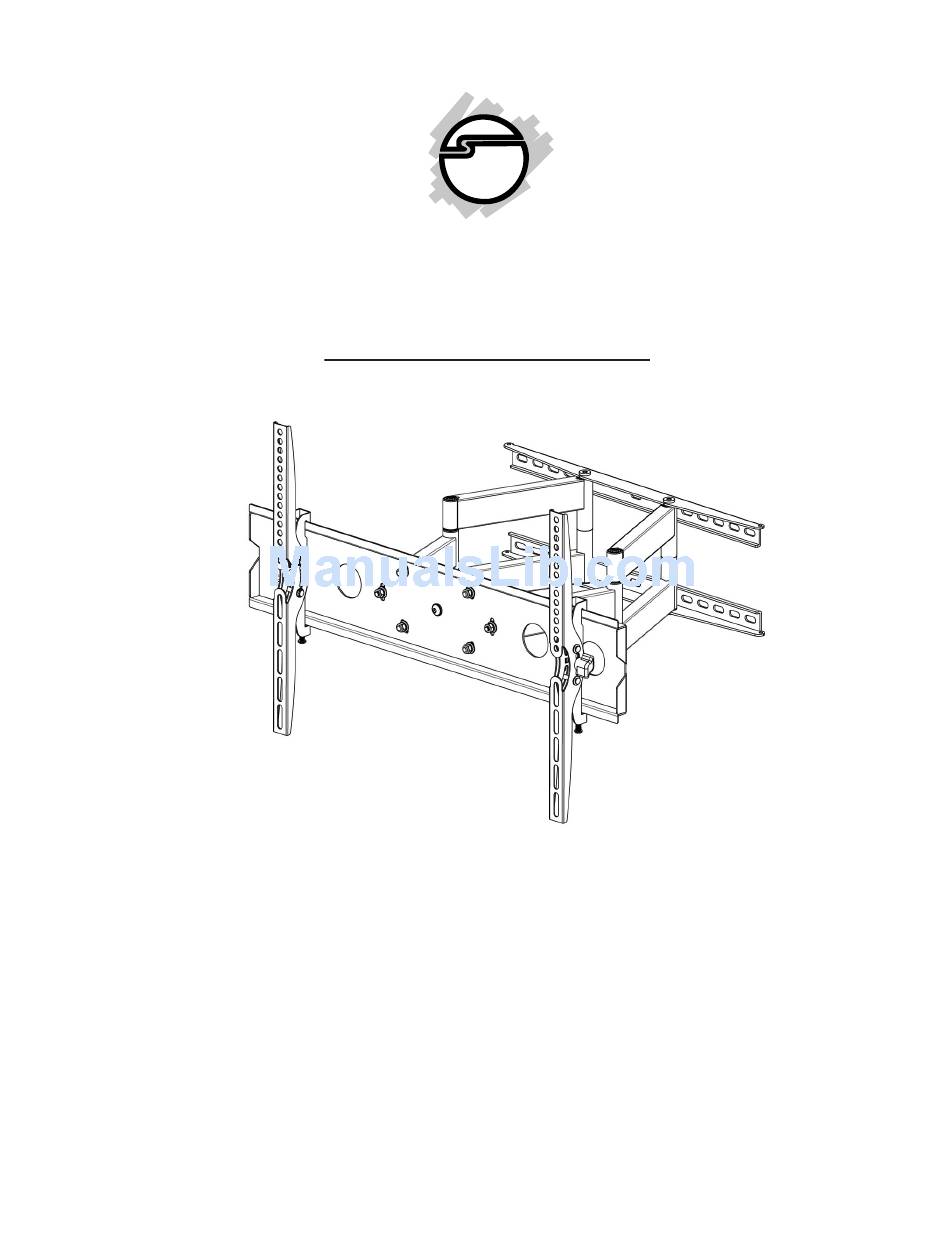

Articulating Full-Motion Universal Flat-Panel TV Wall-Mount
TV size: 42" to 80"
Tilt angle: 10 degrees up / 15 degrees down
Max load capacity: 154 lbs
Wall distance (at the front plate): 3.75" to 17.35"
Important: If you have difficulty following or understanding these installation instructions,
please consult a qualified installation specialist.
04-0971A
Installation Guide
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIIG Large Full-Motion TV Wall Mount
Summary of Contents for SIIG Large Full-Motion TV Wall Mount
- Page 1 Large Full-Motion TV Wall Mount Installation Guide Articulating Full-Motion Universal Flat-Panel TV Wall-Mount TV size: 42" to 80" Tilt angle: 10 degrees up / 15 degrees down Max load capacity: 154 lbs Wall distance (at the front plate): 3.75" to 17.35"...
-
Page 2: Tools Required
Electric drill, 5/32" drill bit for wood stud installation, 3/8" masonry drill bit for concrete/brick wall installation Important: The Large Full-Motion TV Wall Mount is shipped with the proper installation hardware and parts. Make sure that none of the items are missing or damaged before starting the installation. -
Page 3: Hardware Kit
Hardware Kit (x1) Wall plate (x1) Left monitor bracket (x1) Right monitor bracket (x4) M6x12 bolt (x4) M5x12 bolt (x4) M8x16 bolt (x4) M4x12 bolt (x4) M5x30 bolt (x4) M6x35 bolt (x4) M8x40 bolt (x4) M4x30 bolt (x4) M5 lock washer (x4) M6 lock washer (x4) M4 lock washer (x4) M8 lock washer... - Page 4 Step 1: Wall Plate Installation A) Wood Stud Installation (16" on center) Use a high quality electronic stud finder (commercially available) to locate dead center of two wood studs 16" apart and mark the location with a pencil. See Figure 1. Mount the bubble level (y) onto the wall plate at the position shown.
- Page 5 B) Concrete / Brick Wall Installation Note: The concrete anchors must be used for concrete and brick installation. Mount the bubble level (y) onto the wall plate at the position shown. With the help of an assistant, place the wall plate onto the wall in the desired mounting location and check the bubble level to ensure it is level.
- Page 6 Step 2: Mounting the Monitor Brackets The hardware kit includes bolts of various diameters and lengths to ensure optimal installation. Step 2A - Mounting the Monitor Brackets to a TV with a Flat Back Place your TV screen down on a soft, flat surface, and locate the threaded mounting holes that are located on the back of the display.
- Page 7 Step 2B - Mounting the Monitor Brackets to a TV with a Curved Back Place your TV screen down on a soft, flat surface, and locate the threaded mounting holes that are located on the back of the display. Determine the depth of the mounting holes by inserting a straw or toothpick. Select the bolt (i, j, k, l) with the correct depth and diameter of the mounting holes of your TV.
- Page 8 Step 3: Attaching the TV to the Wall Plate Warning: Some TVs may require two people to lift and position it onto the wall plate. SIIG, Inc. is NOT RESPONSIBLE for any damage or injury caused by incorrect installation, assembly or use.
-
Page 9: Step 4: Tilt Adjustment
Step 4: Tilt Adjustment Loosen the tilt adjustment knobs (on each monitor bracket), tilt the TV to the optimal viewing angle, then re-tighten the knobs to secure the tilt angle. See Figure 8. Figure 8... -
Page 10: Maintenance
Step 5: Leveling the TV If needed, the TV can be leveled after it has been mounted to the wall mount by rotating the front plate that the TV mounts onto. To make this adjustment, first unmount the TV from the front plate, then loosen the six bolts (located on the front of the front plate) and carefully rotate to the left or right to the desired postion. - Page 11 Blank Page...
- Page 12 Large Full-Motion TV Wall Mount Large Full-Motion TV Wall Mount is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
