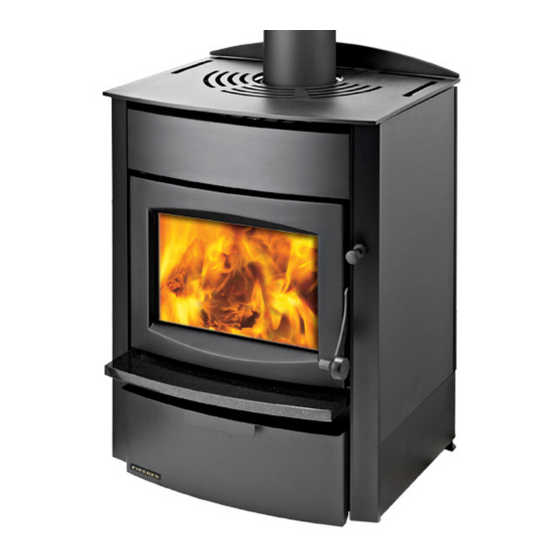

- Page 1 FOR PROPERTIES OF 2 HECTARES OR MORE 2 HECTARES OR MORE 2 HECTARES OR MORE 2 HECTARES OR MORE FREESTANDING WOODBURNER All installations must be in accordance with these instructions. Consult with the building authority having jurisdiction to determine the need for a permit prior to commencing the installation.
- Page 2 INDEX Page No: Item No: Topic: Warnings Installation Responsibilities Floor Protector Requirements Installation Clearances Assembly Instructions Wetback Installation Flue Installation Minimum Height of Flue System Exit Please leave these instructions with owner when installation is complete. Edited 6/09/12 Encore RU...
- Page 3 THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. The Encore RU is tested to N.Z. Standards AS/NZS 2918:2001. If this heater is incorrectly installed a house fire may result. For your safety follow the installation instructions carefully.
-
Page 4: Installation Responsibilities
All joints shall be fixed to prevent accidental separation, and shall be sealed to prevent any spilt ash or embers contacting any heat sensitive material. Encore RU... -
Page 5: Installation Clearances
Heating Area estimate 160sqm All Clearances shown are from the BASE of the Encore and not the top plate. Dimension ‘C’ specifically is shown from the base drawer front which gives a 300mm clearance from the door opening as required under NZ2918. - Page 6 5. Lift top casting and ensure baffle bricks and metal deflector are correctly located as diagram below with DEFLECTOR PLATE CENTRED and then replace top casting ensuring good seal down onto fire rope bed. REFER ITEM 5 - CHECK BAFFLE BRICK INSTRUCTIONS Encore RU...
- Page 7 Slide in the rear infill top panel behind the flue outlet and then the curved plate locates on the outer rear edge. 11. Fit door knob set to door lever arm as drawing »» Encore RU...
- Page 8 7. WETBACK The Encore Urban Wet is fitted with a wetback to supplement the hot water system. WARNINGS: DO NOT CONNECT TO AN UNVENTED HOT WATER SYSTEM. DO NOT USE THIS FIRE WITHOUT WATER RUNNING THROUGH THE WETBACK. INSTALL IN ACCORDANCE WITH AS 3500.4.1 OR NZS 4603 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.
- Page 9 Where such action is considered the manufacturer should be consulted in the first instance. WARNING: The appliance and flue system shall be installed in accordance with AS/NZS 2918:2001 and the appropriate requirements of the relevant building code or codes. Encore RU...
- Page 10 Encore RU...
- Page 11 FIRENZO WOODFIRES Hewitsons Limited Manufacturers of: Lady Kitchener Bronte Coaster Contessa Royale Viking Zealandia Athena Forte Aqualux Deco Plaza Kompact 98 Niven Street PO Box 3231 Onekawa Napier Phone: 06 8438260 Fax: 06 8430505 Email: hothouse@firenzo.co.nz Web: www.firenzo.co.nz Encore RU...
