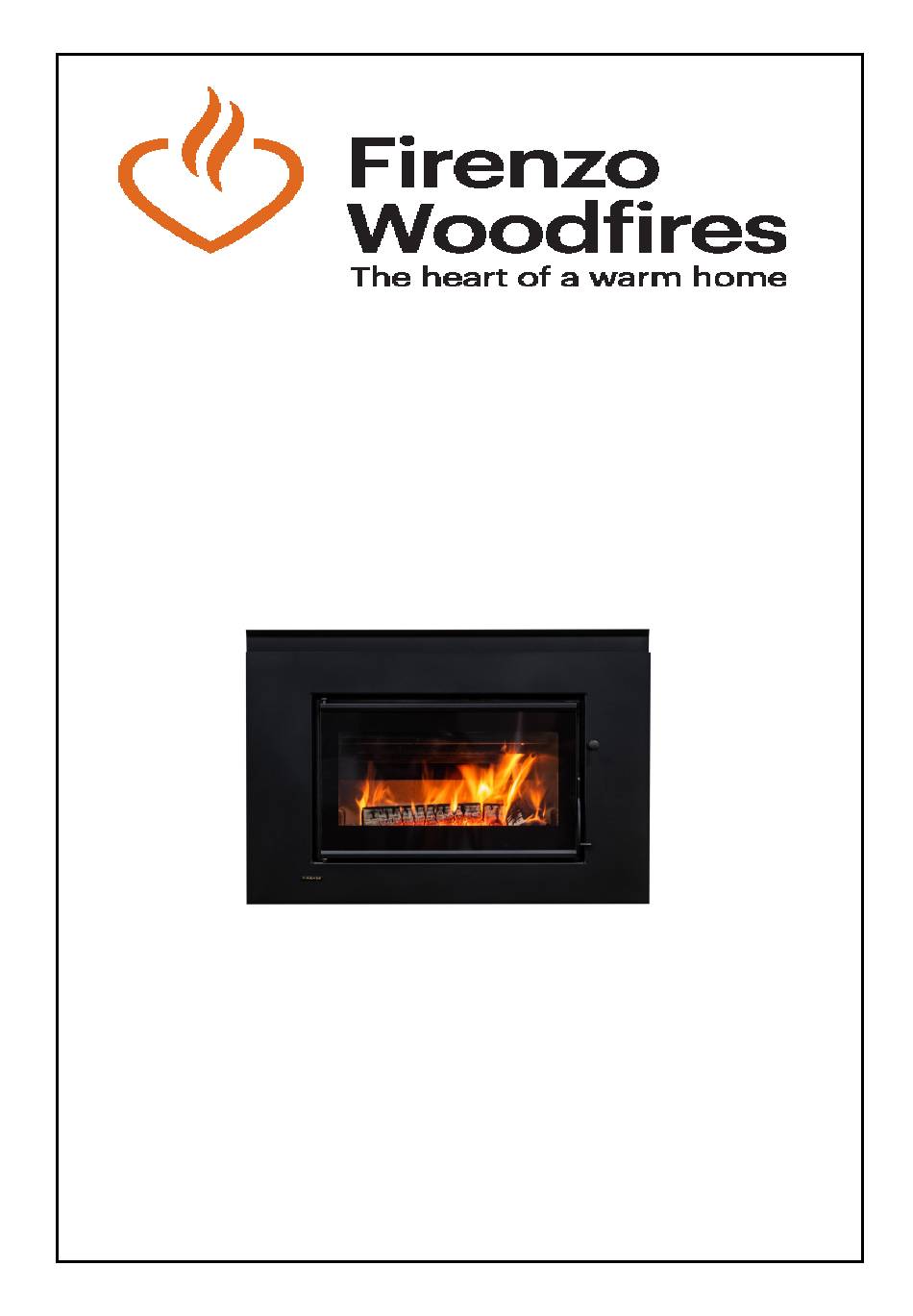

Please read this booklet and keep for future reference for the safe
installation and operation of your:

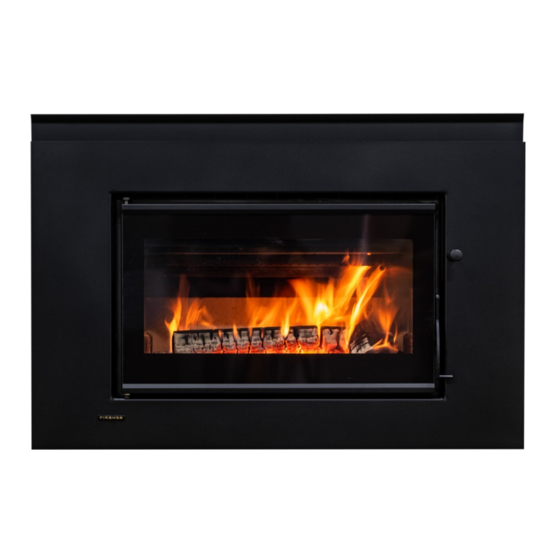

Topaz RURAL
INSTALLATION AND OPERATION GUIDE
RU stands for Rural. For properties of 2 hectares or more in areas not under an air quality control
scheme.
This Fire must be installed by someone competent to do so, Firenzo recommend the use of a
NZ Home Heating Association, solid fuel Fire installation technician (SFAIT), or other suitably
qualified person. The Fire and Flue System must be installed in accordance with AS/NZS2918.
All Installations must be in accordance with these instructions. Consult with the building
authority having jurisdiction to determine the need for a permit prior to commencing the
installation. Failure to follow these instructions may also void your fire insurance and warranty.
This Fire has been tested to Appendix E & B of the joint Australia/New Zealand standard
2918:2001.
Topaz RU Installation - April 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the Topaz RURAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firenzo Topaz RURAL

Summary of Contents for Firenzo Topaz RURAL

  • Page 1 RU stands for Rural. For properties of 2 hectares or more in areas not under an air quality control scheme. This Fire must be installed by someone competent to do so, Firenzo recommend the use of a NZ Home Heating Association, solid fuel Fire installation technician (SFAIT), or other suitably qualified person.
  • Page 2 31 - 33 Warranties Your Warranties Registration Card is enclosed, please complete and return to us. Under our policy of continuous product improvement, Firenzo reserves the right to alter specification or product from that shown. Topaz RU Installation - April 2019...
  • Page 3 1. WARNINGS This Fire should be maintained and operated at all times in accordance with these instructions. The Topaz RURAL is tested to N.Z. Standards AS/NZS 2918:2001. If this Fire is incorrectly installed a house fire may result. For your safety follow the installation instructions carefully.

  • Page 4: Installation Responsibilities

    2. INSTALLATION RESPONSIBILITIES WARNING: The Fire and Flue system must be installed in accordance with AS/NZS 2918:2001 and the appropriate requirements of the relevant NZ Building Code or Codes. If the flue system has been AS/NZS 2918:2001 Appendix F tested by the flue system manufacturer then their specifications for the installation of the Flue system must be adhered to.
  • Page 5 3A FLOOR PROTECTION REQUIREMENTS SOLID CONCRETE FLOOR If the Fire is to be installed onto a SOLID concrete floor protector (hearth) that has no heat sensitive materials in its construction it must meet the following MINIMIUM dimension as marked A & B from Diagram above: A 300mm from breast of fire to outer edge of concrete floor protector (hearth) B 30mm from heat sensitive floor to upper edge of concrete floor protector (hearth) The minimum width of floor protector must be 820mm and/or 410mm from the centre of...
  • Page 6 Minimum width of floor protector must be 820mm and/or 410mm from centre of Fire. Before installing your Firenzo Topaz it is important to check the condition of your masonry chimney. Ensure any cracks are sealed, loose masonry repaired and the chimney swept.
  • Page 7 4. ASSEMBLY INSTRUCTIONS Carefully remove all packaging. The firebox front when installed must be flush with the finished fireplace surround and on a level base of the same height as the finished floor protector. This may be achieved by using a concrete mix to level the base. Slide the firebox into the opening so that the outer casing return folds are flush with the finished fireplace surround.
  • Page 8 WARNING: The Fire and Flue System shall be installed in accordance with AS/NZS 2918:2001 Appendix F and the appropriate requirements of the relevant building code or codes. Firenzo/SFP Flue Kits or Davin Flue Kits must be used. CAUTION: Mixing of Fire or Flue System components from different sources or modifying the dimensional specifications of components using more than 1 metre of extra flue may result in hazardous conditions.
  • Page 9 6. INSERT FLUE SYSTEM FOR INSTALLATION IN A ZERO CLEARANCE BOX BOX - (Built-in Fire Canopy) Topaz RU Installation - April 2019...
  • Page 10 MINIMUM HEIGHT OF FLUE SYSTEM OUTLET NOTES: The flue shall extend not less than 4.6m above the top of the floor protec- tor. The flue cowl must be at least 600mm above the highest point of the roof if within 3 metres of it, or 1 metre above the roof penetration if more than 3 metres from the ridge.
  • Page 11 7. TYPICAL INSULATION REQUIREMENTS FOR MASONRY Vent: 50x100 minimum Minimum Gap so Fascia fits is 300mm If lower than 150mm - Insulated Hearth required. If greater than 150mm - Ash hearth. Topaz RU Installation - April 2019...
  • Page 12 As this fire sources its combustion air from the chimney cavity, the fire must be sealed using the yellow ISB insulation provided around the front of the casing and masonry enclosure at the FRONT ONLY to a maximum depth of 80mm. UNDER NO CIRCUMSTANCES SHOULD THE AIR SUPPLY INTO THE AIRPORTS ON THE SIDE OF THE FIRE BE RESTRICTED SIDE PILLAR CLEARANCE...
  • Page 13 8. TOPAZ IN A ZERO CLEARANCE BOX (Built-in Fire Canopy) A ZERO CLEARANCE BOX - (Built-in Fire Canopy) IS REQUIRED IF THE FIRE IS NOT BEING INSTALLED INTO A MASONRY FIREPLACE For built in Zero Clearance Box - (Built-in Fire Canopy) installations see the following pages.
  • Page 14 Topaz RU Installation - April 2019...
  • Page 15 Topaz RU Installation - April 2019...
  • Page 16 Topaz RU Installation - April 2019...
  • Page 17 Topaz RU Installation - April 2019...
  • Page 18 Topaz RU Installation - April 2019...
  • Page 19 Topaz RU Installation - April 2019...
  • Page 20 Topaz RU Installation - April 2019...
  • Page 21 Topaz RU Installation - April 2019...
  • Page 22 IMPORTANT: Heat resistant cladding must be used up to the ceiling height. Zero Clearance box must have 30mm clearance to framing all round. Minimum height to ceiling from top of Zero Clearance Box Zero Flue starter must be used 200mm Minimum height to first framing 700mm Zero clearance must...
  • Page 23 FLOOR PROTECTOR REQUIREMENTS FOR A ZERO CLEARANCE BOX - (Built-in Fire Canopy) WITH HEAT SENSITIVE FLOOR An Insulated Floor Protector (Hearth) must consist of a minimum 20mm Insulation board (Promatech H, Eterpan LD, Pacbld-Pro or product of similar thermal resistance) and tiles/slate or similar with sealed joints on top surface to protect from spilt ash/embers.
  • Page 24 CLEARANCES AND FLOOR PROTECTOR REQUIREMENTS FOR A ZERO CLEARANCE BOX (Built-in Fire Canopy) WITH HEAT SENSITIVE FLOOR Clearance Position Note (mm) Minimum from ceiling to the 1500 top of the metal canopy of the fire Minimum from the top of the ash floor protector to the bottom of the metal canopy of the fire...
  • Page 25 INSTALLATION OF KAOWOOL AND ISB INSULATION IN A ZERO CLEARANCE BOX (Built-in Fire Canopy) Topaz RU Installation - April 2019...
  • Page 26 ASSEMBLY INSTRUCTIONS ZERO CLEARANCE BOX - (Built-in Fire Canopy) Carefully remove all packaging. If installation is into a BUILT-IN CANOPY: Construct the canopy box and install into framework following the guides on pages 13 - 24 as applicable. Before insertion into the Built-In Fire Canopy place 25mm white Kaowool blan- (supplied) on top of casing page 25.
  • Page 27 PLEASE READ FULLY BEFORE PROCEEDING ANY FURTHER. KEEP THIS BOOK IN A SAFE PLACE. Please refer to “Lighting your Firenzo Woodfire Insert Fire” leaflet FIRST BURN On the INITIAL LIGHTING only, the high temperature paint finishes used on your Fire will give off smoke and odour for several hours.

  • Page 28: Flammable Liquids

    RE-LOADING AFTER AN EXTENDED BURN TIME At the end of an extended burn, re-establish the fire by adding a few small split logs, adjust the Air Control to HIGH and allow the firebox temperature to build up before adding the balance of the fuel, loading logs in a side to side configuration.

  • Page 29: Maintenance

    10. MAINTENANCE FLUE Creosote is caused by burning wet fuel, leaving particles and condensation to build up on the inside of any closed solid fuel Fire. Creosote and soot left to build up can cause decreased heat performance and flue fires. Your heating retailer or local reputable chimney sweep will be able to assist with flue cleaning.

  • Page 30: Door Glass

    Insulating material for the glass should be replaced at this time also. NEVER place glass directly against the door. Without the insulation seal tape in place, the glass is likely to shatter. Your Firenzo Dealer will be able to supply any spare parts. 12. SAFETY All surfaces on the inserts will get hot and cause burning if touched by bare hands.
  • Page 31 - a ten (10) year warranty but ONLY for the steel firebox, fascias and cast iron components of all Firenzo—wood fires. a one (1) year warranty for all other parts and finishes of a Firenzo wood fire in- cluding its refractory linings, glass, air supply components, wetback, seals, tapes, extrusions.
  • Page 32 The warranty claimant is responsible for paying any service call fees, transport charges and for any damages and loss incurred in transit to the Firenzo wood fire or its component parts and materials, to and from Firenzo or its designated accredited agent. Where Firenzo honours a...
  • Page 33 Firenzo as a deed poll in favour and for the benefit of the New Zealand consumers described in it and to be kept for inspection purposes with Firenzo’s corporate records at its specified address.
  • Page 34 WOODFIRES FIRENZO Manufacturers of: Free standing Bronte Contessa Encore Lady Kitchener Napier Viking Vision Insert Aqualux Athena Bay & Flush Forte Bay & Flush Kompact Athena Kompact Deco Kompact Diva Kompact Forte Kompact Plaza Kompact Serenity Topaz 98 Niven Street...
