2.1 Hardware Installation

Step Select a suitable location for the alarm panel in a dry location, close to an unswitched AC outlet, phone line (if required), and
Ethernet cable (if required). DO NOT mount system on an electrical box. Position system away from metal objects (e.g.,
1
appliances, furnace, duct work etc.).
Step
Gently pry the front cover from the chassis using a small slotted screwdriver in the slots provided.
2
Step • Remove the battery by depressing the plastic battery retainer on the right side of the battery with thumb to free the
battery from the housing.
3
Caution: Before installation or operation, remove and dispose of the plastic bag covering the battery.
• If required, connect the battery cable to the battery connector on the PC board.
• Remove the terminal protection from the battery.
• Install the battery cable on the battery spade lug terminals [(+)Red, (-)Black).
• To install, slide the left side of the battery [(+) terminal] under the left battery retaining bracket.
• Insert a slot screwdriver between the battery and right retaining bracket. Lever the right retaining bracket to the right
while pressing the battery firmly in place.
Step
• Route wiring through the channels provided to the wiring access hole. See Figure 2-3.
4
• Secure unit to wall using the mounting holes provided.
i
For PC9155 models equipped with an internal transformer, route AC wiring through the AC
wiring guide then through the access hole adjacent to the internal transformer. Secure the
AC line and neutral (N) wiring to the fused side of the terminal block as indicated.
For PC9155D models, route the RJ-45 terminated CAT5 Ethernet cable through the wiring
guide then through the wiring access hole and connect to the RJ-45 jack located on the
TL265GS module.
Ethernet communication lines must be connected to an approved (acceptable to local
authorities) type NID (Network Interface Device) before leaving the premises (e.g., UL
Installations, UL60950 listed NID).
If required remove/replace existing coaxial cable and connect TL265GS/GS2065 to an
external antenna.

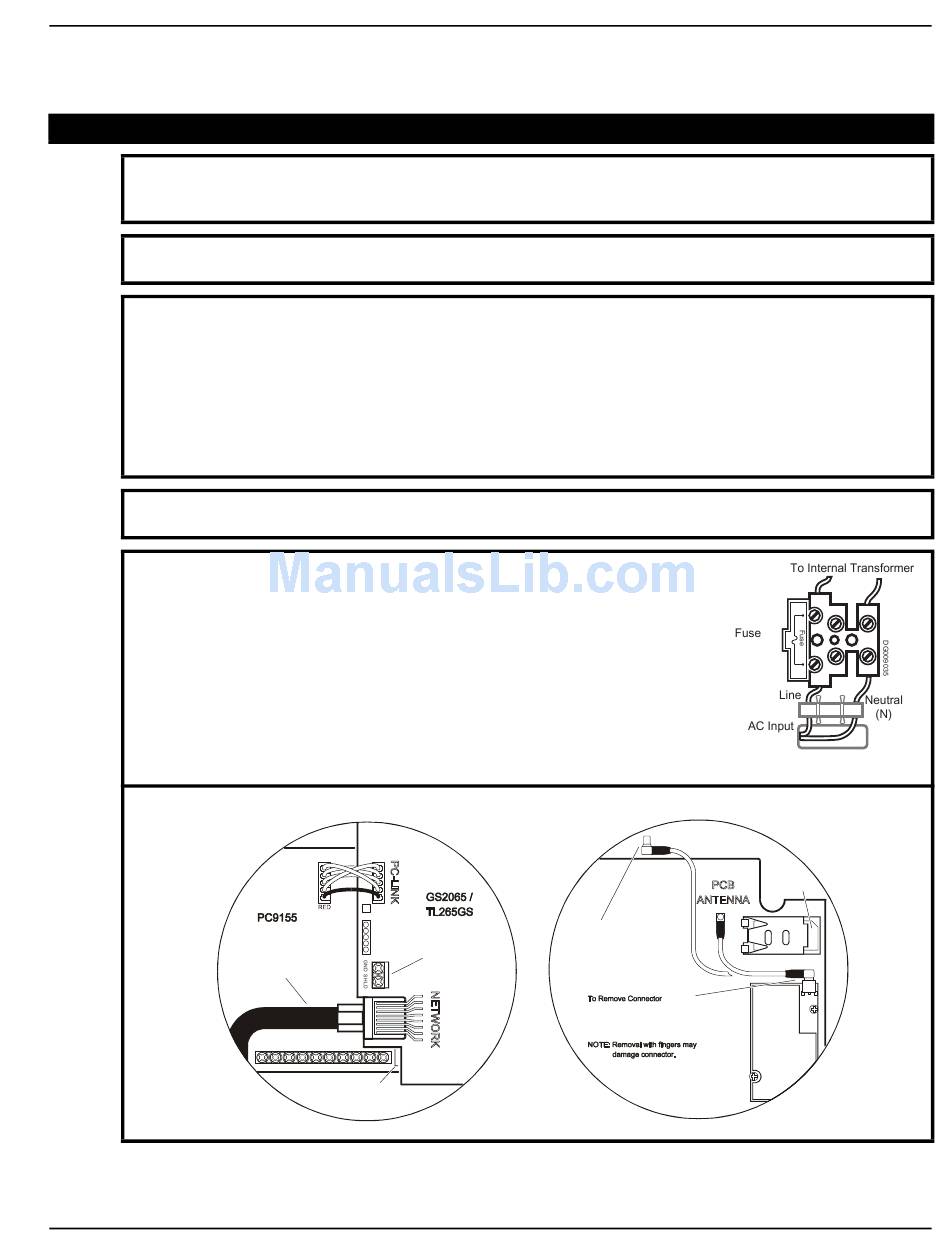

Figure 2-2 GPRS/Ethernet Module Wiring Details
Hardware Installation
Jumpering Ethernet Cable to ground
may cause communication problems.
Use with caution
To Router/Ethernet
T-1 R-1 TIP RING IO2 IO1 -AUX AUX+ AC AC
BATTERY CONNECTION (NOT SHOWN)
To Alternate External
Antenna Connection
Insert small flat head screwdriver
between cable and Rx/Tx module
then gently pry plug loose.
2-1
2 Installation
250V
AC/
160mA
Figure 2-1 AC Fuse Block
SIM Card
