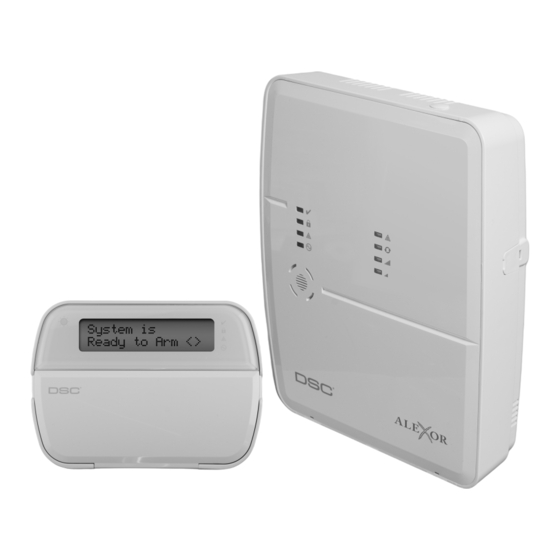

Alexor PC9155I-433 Installation Manual

2-way wireless security suite
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2-Way Wireless Security Suite
v1.1 Installation Guide
Models:
PC9155-433/868
PC9155G-433/868
PC9155D-433/868
PC9155I-433/868
Used with:
WT5500-433/868
WT5500P-433/868
Series 2-way Wireless Keypad
IMPORTANT: This manual contains information on limitations regarding product use and function and information
on the limitations as to liability of the manufacturer. The entire manual should be carefully read.
TELEPERMIT
These DSC Security Alarm
Systems may be connected
to the Telecom Network
PTC 211 / 09 /017
PC9155-433
PTC 211 / 09 /018
PC9155D-433
N11427
PTC 211 / 09 /019
PC9155G-433

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC9155I-433 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alexor PC9155I-433

Summary of Contents for Alexor PC9155I-433

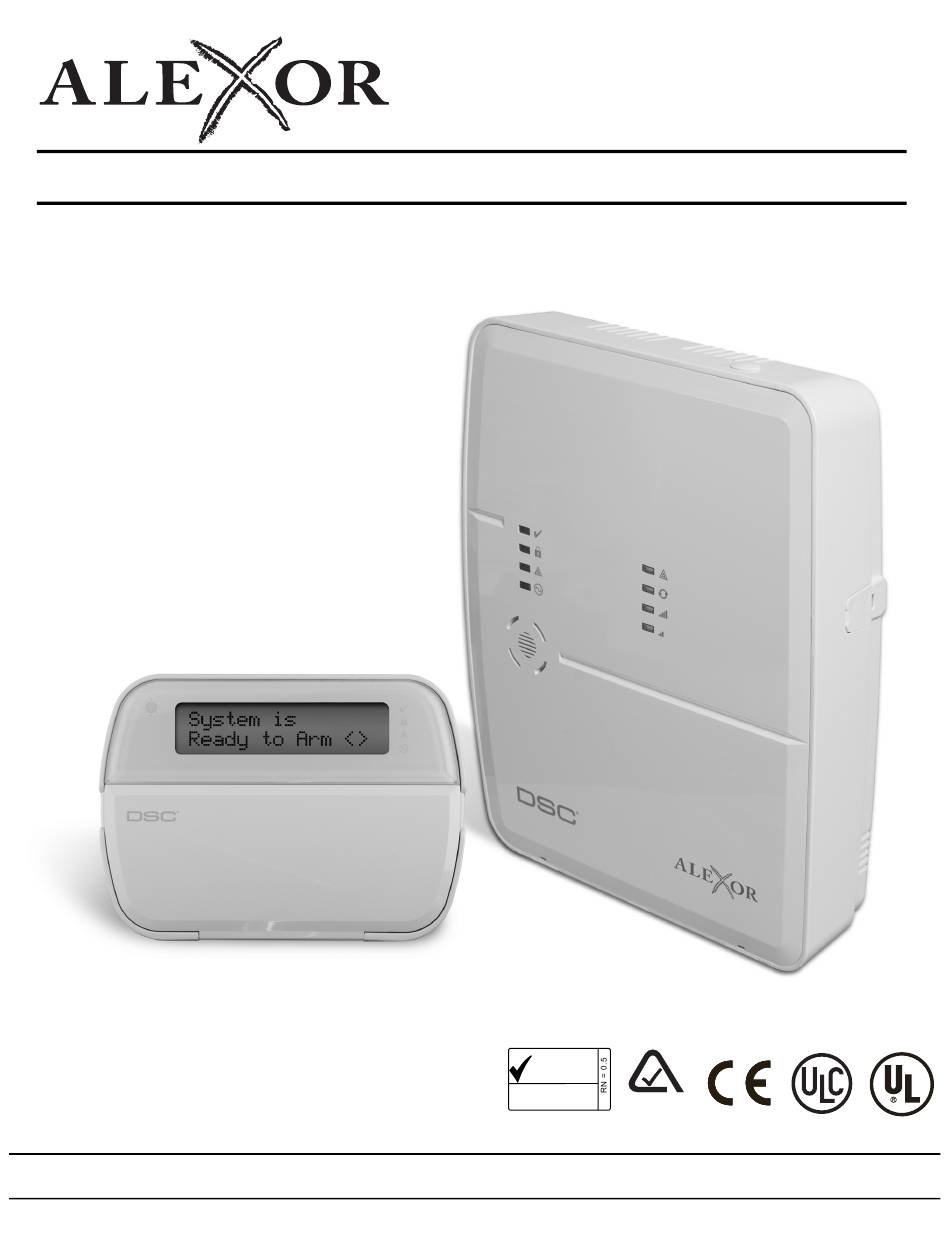

  • Page 1 2-Way Wireless Security Suite v1.1 Installation Guide Models: PC9155-433/868 PC9155G-433/868 PC9155D-433/868 PC9155I-433/868 Used with: WT5500-433/868 WT5500P-433/868 Series 2-way Wireless Keypad TELEPERMIT These DSC Security Alarm Systems may be connected to the Telecom Network PTC 211 / 09 /017 PC9155-433 PTC 211 / 09 /018...
