1c. PC5950 2-Way Audio Verification Module Wiring
• Install the PC5950 in a metal cabinet secured to a wall.
• Power down the PC9155 if required.
• Route wiring to the PC9155 through the wiring guide.
• Route wiring to the audio stations as indicated (2 Max).
• Ensure telephone line wiring enables the PC9155 to seize the line.
• Test System. Refer to the PC5950 Installation Guide.
Refer to Appendix D: 2-Way Audio Verification (PC5950).

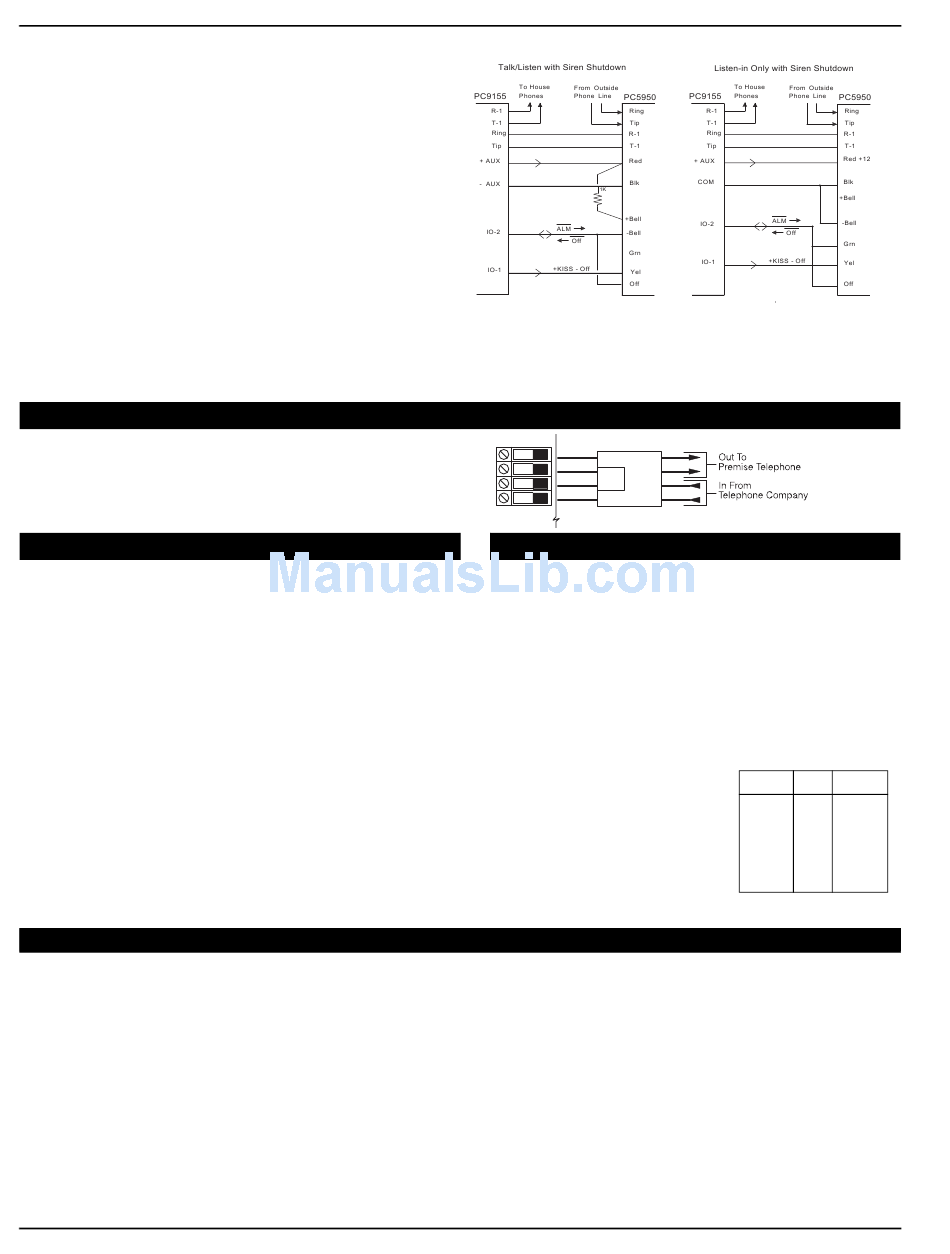

Wiring diagram 1, Talk/Listen with Siren Shutdown, does a full
i
talk/listen in session for silent alarms. If a listen in only session is
required for silent alarms, use wiring diagram 2, Listen-in Only
with Siren Shutdown.
2. Telephone Line Wiring
Wire the incoming line (phone company) and outgoing line (premises) to the
connection terminals of an RJ31x connector as indicated. This will allow line
seizure if required by the alarm system. Use 24AWG minimum for wiring.
Communication formats are programmed in section [350].
Telephone call directions are programmed in sections [351]-[376].
3. Battery
Sealed Lead Acid Battery
Model FP 1223 ................................. 12V
Standby ...............................................................................................24Hr
Battery Replacement
Removal:
(1) Disconnect the RED (+) and BLACK (-) connectors from the battery.
(2) Depress the plastic battery retainer on the right side of the battery with
thumb to free battery from the housing, then remove battery.
Replacement:
(1) Remove terminal protection from battery.
(2) Install battery cable on battery spade lug terminals.
(3) Slide left side of battery [(+) terminal] under the left battery retaining
bracket.
(4) Insert a slot screwdriver between the battery and right retaining bracket.
Lever the right retaining bracket to the right while pressing the battery firmly in
place.
(5) If required route battery cable through wire guides and connect to the battery
connector.
• DSC recommends battery replacement every 3-5 years.
• Dispose of battery in accordance with local regulations.
Do NOT connect transformer to a receptacle controlled by a switch. Use a Class 2, power limited transformer for UL/ULC installations.

2.3 Wireless Device Enrollment

Installing a one-way or two-way wireless device requires programming the system with the Electronic Serial Number (ESN) so that it can be
identified when an event is communicated. Two-way devices must also initiate communication with the control panel to complete the enrollment
process. The control panel will then assign the device a unique system ID, device ID and encryption key. This information is sent to the device
and is stored in its memory. The system uses these ID's and encryption to communicate events.
Methods of Enrollment
Two methods of enrollment are available:
• Quick Enroll – Used to enroll new devices on the system. (See below for procedure). The
way enrolment communications in the background. The Two-way device and One-way device enrollment procedures are identical.
• Manual or DLS Enroll – See Installer Programming or DLS Programming (section [804]). Manual or DLS enrollment of two-way
wireless keys requires the device to be physically triggered to complete the enrollment.
2.3Ah@20Hr. discharge rate
DC
2-4
PC5950 Programming
Section 01 - Set to 1 (Hard Trip)
Section 10 - Set to 2 (Trigger
Enable:Auto Trip by Bell or Green)
Program I/O 1 - Audio Verification PGM
Program I/O 2 - Audio Verification Monitor Zone
T-1
BRN
R-1
GRA
TIP
GRN
RING RED RJ-31X
4. AC Wiring
AC Transformer Requirements:
Primary: 120V , 60Hz., 0.200A (For UL/ULC Listed installations)
AC
240V , 50Hz., 0.100A
AC
(Fuse: 503 Si, 250V/160mA Fast-Blo)
Secondary: 16.5V /20VA
AC
The following plug-in transformers shall be used:
North America (UL Listed Installations)
PTD1620U-CC
Canada (ULC Listed Installations)
PTD1620
Internal Transformer
Secondary Wire Run Distance
Quick Enroll
PC5950 Programming
Section 01 - Set to 1 (Hard Trip)
Section 07 - Set to 1 (Trigger High)
Section 10 - Set to 2 (Trigger Enable:
Auto Trip by Bell or Green)
AWG Feet Meters
24 5.8 1.8
22 9.3 2.8
20 14.8 4.5
18 23.5 7.2
procedure performs two-
