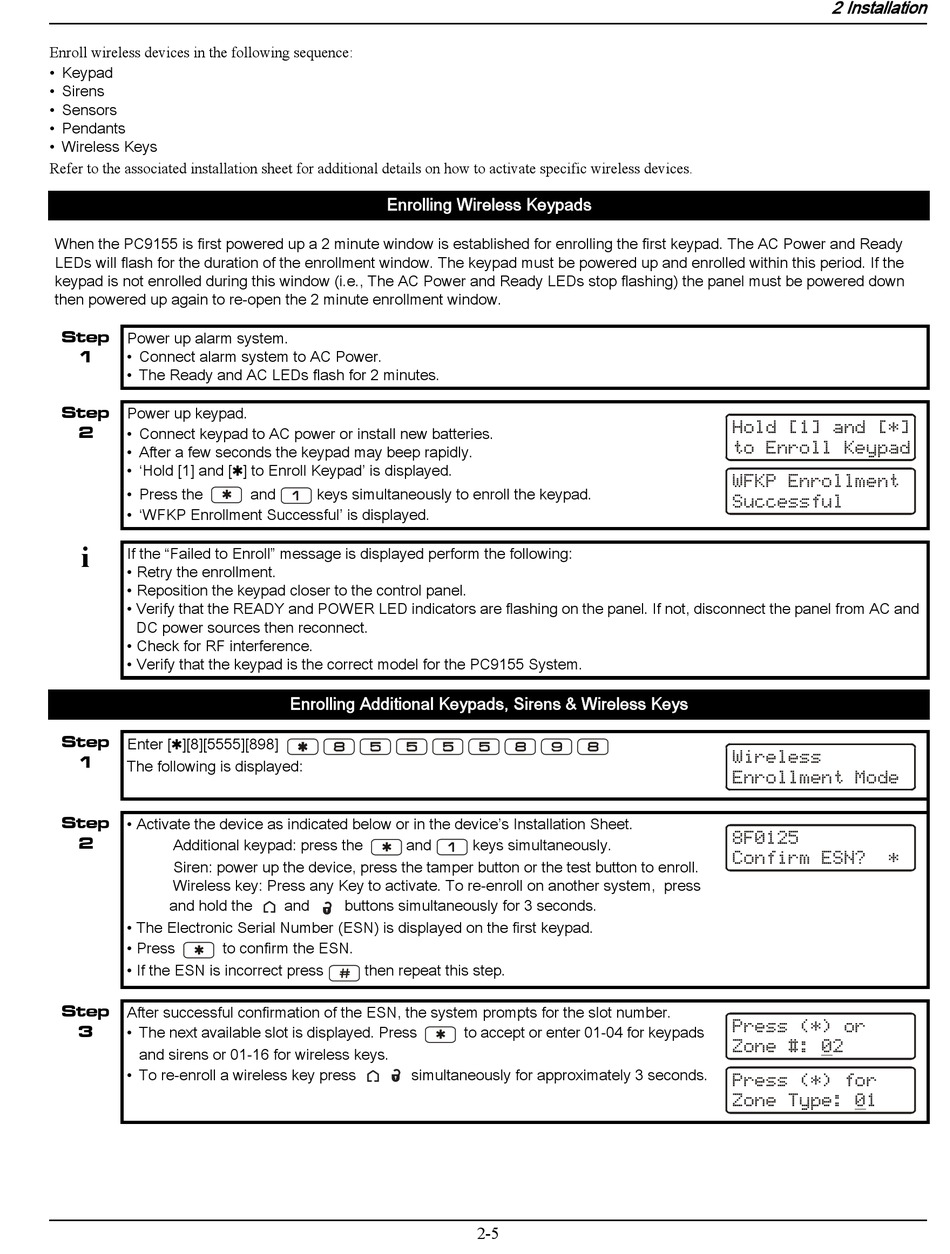

Alexor PC9155-433/868 Installation Manual page 13

Enroll wireless devices in the following sequence:
• Keypad
• Sirens
• Sensors
• Pendants
• Wireless Keys
Refer to the associated installation sheet for additional details on how to activate specific wireless devices.
When the PC9155 is first powered up a 2 minute window is established for enrolling the first keypad. The AC Power and Ready
LEDs will flash for the duration of the enrollment window. The keypad must be powered up and enrolled within this period. If the
keypad is not enrolled during this window (i.e., The AC Power and Ready LEDs stop flashing) the panel must be powered down
then powered up again to re-open the 2 minute enrollment window.
Step Power up alarm system.
• Connect alarm system to AC Power.
1
• The Ready and AC LEDs flash for 2 minutes.
Step Power up keypad.
2 • Connect keypad to AC power or install new batteries.
• After a few seconds the keypad may beep rapidly.
• 'Hold [1] and [ ] to Enroll Keypad' is displayed.
• Press the
,
• 'WFKP Enrollment Successful' is displayed.
i
If the "Failed to Enroll" message is displayed perform the following:
• Retry the enrollment.
• Reposition the keypad closer to the control panel.
• Verify that the READY and POWER LED indicators are flashing on the panel. If not, disconnect the panel from AC and
DC power sources then reconnect.
• Check for RF interference.
• Verify that the keypad is the correct model for the PC9155 System.
Step
Enter [ ][8][5555][898]
1
The following is displayed:
Step • Activate the device as indicated below or in the device's Installation Sheet.
2
Additional keypad: press the
Siren: power up the device, press the tamper button or the test button to enroll.
Wireless key: Press any Key to activate. To re-enroll on another system, press
and hold the
• The Electronic Serial Number (ESN) is displayed on the first keypad.
• Press to confirm the ESN.
,
• If the ESN is incorrect press
Step After successful confirmation of the ESN, the system prompts for the slot number.
3 • The next available slot is displayed. Press
and sirens or 01-16 for wireless keys.
• To re-enroll a wireless key press
Enrolling Wireless Keypads
and keys simultaneously to enroll the keypad.
Enrolling Additional Keypads, Sirens & Wireless Keys
and
,
and buttons simultaneously for 3 seconds.
then repeat this step.
simultaneously for approximately 3 seconds.
keys simultaneously.
to accept or enter 01-04 for keypads
,
2-5
2 Installation
Hold [1] and [*]
to Enroll Keypad
WFKP Enrollment
Successful
Wireless
Enrollment Mode
8F0125
Confirm ESN? *
Press (*) or
Zone #: 0 2
Press (*) for
Zone Type: 0 1
