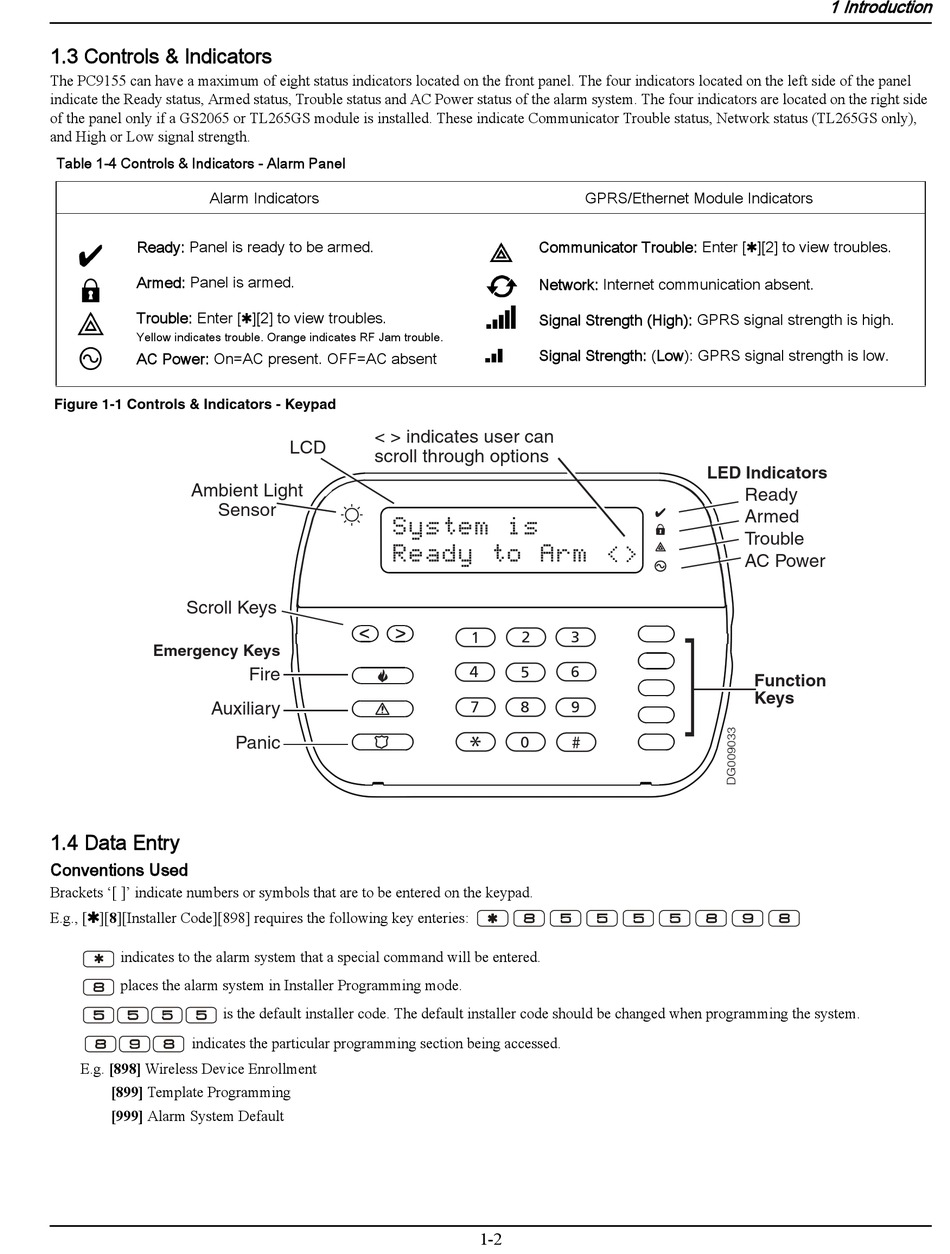

1.3 Controls & Indicators
The PC9155 can have a maximum of eight status indicators located on the front panel. The four indicators located on the left side of the panel
indicate the Ready status, Armed status, Trouble status and AC Power status of the alarm system. The four indicators are located on the right side
of the panel only if a GS2065 or TL265GS module is installed. These indicate Communicator Trouble status, Network status (TL265GS only),
and High or Low signal strength.
Table 1-4 Controls & Indicators - Alarm Panel
Alarm Indicators
Ready: Panel is ready to be armed.
Armed: Panel is armed.
Trouble: Enter [ ][2] to view troubles.
Yellow indicates trouble. Orange indicates RF Jam trouble.
AC Power: On=AC present. OFF=AC absent
Figure 1-1 Controls & Indicators - Keypad
Ambient Light
Sensor
Scroll Keys
Emergency Keys
Auxiliary

1.4 Data Entry

Conventions Used
Brackets '[ ]' indicate numbers or symbols that are to be entered on the keypad.
E.g., [ ][8][Installer Code][898] requires the following key enteries:
indicates to the alarm system that a special command will be entered.
,
places the alarm system in Installer Programming mode.
is the default installer code. The default installer code should be changed when programming the system.
indicates the particular programming section being accessed.
E.g. [898] Wireless Device Enrollment
[899] Template Programming
[999] Alarm System Default
< > indicates user can
LCD
scroll through options
System is
Ready to Arm
Fire
Panic
GPRS/Ethernet Module Indicators
Communicator Trouble: Enter [ ][2] to view troubles.
Network: Internet communication absent.
Signal Strength (High): GPRS signal strength is high.
Signal Strength: (Low): GPRS signal strength is low.
< >
1 2 3
6
4 5
7 8 9
*
#
0
1-2
1 Introduction
LED Indicators
Ready
Armed
Trouble
AC Power
Function
Keys
