PC9155 Wireless Alarm System

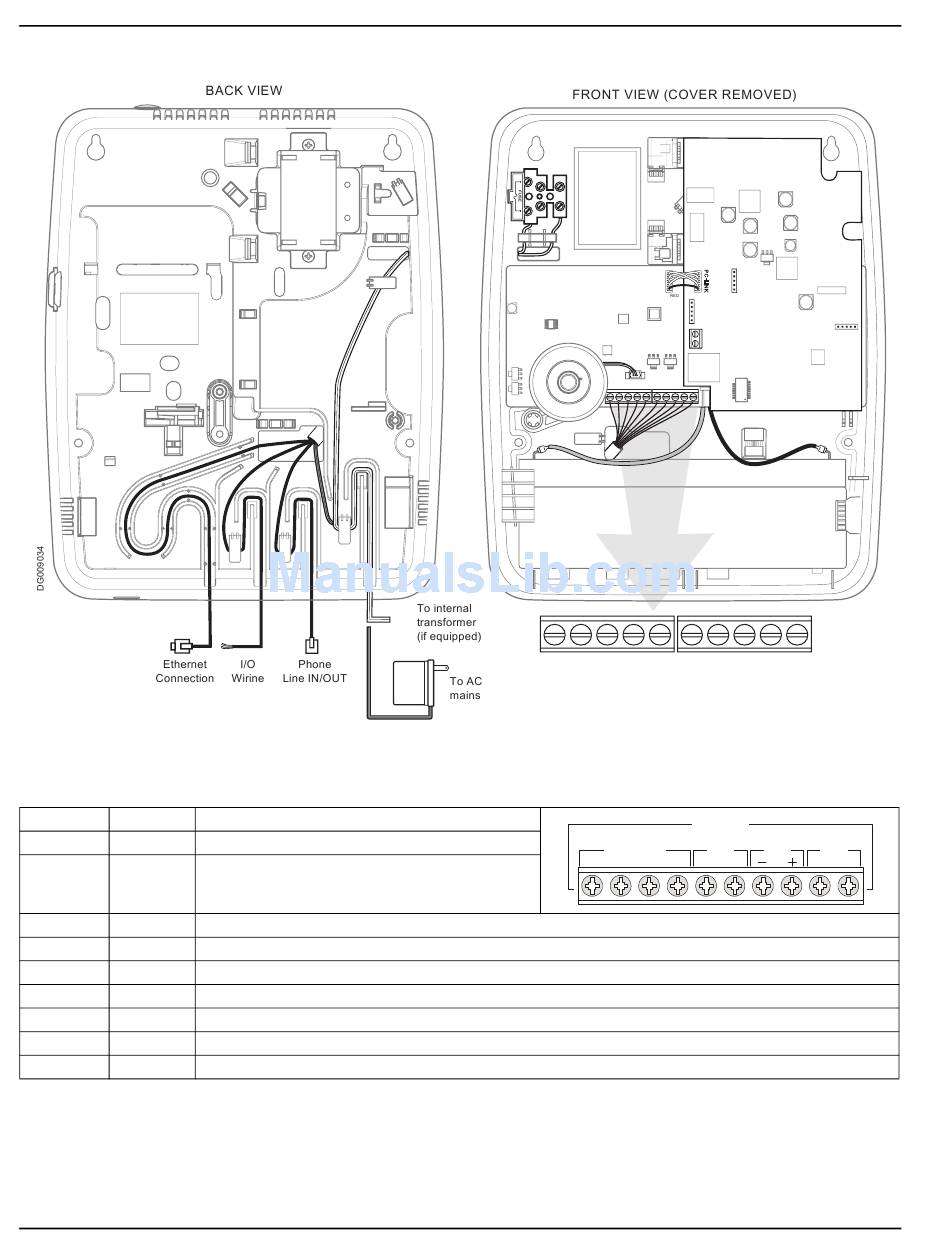

Figure 2-3 Mounting & Wiring Details
CAUTION: The Ethernet communication lines must be connected first to an Approved (acceptable to the local authorities) type
NID (Network Interface Device) before leaving the premises (e.g., UL installations, UL60950 Listed NID).
Phone Line
T1-Brn
R1- Gra
Tip - Grn
Ring - Red
I/O
I/O - 1
I/O - 2
Aux
Aux -
Aux +
AC
~
~
Internal
Transformer
Version Only
Connects to in-house phone line
Connects to in-house phone line
Connects to outside phone Line. Allows system to seize
the phone line from devices connected to T1-R1
Connects to outside phone Line. Allows system to seize the phone line from devices connected to T1-R1
Can be configured as a PGM output (50mA) or hard wired zone input (Zone 33)
Can be configured as a PGM output (50mA) or hard wired zone input (Zone 34)
Provides common connection for hard-wired zones and Aux+ power
Provides +12V
, 200mA (Max.) for PGMs and modules
DC
Connects directly to external 16.5V
Connects directly to external 16.5V
AC
T-1 R-1 TIP RING I/O2 I/O1
transformer or fused internal transformer
AC
transformer or fused internal transformer
AC
2-2
Internal
Transformer
Version Only
- AUX + AC AC
PC9155
Telephone
I/O
T-1 R-1 Tip Ring
2
1
Aux
AC
