2.2 Wiring

1. I/O Wiring
The two I/O terminals can be programmed as hard-wired zone inputs and/or PGM outputs. See programming section [013] Opt [1,2].
1a. Zone Wiring
Zones 1 - 32 are reserved for wireless zones. If programmed as zone inputs, I/O-
1 is zone 33 and I/O-2 is zone 34.
Zones can be wired for Normally Open (NO) contacts with single-end-of-line
resistors or Normally Closed (NC) contacts with single-end-of-line or double-
end-of-line resistors.
Observe the following guidelines.
• For UL/ULC listed installations use SEOL or DEOL only
• Use minimim 22AWG, maximum 18 AWG wire
• DO NOT use shielded wire
• Wire run resistance shall not exceed 100
Burglary Zone Wiring Chart
Wire Size Max wire length to end-of-line resistor
AWG mm Feet
22 0.65 3000
20 0.81 4900
19 0.91 6200
18 1.02 7800
Figures are based on maximum wiring resistance of 100 Ω
Zones 33 and 34 are defaulted for SEOL resistors
• Programming section [133]-[134] opt.[14] selects Normally Closed or
Normally Open
• Programming section [133-[134] opt.[15] selects SEOL resistors
• Programming section [133]-[134] opt.[16] selects DEOL resistors
Zone Status - Loop Resistance/Loop Status (DEOL only)
• Fault - 0 (shorted wire/loop)(shorted wire to 4.5KOhm)
Ω
• Secure - 5,600 (contact closed)(4.5KOhm to 6.25KOhm)
Ω
• Violated - 11,200 (contact open)(13.5KOhm to open)
Ω
• Tamper - infinite (broken wire, open)(9KOhm to 13.5KOhm)
1b. Programmable Output (PGM) and Aux Wiring
I/O terminals configured as Programmable Outputs (PGMs) switch to ground
when activated by the alarm system. The PGMs are open collector outputs.
With a 45 mA load, the voltage measured at the PGM and Aux + shall be
approximately 8V with respect to ground. With a 25 mA load, the voltage mea-
sured shall be approximately 10V.
Connect the positive side of the device to the Aux+ terminal.
Connect the negative side of the device to the I/O terminal.
Each PGM can provide 50mA maximum output.
NOTE: The alarm system can provide 200mA maximum of AUX current for
PGMs, relays, LEDs etc.
The AUX output shall be used only for residential burglary applications.
Ω
Meters
914
1493
1889
2377
2-3

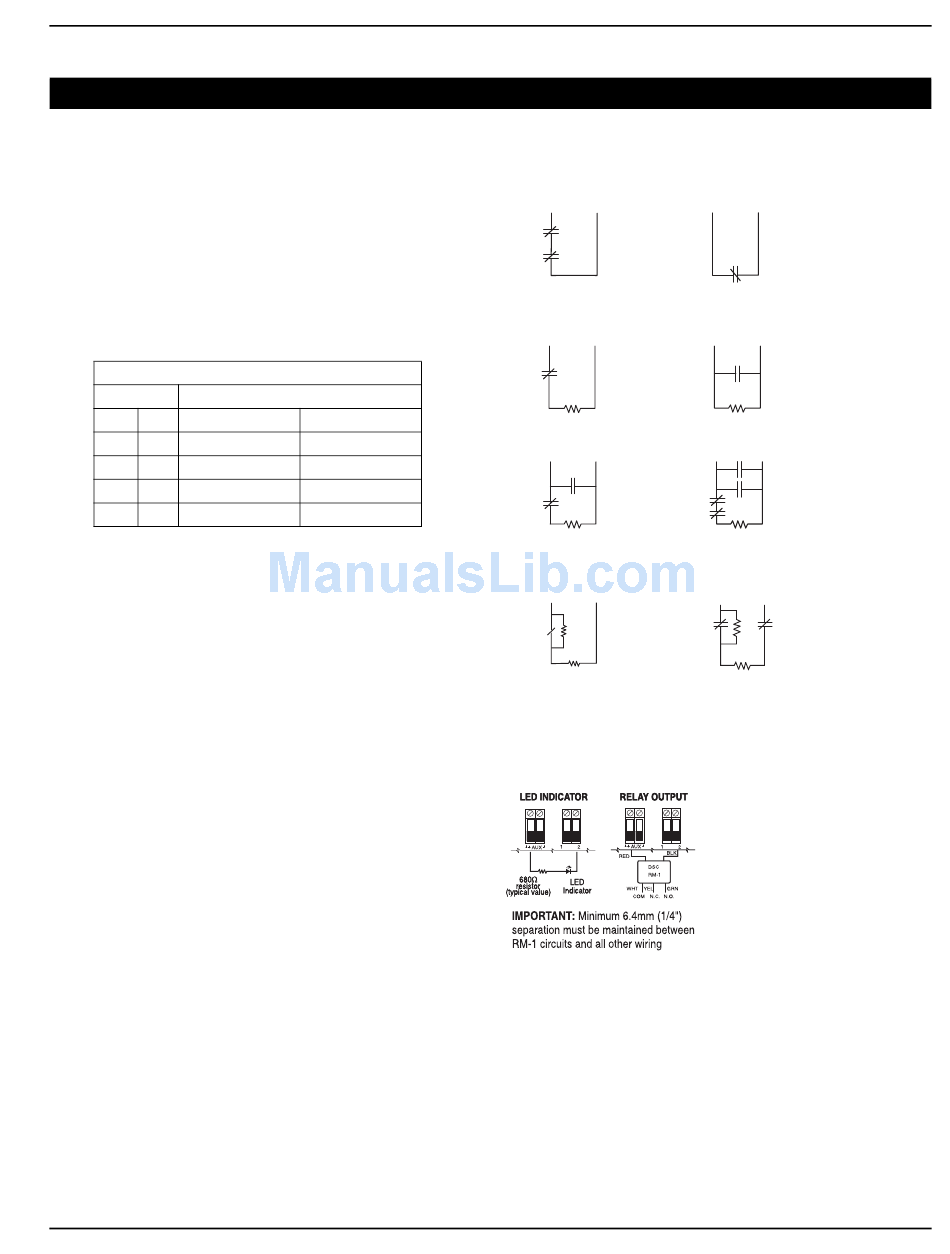

Normally Closed Loops - Do NOT use for UL Installations
Any I/O AUX-
Terminal Terminal
2 NORMALLY CLOSED
CONTACTS WITH
NO END OF LINE
RESISTOR
Single End-of-Line Resistor Wiring
AUX-
Any I/O
Terminal
Terminal
1 NORMALLY
CLOSED
CONTACT WITH
5600Ω
END OF LINE
RESISTOR
Any I/O
AUX-
Terminal
Terminal
1 NORMALLY OPEN
CONTACT AND
1 NORMALLY CLOSED
CONTACT WITH
5600Ω END OF LINE
RESISTOR
Double End-of-Line Resistor Wiring
Any I/O AUX-
Terminal Terminal
ALARM
ALARM DEOL CIRCUIT
CONTACT
CONTACT
1 NORMALLY
CLOSED CONTACT
WITH 5600Ω
END OF LINE RESISTORS
I/O I/O
2 Installation
Any I/O AUX-
Terminal Terminal
1 NORMALLY CLOSED
CONTACT WITH
NO END OF LINE
RESISTOR
Any I/O
AUX-
Terminal
Terminal
1 NORMALLY OPEN
CONTACT WITH
5600 Ω
END OF LINE RESITSTOR
Any I/O
AUX-
Terminal
Terminal
2 NORMALLY OPEN
CONTACTS AND
2 NORMALLY CLOSED
CONTACTS WITH
5600Ω END OF LINE
RESISTOR
Any I/O AUX-
Terminal
Terminal
DEOL CIRCUITS
TEMPER
2 NORMALLY
CONTACT
CLOSED CONTACTS
WITH 5600Ω END
OF LINE & TAMPER
RESISTOR
LED output with:
Current limiting resistor and
optional relay driver output.
Compatible initiating devices intended
to be used on the AUX output shall be
rated for the range: 9.6VDC to
13.8VDC min.
