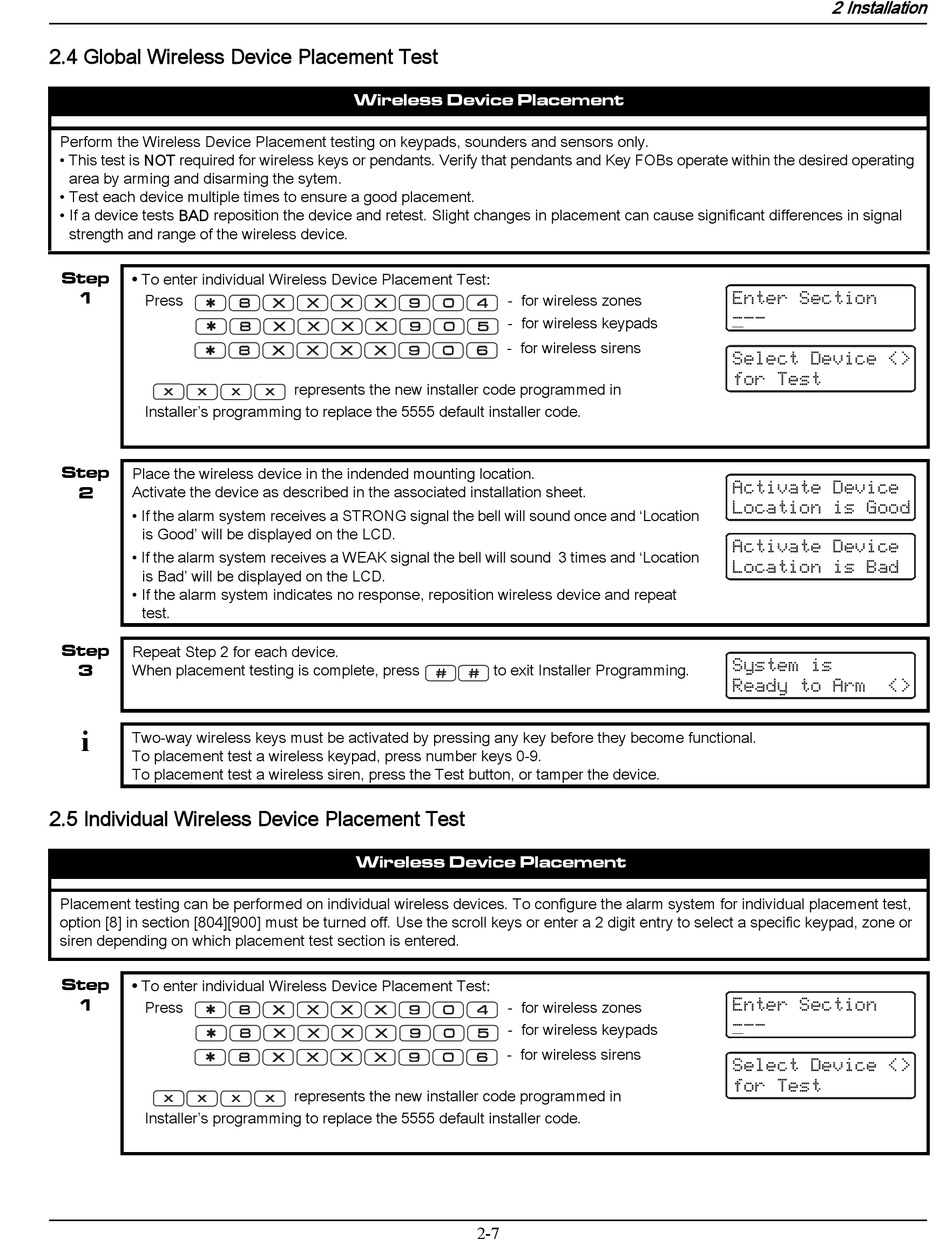

2.4 Global Wireless Device Placement Test

Perform the Wireless Device Placement testing on keypads, sounders and sensors only.
• This test is NOT required for wireless keys or pendants. Verify that pendants and Key FOBs operate within the desired operating
area by arming and disarming the sytem.
• Test each device multiple times to ensure a good placement.
• If a device tests BAD reposition the device and retest. Slight changes in placement can cause significant differences in signal
strength and range of the wireless device.
Step • To enter individual Wireless Device Placement Test:
1
Press
,
,
,
Installer's programming to replace the 5555 default installer code.
Step Place the wireless device in the indended mounting location.
Activate the device as described in the associated installation sheet.
2
• If the alarm system receives a STRONG signal the bell will sound once and 'Location
is Good' will be displayed on the LCD.
• If the alarm system receives a WEAK signal the bell will sound 3 times and 'Location
is Bad' will be displayed on the LCD.
• If the alarm system indicates no response, reposition wireless device and repeat
test.
Step Repeat Step 2 for each device.
When placement testing is complete, press
3
i
Two-way wireless keys must be activated by pressing any key before they become functional.
To placement test a wireless keypad, press number keys 0-9.
To placement test a wireless siren, press the Test button, or tamper the device.

2.5 Individual Wireless Device Placement Test

Placement testing can be performed on individual wireless devices. To configure the alarm system for individual placement test,
option [8] in section [804][900] must be turned off. Use the scroll keys or enter a 2 digit entry to select a specific keypad, zone or
siren depending on which placement test section is entered.
Step • To enter individual Wireless Device Placement Test:
1
Press
,
,
,
Installer's programming to replace the 5555 default installer code.
Wireless Device Placement
represents the new installer code programmed in
Wireless Device Placement
represents the new installer code programmed in
- for wireless zones
- for wireless keypads
- for wireless sirens
to exit Installer Programming.
- for wireless zones
- for wireless keypads
- for wireless sirens
2-7
2 Installation
Enter Section
- --
Select Device <>
for Test
Activate Device
Location is Good
Activate Device
Location is Bad
System is
Ready to Arm <>
Enter Section
- --
Select Device <>
for Test
