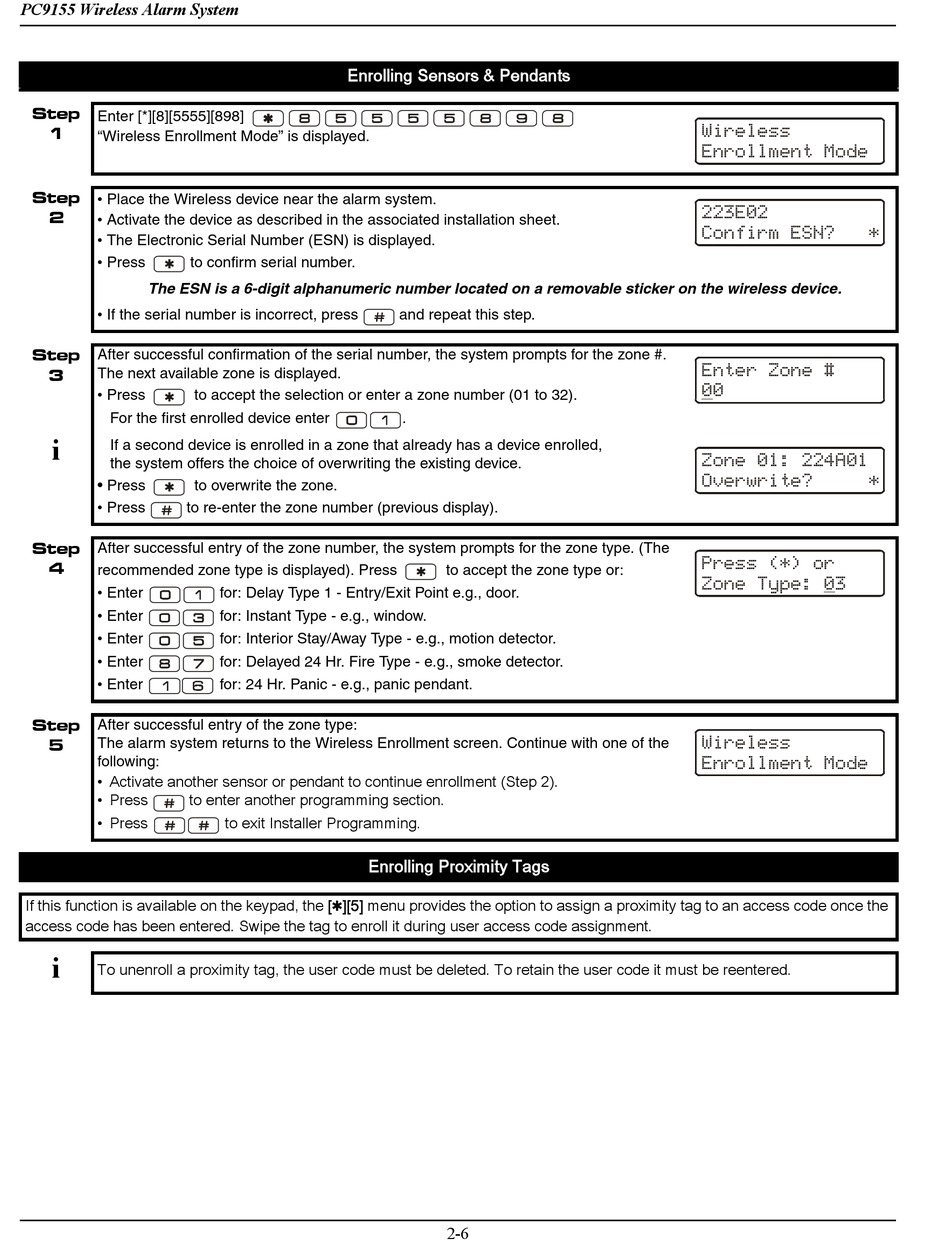

Alexor PC9155-433/868 Installation Manual page 14

PC9155 Wireless Alarm System
Step
Enter [*][8][5555][898]
1
"Wireless Enrollment Mode" is displayed.
Step • Place the Wireless device near the alarm system.
2
• Activate the device as described in the associated installation sheet.
• The Electronic Serial Number (ESN) is displayed.
• Press
,
to confirm serial number.
The ESN is a 6-digit alphanumeric number located on a removable sticker on the wireless device.
• If the serial number is incorrect, press
Step
After successful confirmation of the serial number, the system prompts for the zone #.
3
The next available zone is displayed.
• Press
,
to accept the selection or enter a zone number (01 to 32).
For the first enrolled device enter
i
If a second device is enrolled in a zone that already has a device enrolled,
the system offers the choice of overwriting the existing device.
,
• Press to overwrite the zone.
• Press
to re-enter the zone number (previous display).
Step
After successful entry of the zone number, the system prompts for the zone type. (The
4
recommended zone type is displayed). Press
• Enter
• Enter
• Enter
• Enter
• Enter
Step
After successful entry of the zone type:
5
The alarm system returns to the Wireless Enrollment screen. Continue with one of the
following:
• Activate another sensor or pendant to continue enrollment (Step 2).
• Press to enter another programming section.
• Press
If this function is available on the keypad, the [ ][5] menu provides the option to assign a proximity tag to an access code once the
access code has been entered. Swipe the tag to enroll it during user access code assignment.
i
To unenroll a proximity tag, the user code must be deleted. To retain the user code it must be reentered.
Enrolling Sensors & Pendants
for: Delay Type 1 - Entry/Exit Point e.g., door.
for: Instant Type - e.g., window.
for: Interior Stay/Away Type - e.g., motion detector.
for: Delayed 24 Hr. Fire Type - e.g., smoke detector.
for: 24 Hr. Panic - e.g., panic pendant.
to exit Installer Programming.
Enrolling Proximity Tags
and repeat this step.
.
,
to accept the zone type or:
2-6
Wireless
Enrollment Mode
223E02
Confirm ESN? *
Enter Zone #
0 0
Zone 01: 224A01
Overwrite? *
Press (*) or
Zone Type: 0 3
Wireless
Enrollment Mode
