Johnson Controls AS-CVTPROx00-1 Installation Instructions Manual

AS-CVTPROx00-1 Zone Bus/N2 Bus Interface Converter
Application
The AS-CVTPROx00-1 Zone Bus/N2 Interface
Converter is portable converter designed to provide a
communication interface between the room sensors
and controllers operating on a Zone Bus or N2 Bus
and a Personal Computer (PC) or specified models of
the Palm TM family of Personal Digital Assistants
(PDAs). See Table 2 for compatible Palm devices. See
Table 4 for compatible tools, Operating Systems (OSs)
and controllers.
Note: The AS-CVTPROx00-1 converter can be used
in place of the MM-CVT101-0 converter module. The
MM-CVT101-0 converter is not compatible with
Windows NT®, Windows® 2000 and later versions of
Windows OSs.
Connection Ports
The back of the CVTPRO converter (Figure 1) has
ports for connections to a Personal Computer (PC), a
Palm handheld PDA, an External Power Adapter, and
a Zone Bus/N2 Bus RJ11 6-pin network cable phone
plug.
6-Pin RJ11 Phone Jack
for Zone Bus/N2 Bus
Network Connection
Serial Port for PC or
Palm m1xx or m5xx Devices

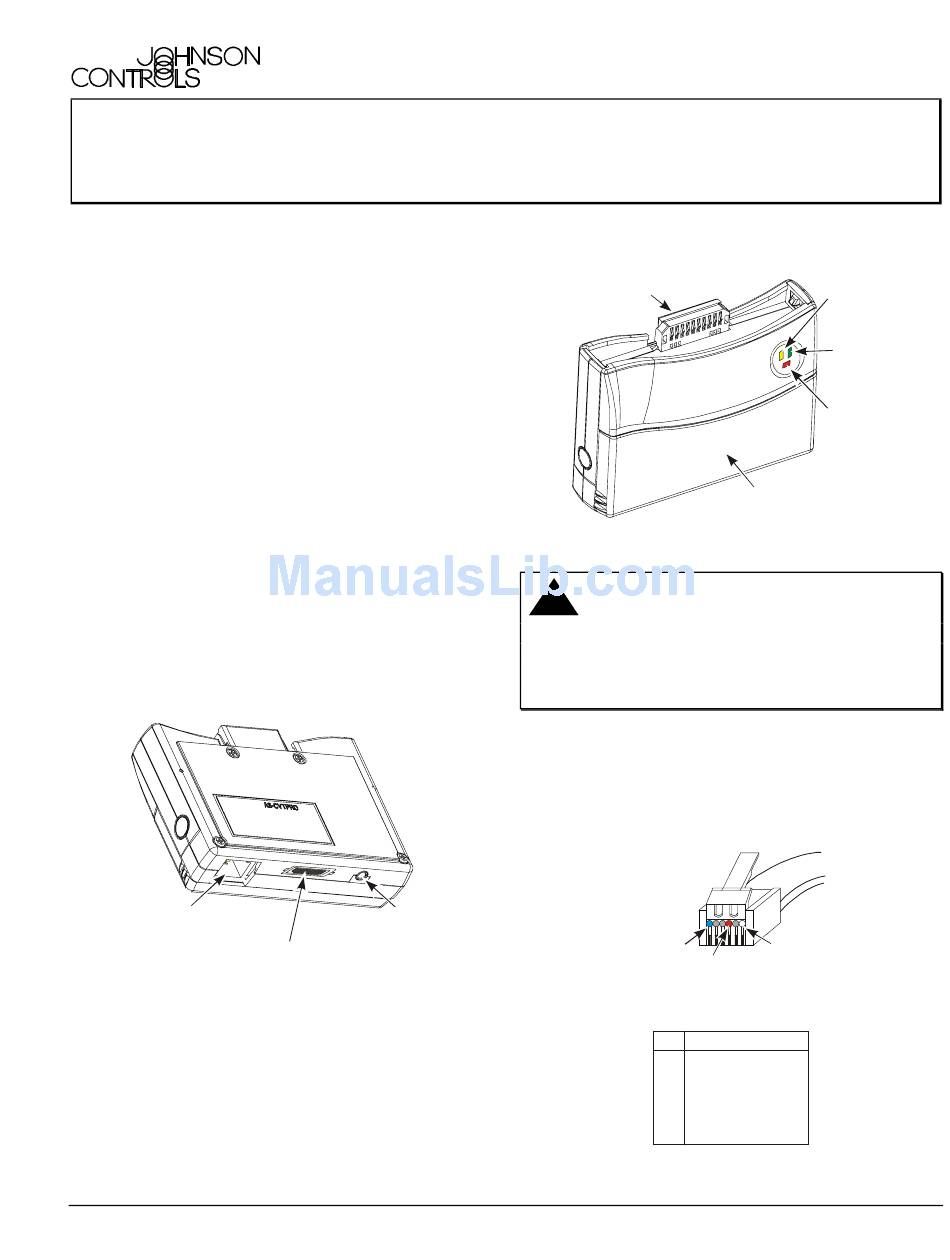

Figure 1: CVTPRO Converter Back
The front of the CVTPRO converter (Figure 2) shows
the mating connector for a Palm III, Palm V, or
Palm VII PDA. Green and yellow Light-Emitting Diodes
(LEDs) display the N2 communication status of the
unit relative to the field device. The red LED shows
power status.
© 2003 Johnson Controls, Inc.
Part No. 24-9544-0, Rev. C
Connector for Palm V Adapter,
!
Do not apply power to the system before checking
all wiring connections. Short circuited or improperly
connected wires may result in permanent damage to
the equipment.

Cable Connectors

Figure 3 shows the 6-pin phone plug end of the
N2 cable used by the CVTPRO converter for N2 Bus
communication. For Zone Bus communication, always
use standard Zone Bus cables.
Input Jack for
External Power
Adapter
Figure 3: N2 Cable 6-Pin RJ11 Network Phone Plug
Installation Instructions
Palm III, or Palm VII
Battery Cover
Figure 2: CVTPRO Converter Front
CAUTION: Risk of Property Damage
N2+ (Blue)
N2 Ref. (Red)
Pin Signal
1 N2+
2 Zone Bus Power
3 GND
4 N2 Ref
5 Zone Bus Signal
6 N2-
Figure 4: Zone Bus/N2 Bus RJ11 Network
Phone-Jack Pin Designations
Issue Date April 9, 2003
Yellow LED
(Receiving)
Green LED
(Transmitting)
Red LED
(Power)
N2- (White)
www.johnsoncontrols.com
1
