Connecting to the CVTPRO Converter
Figure 5 illustrates the potential connections
between a CVTPRO converter and other devices.
Refer to Table 1 and Table 2 for more information on
cables and Palm devices. See Figure 6 and Figure 7
for more detail about N2 Bus connections.
Personal Computer
or
Notes:
1. Do not connect the CVTPRO converter to the Palm device and laptop/PC at the same time.
2. Unplug the Palm device from the CVTPRO converter when not in use (conserves battery power).
3. The CVTPRO200- (European version) does not ship with an external power adapter.

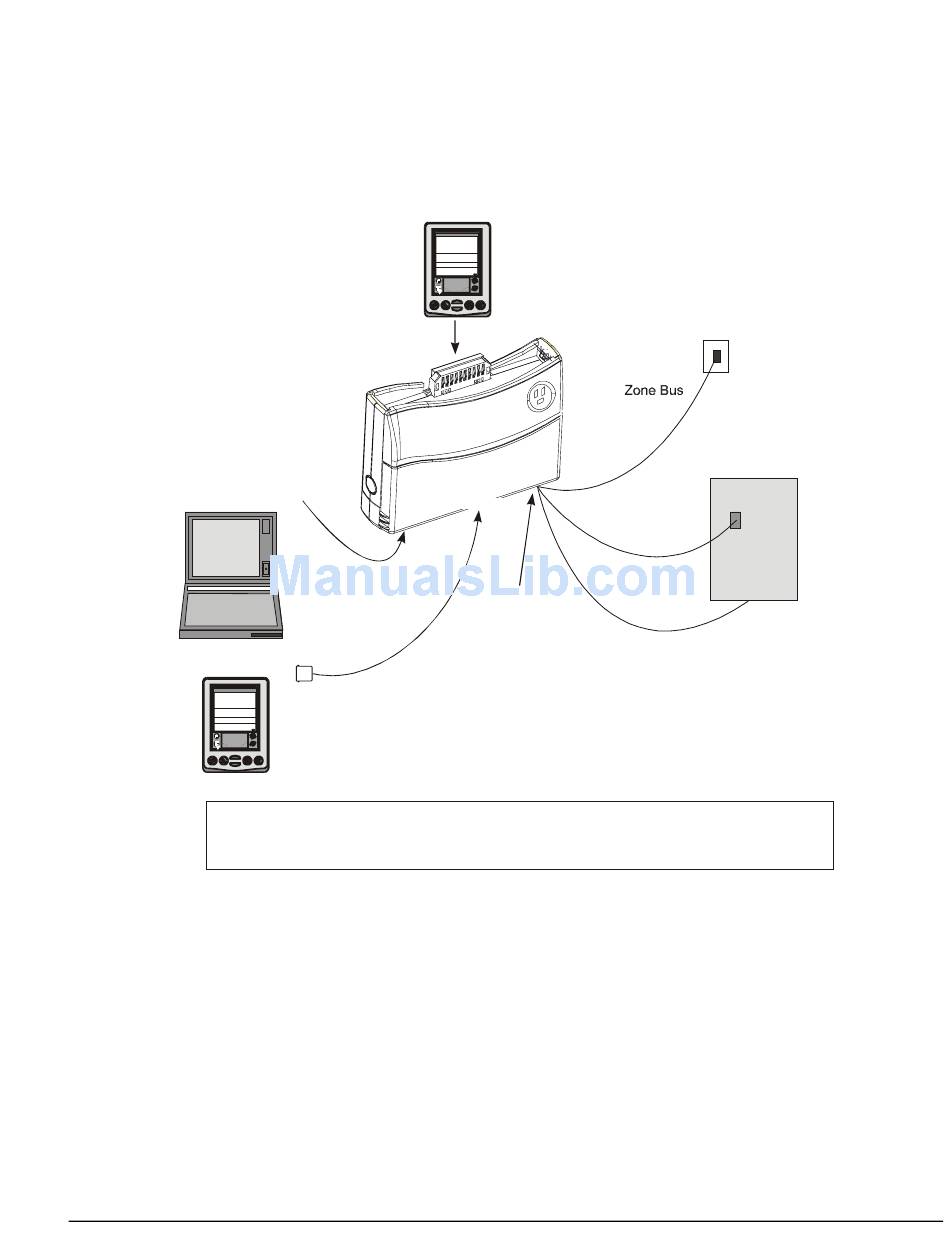

Figure 5: Overview of Possible CVTPRO Converter Connections
3 AS-CVTPROx00-1 Zone Bus/N2 Bus Interface Converter Installation Instructions
External Power
3
Adapter
CVTPRO
Serial Cable
DB9 Port
1
DB9
Connector
Palm m1xx or m5xx
(with additional connectors)
See Table 2.
1
Palm III, Palm V device with Dock V PRO Adapter,
1, 2
or Palm VII
CVTPRO
Converter
or
Serial Port
or
RJ11 6-pin Jack
for Zone Bus/N2 Bus
Connection
TE-6x00/TMZ
Room Sensor
RJ11 Jack,
6-Pin
Compatible
Controller
Zone Bus
RJ45 Jack,
8 Pin
N2 Bus
N2 Bus Interface,
4-Pin N2 Socket/
3-Pin N2 Plug with Tab
