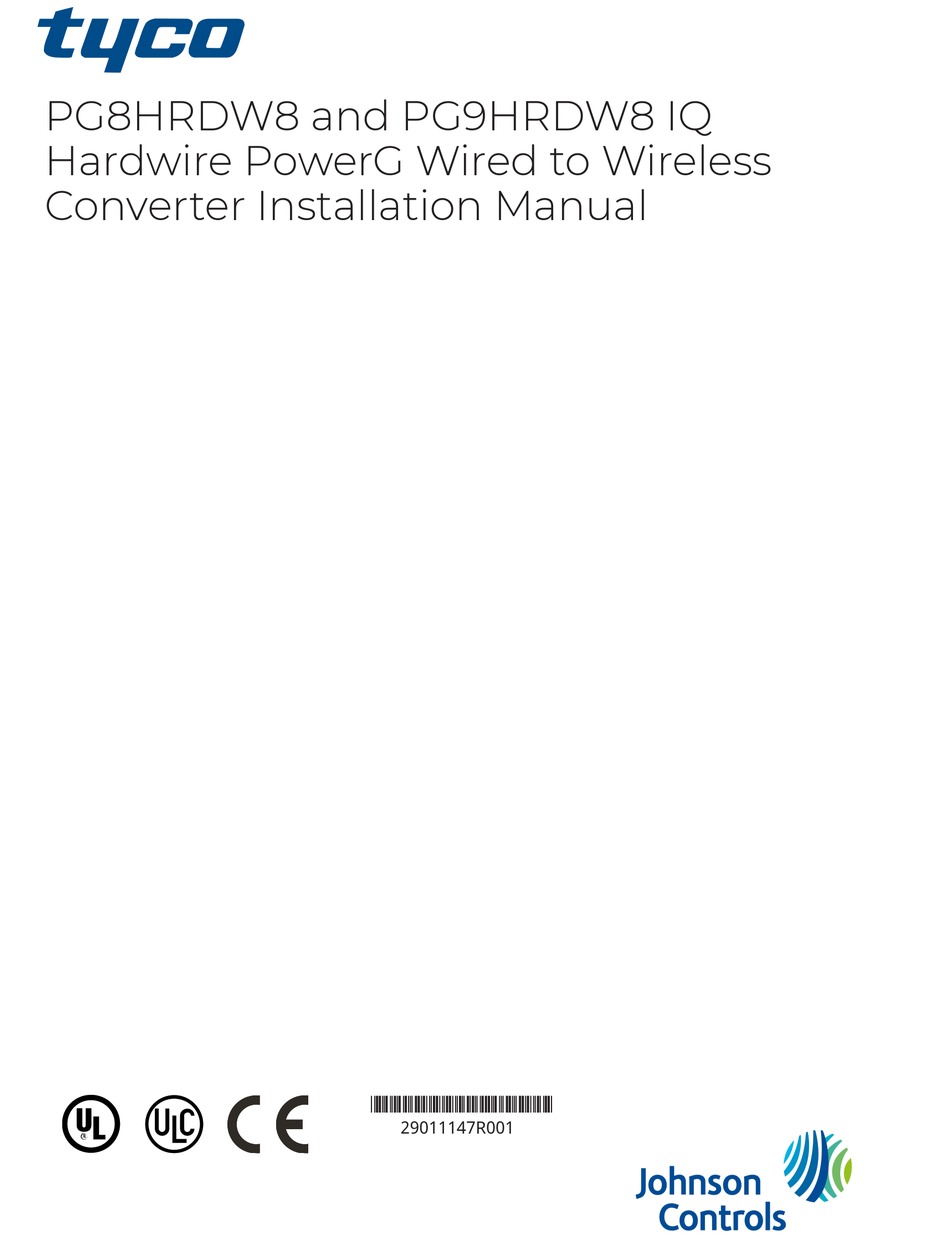

- Page 1 PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual *29011147R001* 29011147R001...
- Page 2 PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual...
-
Page 3: Table Of Contents
Contents Safety instructions............................5 Introduction..............................6 Technical Specifications........................... 7 Installing the module............................9 Mounting the module......................... 10 Mounting the enclosure..........................10 Mounting the power adapter........................10 Wiring the zones..........................12 Normally open and normally closed wiring....................12 Single end-of-line resistors........................13 Double end-of-line resistors........................14 Wiring programmable outputs...................... - Page 4 EULA.................................36 SOFTWARE PRODUCT LICENSE......................36 Limited warranty............................39 International Warranty........................39 Warranty Procedure..........................39 Conditions to Void Warranty......................39 Items Not Covered by Warranty......................39 Disclaimer of Warranties........................40 Out of Warranty Repairs........................40 Trademark...............................41 PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual...
-
Page 5: Safety Instructions
Safety instructions Read the safety information before you install the equipment. Important: This equipment must be installed by a skilled person only. A skilled person is an installer with appropriate technical training. The installer must be aware of potential hazards during installation and measures available to minimize risks to the installer and other people. -
Page 6: Introduction
Introduction The IQ Hardwire PowerG Wired to Wireless Converter converts existing hardwired zones to PowerG wireless zones. There are two models, the PG8HRDW8 and PG9HRDW8, and each provide eight hardwired zones and four programmable outputs. This document describes how to mount the enclosure, wire zones, connect the battery, enroll devices, and troubleshoot. -
Page 7: Technical Specifications
Technical Specifications The following table outlines the electrical ratings of the components of the IQ Hardwire PowerG Wired to Wireless Converter. Table 2: Technical specifications Type Description DC input voltage and current Use the provided external power adapter with the following ratings. - Page 8 Table 2: Technical specifications Type Description Bell circuit voltage and current 11.3 VDC to 12.5 VDC, maximum current 700 mA continuous. For EN50131 Grade 2 applications, the voltage rating is 9.6 VDC to 13.75 VDC. Note: The bell output supports continuous burglary alarms, T3 fire alarms, and T4 CO alarms.
-
Page 9: Installing The Module
Installing the module This section describes how to mount the enclosure, install the battery, and wire the system. The enclosure has three breakaway tabs that you can use for wiring access during installation. There are also two slots for the battery strap to pass through. For more information, see the highlighted areas in Figure 1. -
Page 10: Mounting The Module
Mounting the module This section describes how to mount the enclosure and the external power adapter. Mounting the enclosure To mount the PG8HRDW8 and PG9HRDW8 enclosure, complete the following steps: Use the four ST 6X1/2 type 25 Phil screws provided to secure the enclosure to the wall. For more information, see the highlighted areas Table in Figure . - Page 11 Figure 2: Mounting locations Callout Description PC Link connection. Note: Pin one is on the right. When you connect to the PC Link, make sure that the PCB side of the PC Link connector aligns with the white line on the module PCB, and use only the four pins on the right. Wall tamper screw Enrollment button PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual...
-
Page 12: Wiring The Zones
Callout Description Status LED Power adapter - plug-in adapter model shown, when using adapter with cord connected use the mounting tabs to attach adapter to the wall. Use the following table to determine the distance and gauge for the secondary wiring. Table 3: Wiring distance and gauge Distance (m/ ft) Gauge (AWG) -
Page 13: Single End-Of-Line Resistors
Wire the device to any COM terminal. Note: For UL and ULC installations, do not use normally open or normally closed loops. The following figure shows you how to wire normally closed loops. The image on the left shows two normally closed contacts with no end-of-line resistor, and the image on the right shows one normally closed contact with no end-of-line resistor. -
Page 14: Double End-Of-Line Resistors
For fire detection installations that use smoke detectors, powered or non-powered heat detectors, or CO detectors, use the wiring configuration on the right hand side of Figure 4. These devices use separate AUX2 output for power. Make sure that the voltage range of the AUX2 output is compatible with the input voltage range of the detector you are using. -
Page 15: Wiring Programmable Outputs
Note: Any zone programmed for fire or 24 hour supervisory must be wired with a SEOL resistor regardless of the type of zone wiring supervision selected for the panel. If you change the zone supervision from DEOL to SEOL, or from NC to DEOL, turn off the system completely and then turn on the system for correct operation. - Page 16 Note: If the device requires a current greater than the rated value of the PGM output, a relay and an approved power supply are required. To wire the LED indicator, see Figure 6. Figure 6: LED indicator wiring Callout Description AUX terminals PGM terminals LED indicator...
-
Page 17: Wiring A Fire Zone To The Pgm2 Configured As A 2-Wire Loop
Figure 7: Relay output wiring Callout Description AUX terminals PGM terminals Relay (RM-1 and RM-2) To normally open connection To normally closed connection To COM terminal Wiring a fire zone to the PGM2 configured as a 2-wire loop When you wire a 2-wire smoke detector, observe the following guidelines: •... - Page 18 Figure 8: 2-wire smoke detector wiring AUX2 Callout Description 2200 Ω end-of-line resistor The following table lists compatible 2-wire smoke detectors: Table 8: 2-wire smoke detectors Detector name FSA-210X FSA-210XLST FSA-210XRST C2WTA-BA (ULC) FSA-210XT FSA-210XR FSA-210XLRST 2W-B (UL) FSA-210XS FSA-210XRT C2W-BA (ULC) 2WT-B (UL) FSA-210XST...
-
Page 19: Wiring A 4-Wire Smoke, Heat, Or Co Detector
Table 9: 2-wire smoke detector initiation circuit Item Specification Maximum number of detectors per loop 18 without sounders Maximum ripple 45 mV Resting voltage and time 0.2 VDC/ 5 seconds Loop resistance 24 Ω maximum Minimum standby impedance 1250 Ω nominal Maximum alarm impedance 707 Ω... -
Page 20: Wiring Auxiliary Power
Callout Description 5600 Ω single end-of-line resistor 100 Ω alarm initiating loop RM-1 or RM-2 power loop supervisory relay, 12 VDC, 35 mA. Module zone input Note: You can manually configure PGM2 as a 2-wire smoke loop in panel programming. If you configure any zone input as a fire zone, PGM2 is automatically set as a 4-wire smoke detector, and acts as a power reset. -
Page 21: Wiring The Module
Figure 11: Installing the battery Wiring the module This section describes how to wire the external power supply and battery. For more information, see Figure . PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual... -
Page 22: Wiring The Power Supply
Wiring the power supply To wire the external power supply, complete the follow steps: On the power supply, secure the wires to the terminals. Insert the cable through the back of the enclosure. Connect the wires to the 18 VDC terminals on the PCB. Wiring the battery To wire the battery, complete the following steps: Connect the red battery lead to the positive terminals on the PCB and the battery. -
Page 23: Wiring A Keypad/Hsm2108/Hsm2300
Wiring a keypad/HSM2108/HSM2300 For v1.2 and higher, you can wire a maximum of four keypads to the PG8HRDW8 or PG9HRDW8 and a maximum of four HSM2108 and one HSM2300 modules. These modules should be connected to the Corbus. Note: For UL residential fire applications, ensure there are no mixed fire or burg devices on each zone expander AUX output or power supply AUX output. - Page 24 Fire Alarm or CO Alarm Bells Silenced You can silence Fire alarms or CO Alarms by entering a valid access code. The message "Fire Alarm/Bells Silenced" or "CO Alarm/Bells Silenced" is displayed on the LCD keypad connected to the corbus. The message will not be cleared until all the fire zones zones are restored on system.
-
Page 25: Enrolling The Module
Enrolling the module Before you enroll the module, ensure that all hardwired zones, PGM, AUX, and BELL are wired to the module. To enroll the module, complete the following steps: Enable enrollment through panel programming. For more information, refer to the Qolsys IQPanel2/IQPanel4 Installation Manual. -
Page 26: Enrolling Wired Zones Automatically
Enrolling wired zones automatically When you successfully enroll the module to the control panel, eight hardwired zones are added to the control panel. The zones display on the control panel with the same ID as the module and zone label as the corresponding hardwired input. Enable and configure each zone input and PGM using the zone configuration options on the control panel. -
Page 27: Enrolling A Keypad/Zone Expander/Power Supply
Enrolling a keypad/zone expander/power supply To enroll a keypad on to the module, complete the following steps: Select Settings > Advanced Settings > Installation > Devices > Security Sensors. To automatically enroll all keypads and modules that are correctly wired to the module, select Auto Learn. -
Page 28: Attaching The Cover
Attaching the cover To attach the front cover to the enclosure, follow the numbered steps in Figure 14. Example: Figure 14: Attaching the cover PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual... -
Page 29: Status Leds
Status LEDs There is one multicolored LED on the module. The following table describes the status of the module based on the color of the LED. Table 12: Status LEDs Mode Description Turn on The red LED is on while the module turns on. Placement test The color of the LED shows the signal strength of the enrolled device. -
Page 30: Troubleshooting
Troubleshooting To perform a local update of the firmware, use DLS 5 or higher. The status LED indicates if a trouble condition is present. You can view the trouble conditions in detail on the alarm panel. The following table describes the trouble states that the module can detect. Table 13: Troubleshooting Trouble Description... -
Page 31: Wiring Diagram
Wiring diagram For an overview of how to wire the system, see the following figure. Figure 15: Wiring diagram PG8HRDW8 and PG9HRDW8 IQ Hardwire PowerG Wired to Wireless Converter Installation Manual... -
Page 32: Fcc And Ised Canada Information
FCC and ISED Canada Information This information applies to model PG9HRDW8. Modification statement Tyco Safety Products Canada Ltd. has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Tyco Safety Products Canada Ltd. -
Page 33: Fcc Class B Digital Device Notice
FCC class B digital device notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 34: Ul And Ulc Notes
UL and ULC notes The model PG9HRDW8 has been listed by UL and ULC for commercial burglary and residential fire/burglary applications in accordance with the requirements in the Standards UL1610/UL1023/ UL985 and ULC-S304/ULC-S545. For UL/ULC installations, use this device only in conjunction with compatible wireless receivers/control panels combination, model Qolsys IQPanel2 and IQPanel4. -
Page 35: European Ce Compliance And Certalarm Certification
European CE Compliance and CERTALARM Certification This information applies to model PG8HRDW8. According to EN50131-1,this equipment can be applied in installed systems up to and including Security Grade 2, Environmental Class II. UK: The PG8HRDW8 is suitable for use in systems installed to conform to PD6662:2017 at Grade 2 and environmental class II. -
Page 36: Eula
EULA IMPORTANT - READ CAREFULLY DSC Software purchased with or without Products and Components is copyrighted and is purchased under the following license terms: • This End- User License Agreement (“EULA”) is a legal agreement between You (the company, individual or entity who acquired the Software and any related Hardware) and Digital Security Controls, a division of Tyco Safety Products Canada Ltd. - Page 37 • Separation of Components - The SOFTWARE PRODUCT is licensed as a single product. Its component parts may not be separated for use on more than one HARDWARE unit. • Single INTEGRATED PRODUCT - If You acquired this SOFTWARE with HARDWARE, then the SOFTWARE PRODUCT is licensed with the HARDWARE as a single integrated product.
- Page 38 • LIMITATION OF LIABILITY; WARRANTY REFLECTS ALLOCATION OF RISK - IN ANY EVENT, IF ANY STATUTE IMPLIES WARRANTIES OR CONDITIONS NOT STATED IN THIS LICENSE AGREEMENT, DSC’S ENTIRE LIABILITY UNDER ANY PROVISION OF THIS LICENSE AGREEMENT SHALL BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY PAID BY YOU TO LICENSE THE SOFTWARE PRODUCT AND FIVE CANADIAN DOLLARS (CAD$5.00).
-
Page 39: Limited Warranty
Limited warranty Digital Security Controls warrants the original purchaser that for a period of twelve months from the date of purchase, the product shall be free of defects in materials and workmanship under normal use. During the warranty period, Digital Security Controls shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labour and materials. -
Page 40: Disclaimer Of Warranties
product label and lot number or serial number; (iii) products disassembled or repaired in such a manner as to adversely affect performance or prevent adequate inspection or testing to verify any warranty claim. Access cards or tags returned for replacement under warranty will be credited or replaced at DSC's option. -
Page 41: Trademark
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative. © 2022 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks of Johnson Controls. Toronto, Canada ∙ www.dsc.com Tech support: 1-900-3630 (Canada and U.S), or 1-905-760-3000 (International)
