Detector Gas Regulation
Verify that the corresponding gases flows are correct. If not adjust the value
turning the relevant regulation screw as shown in Figure 3-2.
The flow is measured at the exit of the detector. Enter the TCD detector control
menu to turn the flow on/off.
Instruction Manual
Gas
Helium (make-up gas)
Helium (reference gas)
1 turn clockwise of the regulation screw increases the flow of about 2.5 mL/min
1 turn counterclockwise of the regulation screw decreases the flow of about 2.5 mL/min

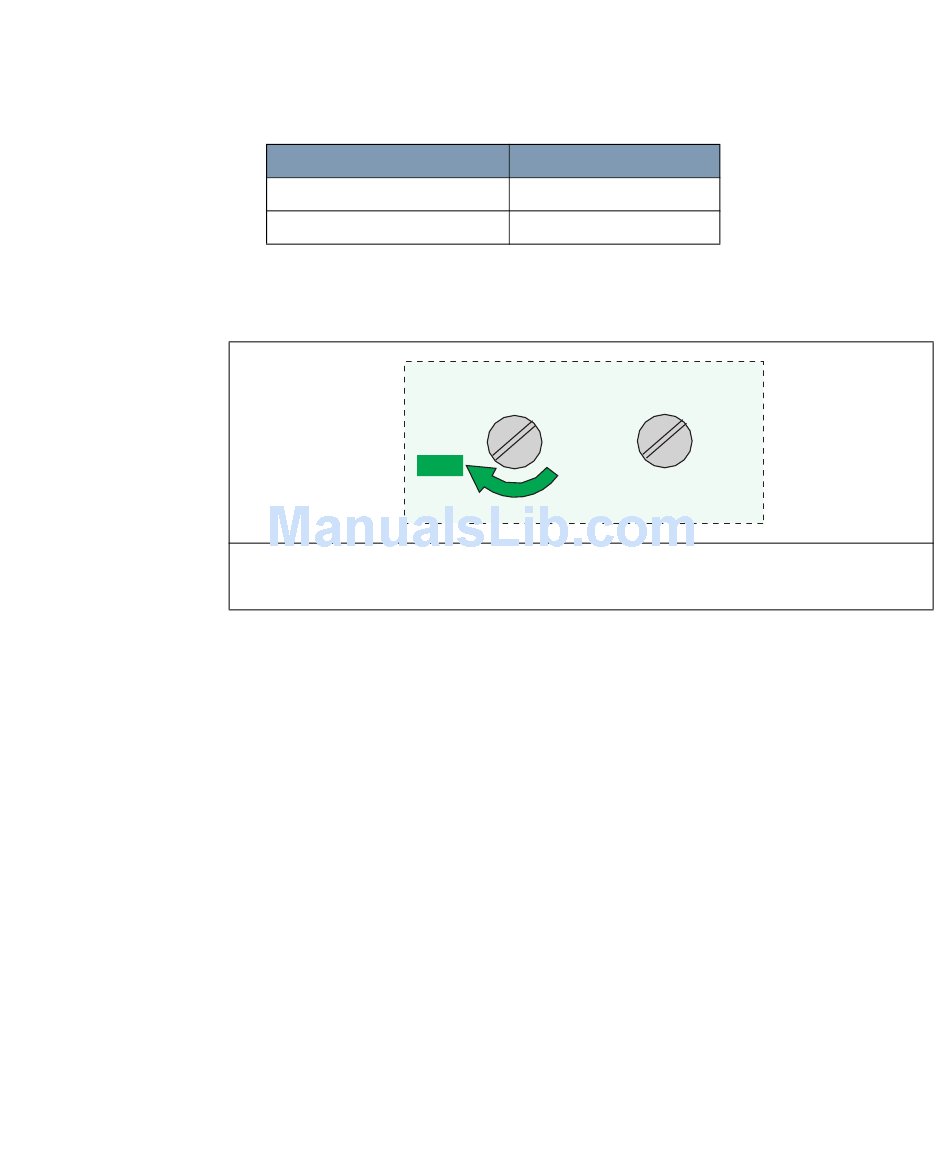

Figure 3-2. TCD Detector Gases Flow Regulation
Flow
27 mL/min
30 mL/min
Make-up
OPEN
Ref.
TCD Detector
Chapter 3
Gas Control
