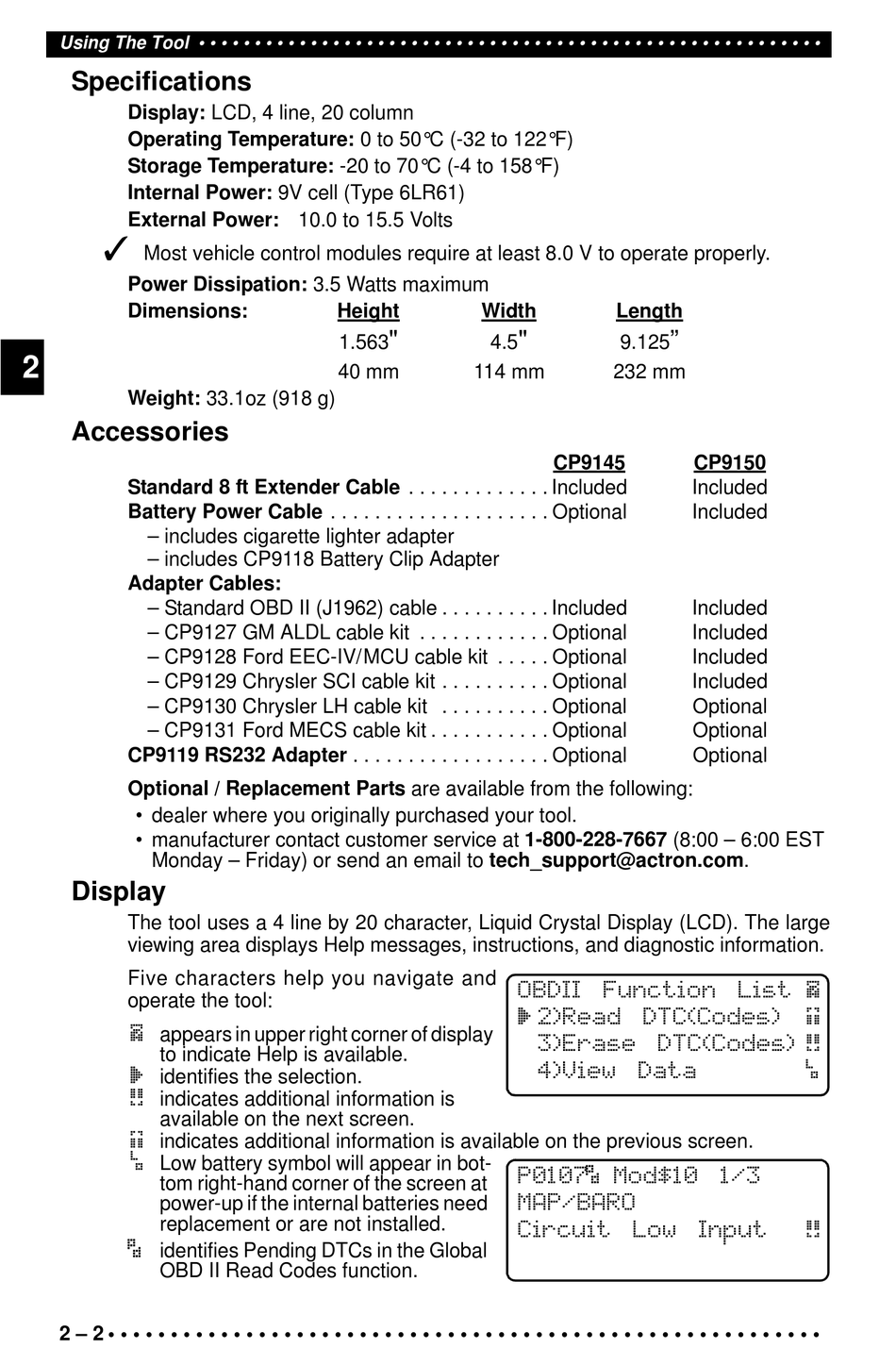

Specifications; Accessories; Display - Actron Super AutoScanner CP9145 User Manual

Using The Tool • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Specifications

Display: LCD, 4 line, 20 column
Operating Temperature: 0 to 50°C (-32 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Internal Power: 9V cell (Type 6LR61)
External Power: 10.0 to 15.5 Volts
Most vehicle control modules require at least 8.0 V to operate properly.
Power Dissipation: 3.5 Watts maximum
Dimensions:
2
Weight: 33.1oz (918 g)

Accessories

Standard 8 ft Extender Cable . . . . . . . . . . . . . Included
Battery Power Cable . . . . . . . . . . . . . . . . . . . . Optional
– includes cigarette lighter adapter
– includes CP9118 Battery Clip Adapter
Adapter Cables:
– Standard OBD II (J1962) cable . . . . . . . . . . Included
– CP9127 GM ALDL cable kit . . . . . . . . . . . . Optional
– CP9128 Ford EEC-IV/MCU cable kit . . . . . Optional
– CP9129 Chrysler SCI cable kit . . . . . . . . . . Optional
– CP9130 Chrysler LH cable kit . . . . . . . . . . Optional
– CP9131 Ford MECS cable kit . . . . . . . . . . . Optional
CP9119 RS232 Adapter . . . . . . . . . . . . . . . . . . Optional
Optional / Replacement Parts are available from the following:
• dealer where you originally purchased your tool.
• manufacturer contact customer service at 1-800-228-7667 (8:00 – 6:00 EST
Monday – Friday) or send an email to tech_support@actron.com.

Display

The tool uses a 4 line by 20 character, Liquid Crystal Display (LCD). The large
viewing area displays Help messages, instructions, and diagnostic information.
Five characters help you navigate and
operate the tool:
^
appears in upper right corner of display
to indicate Help is available.
[
identifies the selection.
]
indicates additional information is
available on the next screen.
\
indicates additional information is available on the previous screen.

Low battery symbol will appear in bot-
tom right-hand corner of the screen at
power-up if the internal batteries need
replacement or are not installed.
V
identifies Pending DTCs in the Global
OBD II Read Codes function.
