User Manual
GiGabit
EthErnEt
rackmount
Switch
uSEr
manual
Models 524148
& 524162

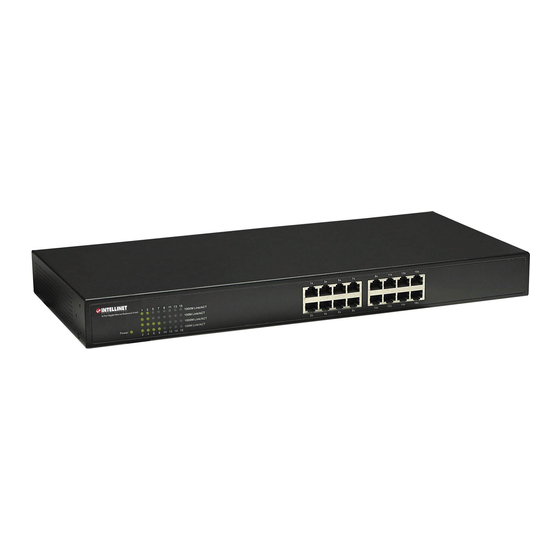

Shown: Model 524148, 16-Port
INT-524148/524162-UM-0608-01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intellinet 524148
Summary of Contents for Intellinet 524148

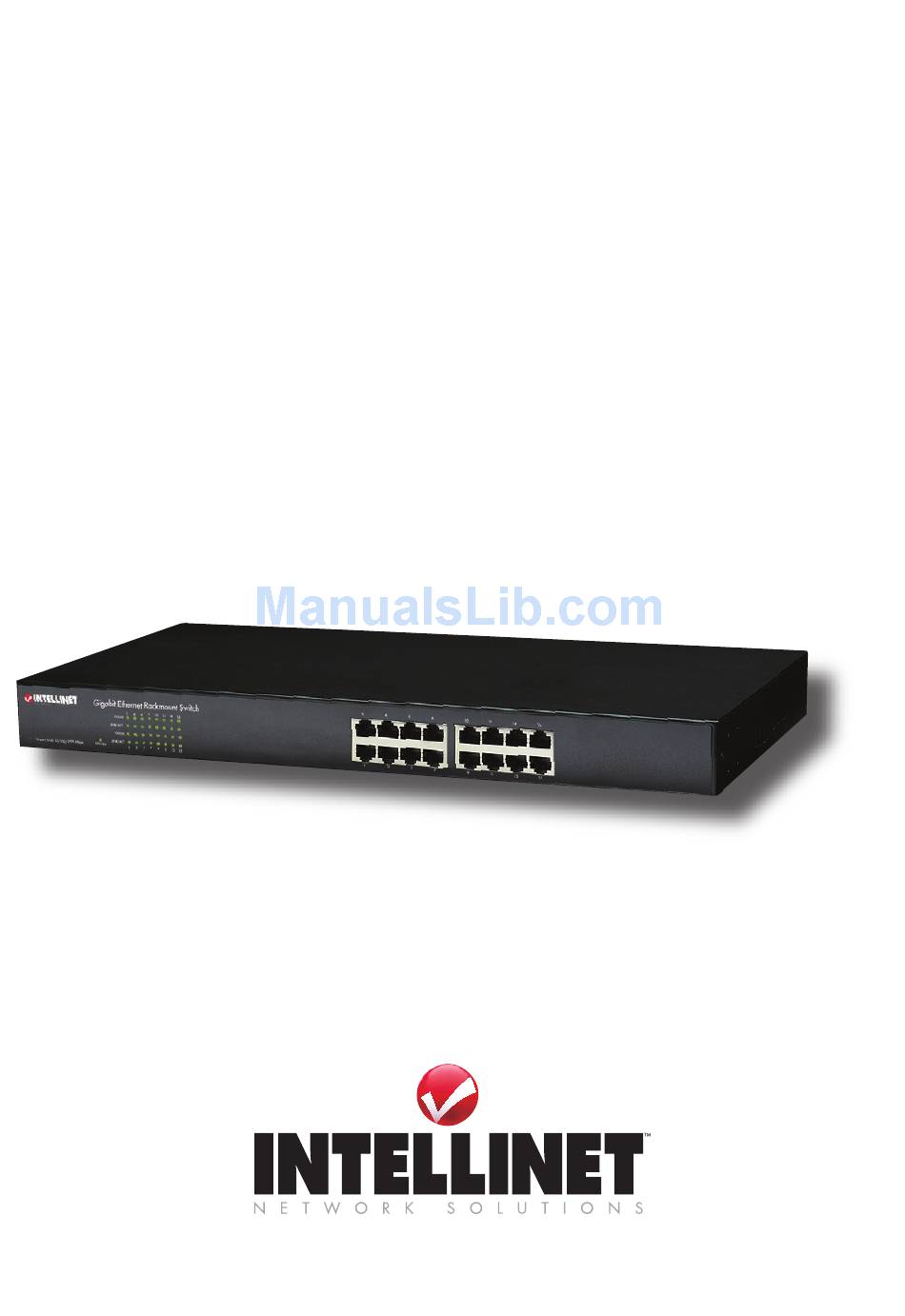

- Page 1 GiGabit EthErnEt rackmount Switch uSEr manual Models 524148 & 524162 Shown: Model 524148, 16-Port INT-524148/524162-UM-0608-01...
- Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit Ethernet Rackmount Switch, Model 524148 (16-port) or 524162 (24-port). Designed for medium- to large-size workgroups, this device’s Gigabit Ethernet ports provide the performance your network needs to handle the quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications.
-
Page 3: Front Panel
Shown: Model 524148, 16-Port Status Operation Power Unit is receiving power. Unit is not receiving power. LINK/ACT On Corresponding port is connected. Corresponding port is not connected. Flashing Corresponding port is transmitting/receiving data. 1000M Port is transmitting/receiving data at 1000 Mbps. - Page 4 Switch/hub/pc and other network connections The Gigabit Ethernet Rackmount Switch provides automatic crossover detection for all ports, so it’s ready for connection to other switches, hubs, PCs, servers and such without the need for crossover cable. Ethernet Switch...
-
Page 5: Specifications
SpEcificationS Standards LEDs • IEEE 802.3 (10Base-T Ethernet) • Power • IEEE 802.3ab (Twisted Pair • Link Speed per port: 1000 Mbps Gigabit Ethernet) • Link/Activity per port • IEEE 802.3u (100Base-TX Fast Power Ethernet) • IEEE 802.3x (flow control, for full •...
