Intellinet 524513 Quick Install Manual

2- / 4-Port Mini
KVM Switch
QUicK
inStALL GUiDE
ModelS 524513, 524520,
524599, 524612, 505864

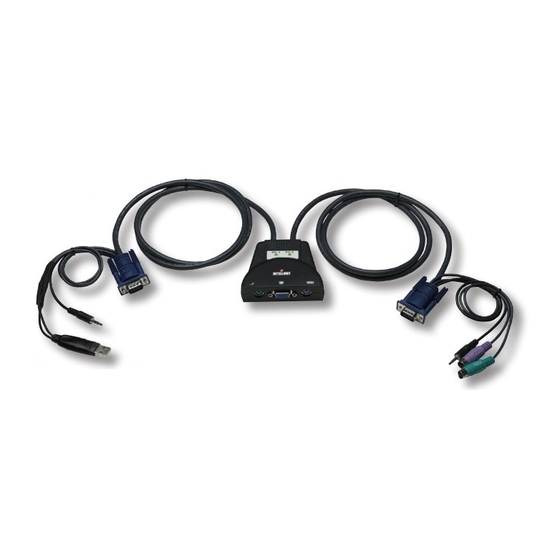

Shown: USB / PS/2 with audio,
Model 524612
•
Compatible with all
operating systems
•
Supports resolutions
to 1920 x 1440 pixels
•
Audio output for speaker connection
(Models 524520, 524599 & 524612)
•
Hotkey commands and LED
indicators for computer selection
inStALLAtion & oPErAtion
1. Make sure that power to all the devices you'll be connecting to has been
turned off, and that all devices on the installation are properly grounded.
2. Plug your keyboard, mouse and monitor into the switch's console ports.
3. Plug the switch's built-in cables into the keyboard, mouse and monitor ports
(and audio ports, if applicable) of your computers. Keyboard and mouse
plugs are color-coded and marked with an indicator icon.
4. Power on your computers and you're ready to go!
5. Tap the CTRL key twice to toggle the Mini KVM Switch between computers.
INTELLINET NETWORK SOLUTIONS
networking products. Ask your local computer dealer for more information or visit
All products mentioned are trademarks or registered trademarks of their respective owners.
www.intellinet-network.com
Copyright © INTELLINET NETWORK SOLUTIONS
INT-524513/524520/524599/524612/505864-miniQIG-0709-01
Thank you for purchasing this INTELLINET
NETWORK SOLUTIONS
KVM Switch Model 524513 (PS/2), 524520
(PS/2 with audio), 524599 (USB with audio),
524612 (USB / PS/2 with audio); or 4-Port
Mini KVM Switch Model 505864 (PS/2),.
Use multiple computers with one keyboard,
mouse and monitor simply by plugging in
the cables — no software or added power
is required! (See back for Specifications.)
•
Full keyboard and mouse emulation
for error-free booting
•
Lifetime Warranty
