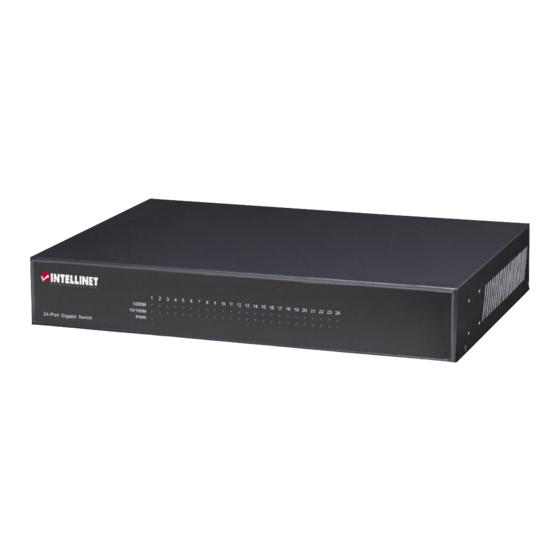

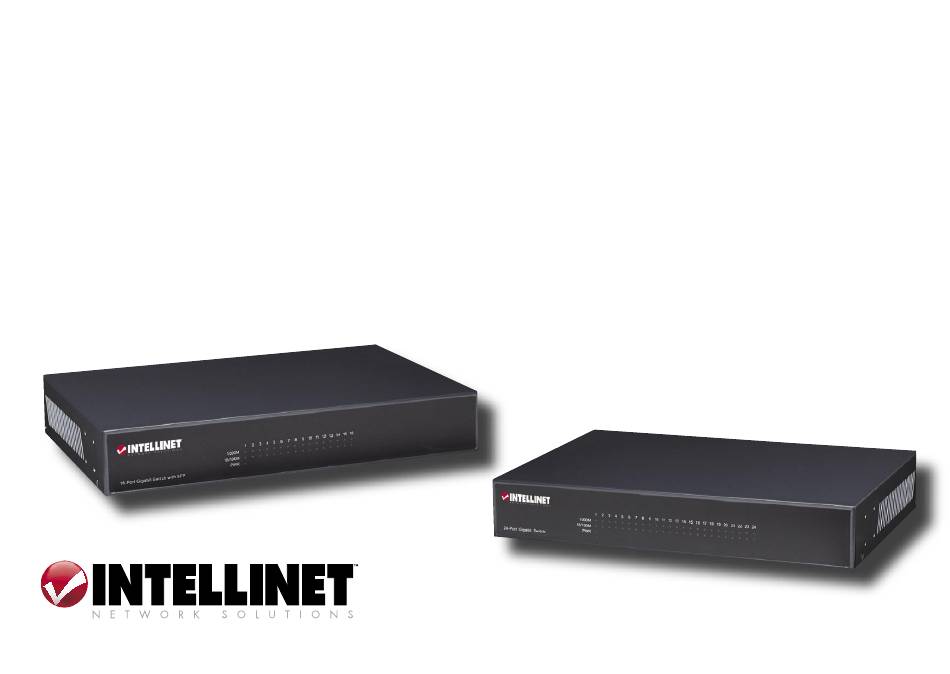

- Page 1 16/24-PORT GIGABIT ETHERNET DESKTOP SWITCH USER MANUAL MODEL 523530/523523 INT-523530/523523-UM-0107-01...
- Page 2 Thank you for purchasing this INTELLINET NETWORK SOLUTIONS Gigabit Ethernet Desktop ™ Switch, Model 523530 (16-port) or Model 523523 (24-port). With its 10/100/1000 Mbps gigabit ports, this switch easily boosts networking throughput, providing a real gigabit connection that makes it possible to transfer large, high-bandwidth files with greater speed and reliability.
- Page 3 FCC STATEMENTS FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 4 FRONT PANEL System LED Status Operation Steady green Power on Port LEDs Status Operation 1000M Steady green Valid port connection at 1000 Mbps Blinking green Valid port connection; data being transmitted/received Port disconnected or connected at 10/100 Mbps 10/100M Steady green Valid port connection at 10/100 Mbps Blinking green Valid port connection;...
- Page 5 Media Speed Recommended cable 10/100/1000 Mbps copper 10 Mbps Cat3/4/5 UTP/STP 100 Mbps Cat5 UTP/STP 1000 Mbps Cat5/5e UTP/STP • The Auto-negotiation feature allows each port to operate in both half and full duplex mode at 10 Mbps and 100 Mbps; and at full duplex mode at 1000 Mbps. INSTALLATION Prior to use, it is recommended that the device be placed/positioned: •...
- Page 6 Rackmount: 1. Disconnect any cables from the switch before proceeding with rackmounting. 2. Place the device on a hard, flat surface with the front facing you. 3. Position one of the two included mounting brackets over the mounting holes on one side of the unit. 4.
- Page 7 • MAC address table: 8192 entries • Backplane speed: 32 Gbps for 16-port; 48 Gbps for 24-port • Switch architecture: store and forward LEDs • Power • Link/Act: 1000 Mbps, 10/100 Mbps Power • Internal power supply, 100 to 240 V AC, 50/60 Hz •...
- Page 8 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
