Summary of Contents for DAPAudio PA-306

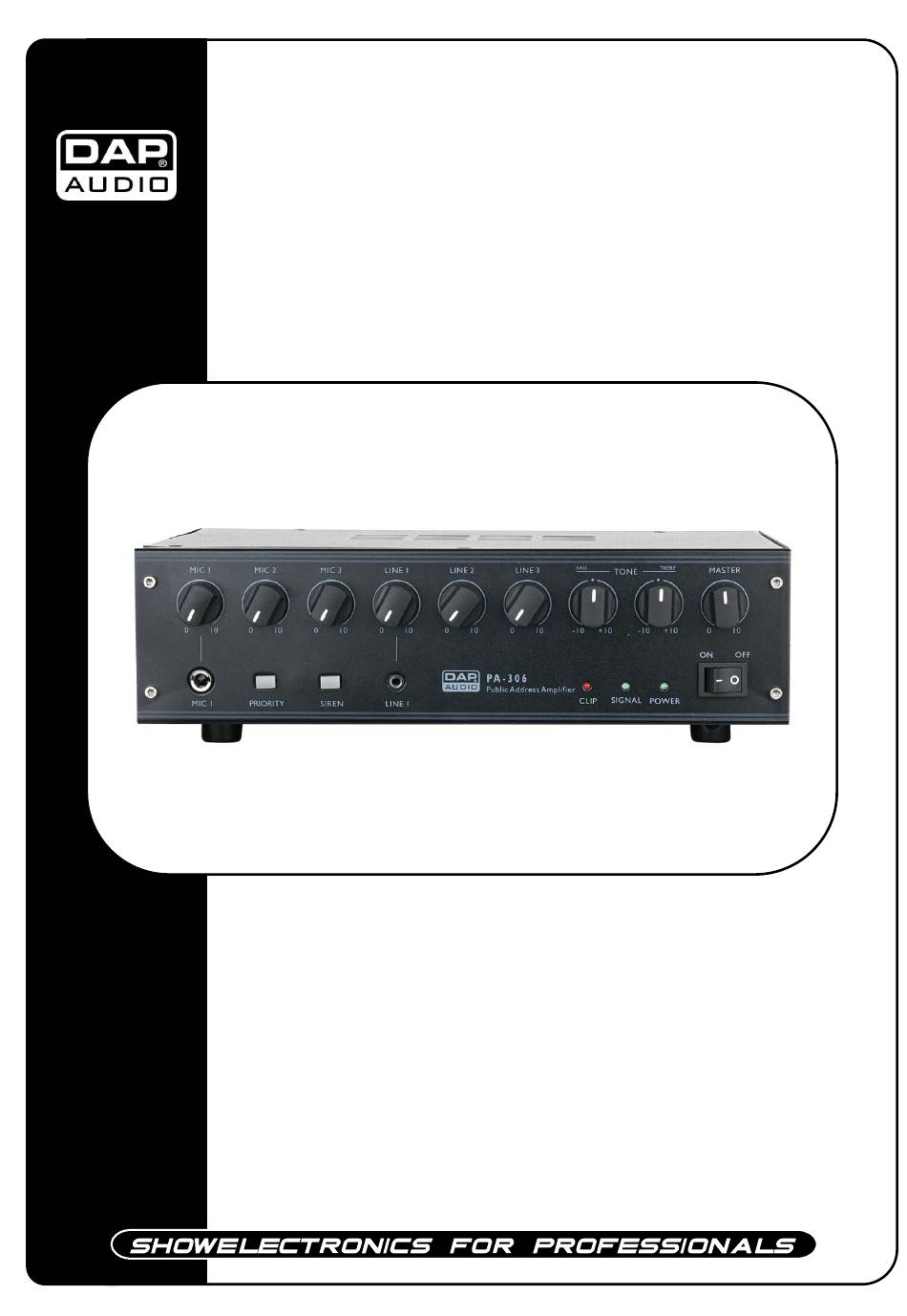

- Page 1 PA-306 ORDERCODE D6145 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio Core PA-306 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio PA-306 Product Guide ™ Warning ................................... 3 Unpacking Instructions ............................. 3 Safety Instructions ..............................3 Operating Determinations ............................4 Return Procedure ..............................5 Description of the device ............................. 6 Frontpanel .................................. 6 Backpanel .................................. 7 Operation ..................................9 Installation .................................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: • DAP PA-306 • power cable - 2m • User manual... -
Page 5: Operating Determinations
Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description Of The Device
Description of the device Features The PA-306 is a professional 30W Public Adress amplifier with 6 inputs: • Inputs: 3 x Mic, 3 x Line input • Phantom power • Front line input, 3.5mm Jack • Pre amp output • 4/8 Ohm & 70/100 V output •... -
Page 8: Backpanel
Backpanel Fig. 2 18. AC-selector Before connecting your PA-306 to the mains, make sure the AC-selector is set to the proper voltage used in your country. If you’re not sure, consult a skilled technician. 19. DC 12V 5A terminal DC 12V input (battery) 20. - Page 9 21. 8 Ω terminal Connect this terminal to the + terminal of your 8 Ω speaker(s). In case of using several speakers. Make sure that the total speaker load is 8 Ω. The total power rating of the low impedance speakers connected to this terminal summed, should be at least 30W.
-
Page 10: Operation
Operation Installation Remove all packing materials from the PA-306. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 11: High Impedance Outputs
Example 3: using the 8Ω output with two 4Ω speakers. Fig. 5 In a low impedance system, the total speakerload should always match the amplifier impedance This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers. - Page 12 Compensation of interference with balanced connections...
-
Page 13: Maintenance
Maintenance DAP Audio Core PA-306 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Product Specifications
Product Specifications Output power: Power outputs: 4 Ohm, 8 Ohm, 70V, 100V (terminal strip) Record output: Mic 1: 6,3mm Jack, front panel Mic 2: XLR, backside Mic 3: XLR, backside Input 1: 3,5mm Jack, front panel Input 2: RCA, backside Input 3: RCA, backside Indication LEDs:... - Page 15 2013 Dap Audio.
