  • Page 1 MANUAL ENGLISH PA-530TU Ordercode: D6150 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...

  • Page 2: Table Of Contents

    PA-530TU Table of contents Warning ................................2 Safety Instructions............................2 Operating Determinations ......................... 4 Connection with the mains ........................4 Return Procedure ............................4 Claims................................. 4 Description of the device ..........................5 Frontside ..............................6 Backside ..............................8 Tuner................................. 10 Audio Player .............................

  • Page 3: Warning

    Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is ret urned in the original factory box and packing. Your shipment includes:  DAP Audio PA-530TU  FM Antenna ...
  • Page 4 PA-530TU IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non -observance of this manual or any unauthorized modification to the system.  Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution! ...

  • Page 5: Operating Determinations

    PA-530TU Operating Determinations This system is not designed for permanent operation. Co nsistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

  • Page 6: Description Of The Device

    Description of the device Features The DAP PA-530TU is a compact 30W, 100V mixer amplifier with 4 selectable sources and 2 microphone inputs. Both microphone inputs are equipped with phantom power and can also be selected as line input. The integrated speech filter can be applied to improve audibility. It has one dedicated line input on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices.

  • Page 7: Frontside

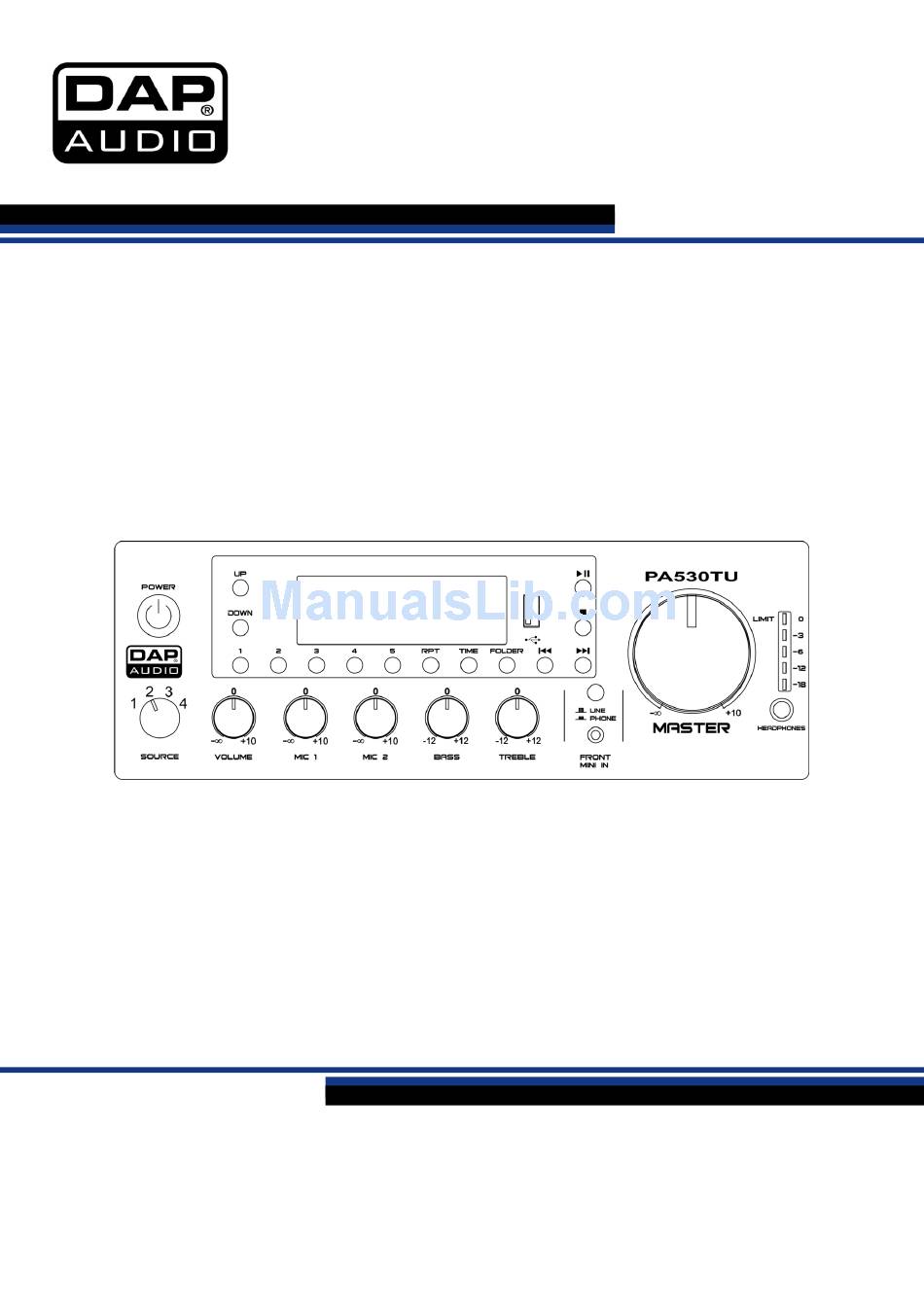

    PA-530TU Frontside Fig. 01 Power switch ON/OFF Press the button to switch the device ON/OFF. Tuner/audio player See section Tuner, page 10 and section Audio Player, page 11. Master control Turn the control to adjust the master volume level, according to your preference.
  • Page 8 PA-530TU Fig. 02 Mic 2 level control Turn the control to adjust the volume level for input Mic 2. Bass control Turn the control to adjust the bass level of Mic inputs 1-2. Treble control Turn the control to adjust the treble level of Mic inputs 1-2.

  • Page 9: Backside

    Connect the device to the appropriate power supply. AC selector Before connecting your PA-530TU to the mains, make sure that the AC selector is set to the proper voltage which is used in your country. In case of doubt, consult a technician.
  • Page 10 PA-530TU Fig. 04 Gain level control – Mic 1 Adjust input level for Mic 1. Combo input – Mic 1 Combo input for Mic 1. Accepts balanced or unbalanced inputs. Aux – RCA IN Connect an auxiliary signal source. The source selector (06) must be set to 3.

  • Page 11: Tuner

    PA-530TU Tuner Fig. 05 LCD display In Tuner mode, the display shows the frequency and the current preset number. In Audio Player mode, the display shows the current track’s name and number, playback time and the current playback mode. UP button Press this button to select the desired station.

  • Page 12: Audio Player

    PA-530TU Audio Player Fig. 06 Repeat button Press this button to choose the desired playback modes. Time button Press this button to toggle between the following 2 time display modes: elapsed time and remaining time. Folder button Press this button to browse through the directories on your USB flash drive or CD.

  • Page 13: Installation

    PA-530TU Installation Remove all packing materials from the PA-530TU. Check if all foam and plastic padding is removed. Secure the equipment into a 19" rack if preferred. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 14: Storing A Radio Station In Memory

    PA-530TU Storing a Radio Station in Memory 01) If you want to save a newly found radio station as one of the first 4 presets, press and hold down one of the preset buttons 1-4 (30/31/32/33). Release the button as soon as the desired preset number appears on the display.

  • Page 15: Selecting Folders And Tracks

    PA-530TU Selecting Folders and Tracks 01) While playback is active, press the Folder button (37). The display will show: 02) Press the buttons to select the desired folder. 03) Press the button to enter the selected folder/track. The display will show: 04) Press the buttons to select the desired folder/track within the folder.

  • Page 16: Connecting Outputs

    PA-530TU Connecting Outputs Speakers are connected by means of terminal connectors. See the examples below . Low Impedance Outputs You can use as many speakers as you want as long as the total impedance matches the amplifiers output. Example 1: Using the 8Ω output with an 8Ω speaker.

  • Page 17: Connection Cables

    PA-530TU Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.

  • Page 18: Maintenance

    PA-530TU Maintenance The DAP Audio PA-530TU requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.

  • Page 19: Product Specifications

    PA-530TU Product Specifications Outputs  Power consumption: 30W  Zones: 1  100V & 8Ω: Terminals  Line output: XLR  Loop through: RCA  Headphones: 6,3 mm jack Inputs  2 x Mic/Line: XLR/jack combo & terminals  1 x Line: RCA ...

  • Page 20: Dimensions

    PA-530TU Dimensions Ordercode: D6150...

  • Page 21: Notes

    PA-530TU Notes Ordercode: D6150...
  • Page 22 PA-530TU Ordercode: D6150...
  • Page 23 PA-530TU Ordercode: D6150...
  • Page 24 ©2016 DAP Audio...
