- Page 1 MANUAL ENGLISH PA-7120 Ordercode: D6151 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PA-7120 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Connection with the mains............................4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Frontside..................................6 Backside ..................................8 Installation ..................................12... -
Page 3: Warning
Save the carton and all packing materials. In the event that a device must be returned to the factory, it is important that the device is returned in the original factory box and packing. Your shipment includes: DAP Audio PA-7120 • •... - Page 4 PA-7120 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never let the power cord come into contact with other cables! Handle the power cord and all •...
-
Page 5: Operating Determinations
PA-7120 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device

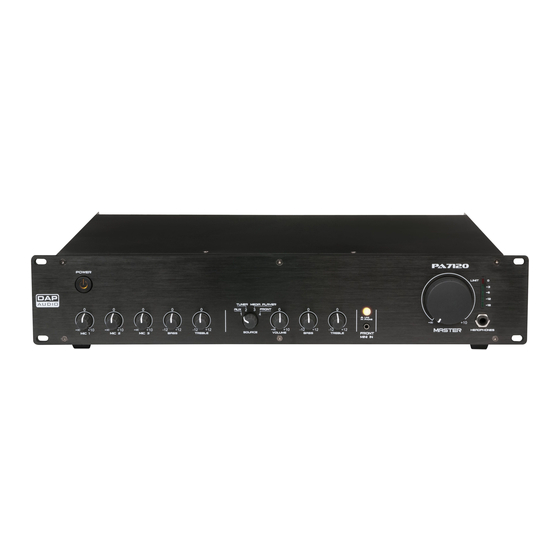

Description of the device Features The DAP PA-7120 is a 120W, 100V amplifier mixer with 4 selectable sources and 3 microphone inputs. All microphone inputs are equipped with phantom power and can be selected as line input. The integrated speech filter can be applied to improve the audibility. It has 3 dedicated line inputs on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. -
Page 7: Frontside
PA-7120 Frontside Fig. 02 Power switch ON/OFF Press the button to switch the device ON/OFF. Master control Turn the control to adjust the master volume level, according to your preference. VU meter The clip LED indicates peak levels at the output of the amplifier. If the red LED frequently blinks or lights continuously, the output is likely to enter clipping. - Page 8 PA-7120 Fig. 03 Bass control Turn the control to adjust bass level of the selected source. Treble control Turn the control to adjust treble level of the selected source. Line/phone switch Press the button to switch between level input or phone level input. The phone level adjusts the input sensitivity into the correct level for MP3 players, smartphones or tablets.
-
Page 9: Backside
Connect the device to the appropriate power supply. AC selector Before connecting your PA-7120 to the mains, make sure that the AC selector is set to the proper voltage which is used in your country. In case of doubt, consult a technician. - Page 10 PA-7120 Fig. 05 Gain level control – Mic 3 Adjust input level for Mic 3. Combo input – Mic 3 Combo input for Mic 3. Accepts balanced or unbalanced inputs. Mic 3 terminal connector IN Terminal input for Mic 3. Accepts balanced or unbalanced inputs.
- Page 11 PA-7120 Vox: If set to ON, the background music will be suppressed to the preset ducking level, while speaking into the microphone. Gain level control – Mic 1 Adjust input level for Mic 1. Combo input – Mic 1 Combo input for channel 1. Accepts balanced or unbalanced inputs.
- Page 12 PA-7120 Fig. 06 Ducking level control Ducking level control for microphone/line input 2. When someone speaks into the microphone, other sound will either be muted or suppressed, depending on the setting of the ducking level. The DIP switch “Vox” (30) should be set to ON position for this function to work.
-
Page 13: Installation
PA-7120 Installation Remove all packing materials from the PA-7120. Check if all foam and plastic padding is removed. Secure the equipment into a 19" rack if preferred. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 14: Connecting Outputs
PA-7120 Connecting Outputs Speakers are connected by means of terminal connectors. See the examples below. Low Impedance Outputs You can use as many speakers as you want as long as the total impedance matches the amplifiers output. Example 1: Using the 8Ω output with an 8Ω speaker. -
Page 15: Connection Cables
PA-7120 Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 16: Maintenance
PA-7120 Maintenance The DAP Audio PA-7120 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 17: Product Specifications
PA-7120 Product Specifications Outputs Power consumption: 120W • Zones: 1 • 100V & 8Ω: Terminals • • Line output: XLR Loop through: RCA • Headphones: 6,3 mm jack • Inputs 3 x Mic/Line: XLR/jack combo & terminals • 3 x Line: RCA •... - Page 18 PA-7120 Ordercode: D6151...
- Page 19 PA-7120 Ordercode: D6151...
- Page 20 ©2016 DAP Audio...
