Crestron Isys TPMC-3X Series User Manual

TPMC-3X Series
Isys
Power
1
To charge its internal battery pack, the TPMC-3X Series touch
screen must be placed on the included docking station/charger.
Connect the included power pack to the docking station/charger.
NOTE: Before using the TPMC-3X Series touch screen for the
first time, charge its internal battery pack for at least two hours
by placing it on the included docking station/charger.

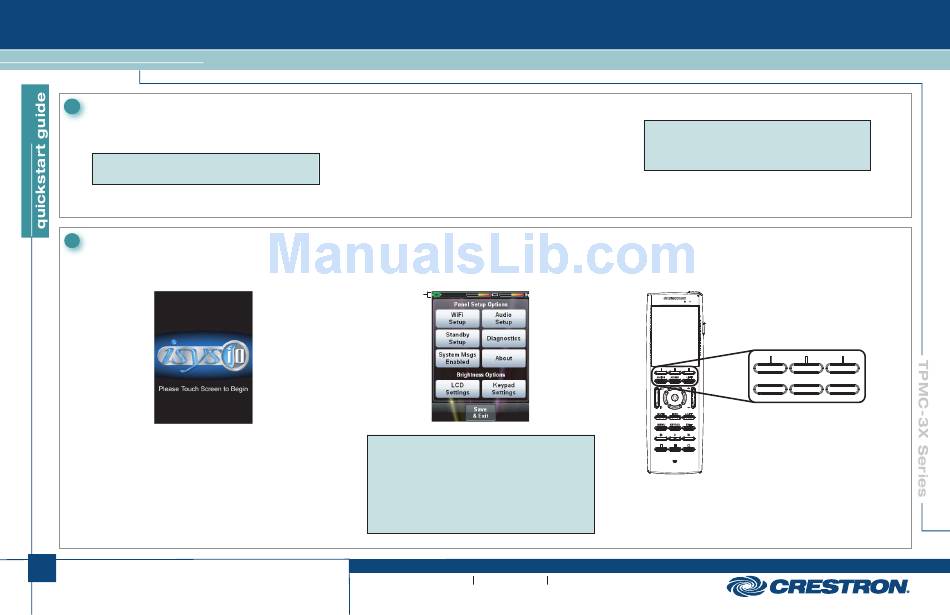

2 Configure the Touch Screen
The setup screen is the starting point for configuring a TPMC-3X
Series touch screen. When power is applied for the first time, the
following screen appears.
Touch the screen to display the TPMC-3X Series setup screen,
as shown in the illustration to the right. The setup screen enables
basic configuration procedures prior to regular operation of the
touch screen.
1
For Regulatory Compliance information, refer to the latest
version of Doc. 7409.
QUICKSTART DOC. 6790C (2023713, Sheet 1 of 2)
2.8" Handheld WiFi Touch Screens
®
It takes the TPMC-3X Series touch screen about 2 hours to
recharge while in use. A fully charged battery can provide up
to 5 hours of use at the full screen brightness setting.
System Bar
NOTE: During regular operation of the touch screen, there are
three ways to activate the setup functions:
1. Place a button on the project main page and assign the
reserved join number (17242) that activates setup.
2. Press hard keys 1, 2, 3, and 4 in sequence twice (i.e. press
1, 2, 3, 4, 1, 2, 3, 4) within a 5 second period.
3. If the system bar is visible at the top of the display, access
the setup screen by touching the Crestron swirl logo in the
upper left corner.
www.crestron.com
07.12 Specifications subject to
change without notice.
NOTE: When not using the TPMC-3X Series touch screen,
store the unit on its docking station/charger.
NOTE: The TPMC-3X Series touch screen can become
unresponsive when battery strength is low.
888.273.7876 201.767.3400
1 2 3
GUIDE HOME LIST
4
