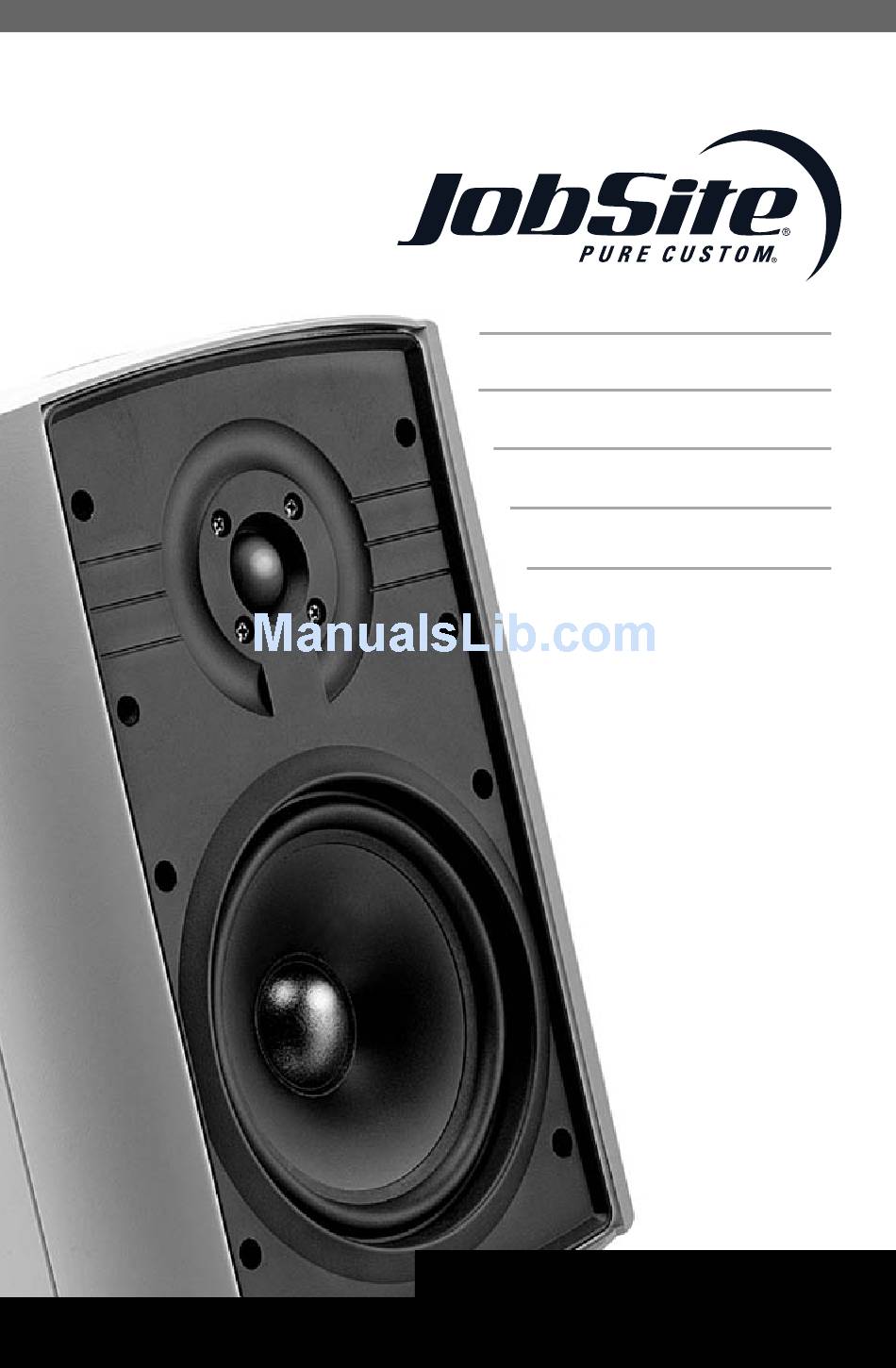

- Page 1 INSTALLATION & USER GUIDE For Accurate Music and Voice Reproduction from Indoor and Outdoor Locations LSO-5/6/7/8 INDOOR/OUTDOOR LOUDSPEAKER...
-
Page 2: Table Of Contents
LSO-5/6/7/8 INDOOR/OUTDOOR LOUDSPEAKER TABLE OF CONTENTS Features...1 Product Overview...2 Package Contents ...3 Preparing for Installation...3 Installation...3 Operation...6 Specifications ...6 Warranty...8... -
Page 3: Features
FEATURES: LSO-5 5” mica filled polypropylene woofer with butyl rubber surround 3/4” liquid cooled polycarbonate tweeter Glass and mineral-filled polypropylene enclosure Weather and UV resistant Installation friendly design: Includes stainless-steel and brass hardware Recessed gold-plated 5-way binding posts Includes adjustable rustproof mounting bracket Includes aluminum rustproof grilles FEATURES: LSO-6... -
Page 4: Product Overview
PRODUCT OVERVIEW The LSO series of Indoor/Outdoor speakers give you the freedom to listen to music anywhere! You can use them indoors and outdoors (even on a boat). The cabinet is shaped to fit neatly into corners or eaves. It is supplied with a swiveling mounting bracket for easy installation anywhere. -
Page 5: Package Contents
PACKAGE CONTENTS Indoor/Outdoor speakers x 2 Mounting brackets x 2 Paint masks x 2 PREPARING FOR INSTALLATION If you are mounting the speakers onto an existing indoor wall, take time to consider any possible obstructions, which may be hidden inside the wall: studs, electrical wiring, telephone wiring, plumbing, AC or heating conduit and ductwork. - Page 6 INDOOR INSTALLATION 1. LSO speakers can be mounted either horizontally or vertically. 2. Use the stud locator to identify the location of the studs in the proposed mounting locations of the speaker. 3. Mark the stud edges, using masking tape. 4.
- Page 7 4. Drill pilot holes into the mounting surface. 5. If the mounting holes line up with a stud, use galvanized screws to secure the bracket to the wall. 6. If the mounting holes do not line up with a stud, secure the bracket to the wall using anchors designed to support the weight of the speaker.
-
Page 8: Operation
PAINTING THE SPEAKERS 1. Separate the parts of the speaker by removing the brackets and the bracket knobs. Remove the grille by hooking it with a bent paper clip or the tip of a corkscrew and pulling it away from the cabinet. 2. -
Page 9: Specifications
SPECIFICATIONS: LSO-5 Power handing: 5 – 75 watts Frequency response: 110Hz- 21kHz +/-3dB Impedance: 8 ohms Dimensions bracket: 9-1/4” high x 7” wide x 6-5/8” deep including Bracket Warranty: 2 year limited SPECIFICATIONS: LSO-6 Power handing: 10 - 100 watts Frequency response: 110 Hz - 21kHz +/-3dB Impedance:... -
Page 10: Warranty
LIMITED WARRANTY JobSite Systems (“JOBSITE”), a Niles Audio Corporation company, warrants its passive products (those not requiring AC or battery power) to the original purchaser to be free of manufacturing defects in material and workmanship for a period of ten years from date of purchase. - Page 11 NOTES:...
