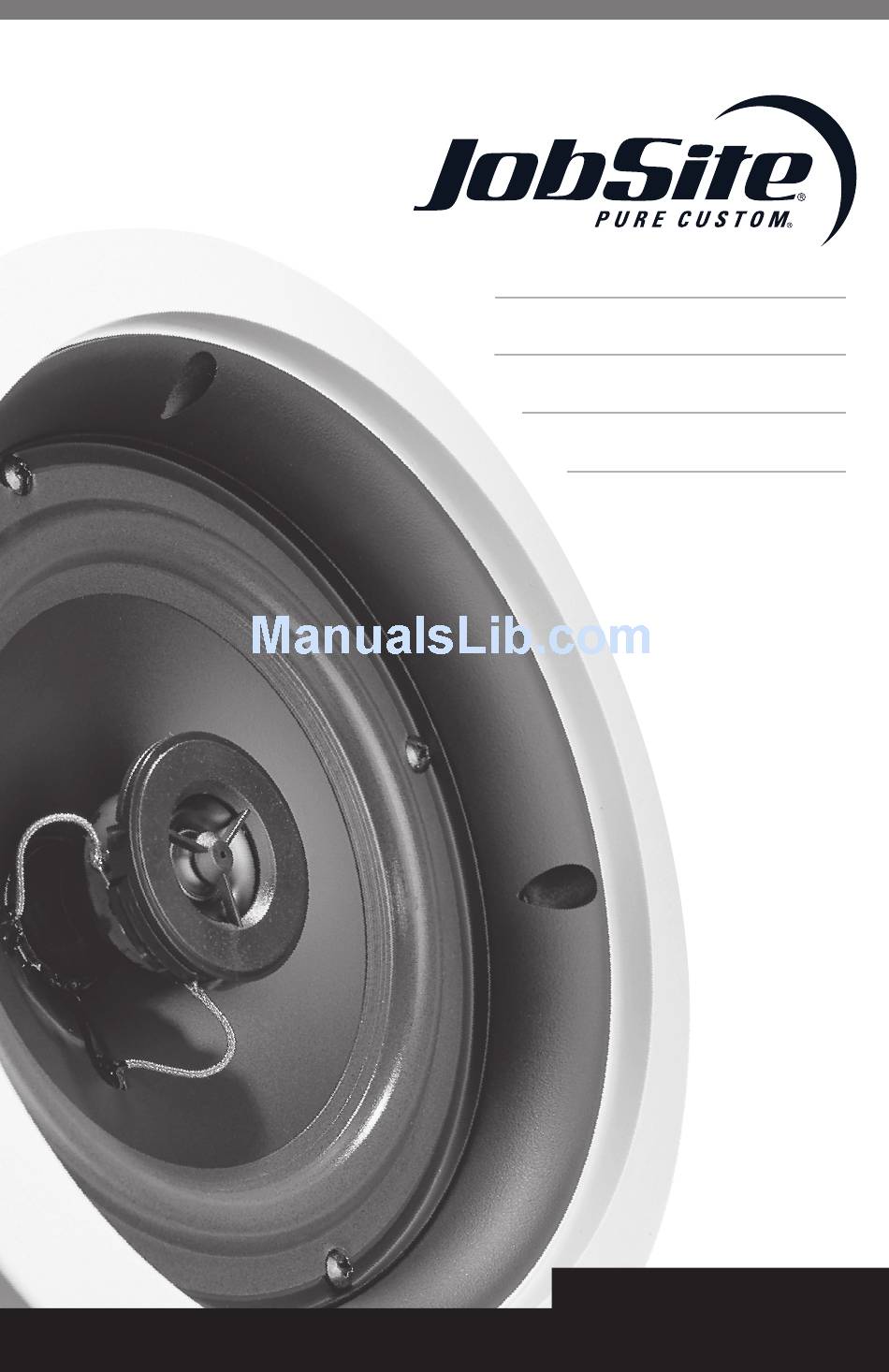

- Page 1 INSTALLATION & USER GUIDE For Music and Voice Reproduction from In-Ceiling Locations LSC-BG 6-1/2” BUILDER GRADE IN-CEILING LOUDSPEAKER...
-
Page 2: Table Of Contents
LSC-BG 6-1/2” BUILDER GRADE IN-CEILING LOUDSPEAKER TABLE OF CONTENTS Features ...1 Product Overview ...2 Package Contents ...2 Preparing for Installation ...2 Installation ...3 Operation ...4 Specifications ...5 Warranty ...5... -
Page 3: Features
■ Rust proof aluminum grilles ■ Installation friendly design: Suitable for painting ■ Connection terminals accept up to 12 gauge speaker wire ■ Quick mounting system for new construction or retrofit installations ■ Includes hole template and paint mask ■... -
Page 4: Product Overview
Speaker cutout template / paint mask x 1 ■ PREPARING FOR INSTALLATION If you are installing the LSC-BG into an existing ceiling, take time to consider any possible obstructions which may be hidden inside the ceiling: ceiling joists, electrical wiring, telephone wiring, plumbing, AC or heating conduit and ductwork. -
Page 5: Installation
10. Tightly twist the end of each wire until no frayed ends remain. 11. Attach the speaker wires to the speaker terminal connectors. Connect the negative output from the amplifier to the black terminal and the positive output to the red terminal. -
Page 6: Operation
9. Repeat this procedure for the next speaker. Removing the Grilles: To remove the grille from the LSC-BG, obtain a small paper clip (size #1, common) and bend the last quarter inch of it into an “L” shape. Holding the paper clip with a pair of pliers, insert the end with the “L”... -
Page 7: Warranty
For the name of your nearest authorized JOBSITE dealer, contact: JOBSITE SYSTEMS, 12331 SW 130 ST, Miami, Florida 33116-0818, or call 1-866-452-7483. Please fill in your product information and retain for your records. - Page 8 WWW.JOBSITESYSTEMS.COM JobSite Systems, a Niles Audio Corporation company, 12331 S.W. 130 Street, Miami, Fl 33186. ©2008 Niles Audio Corporation. JobSite, The JobSite logo, Pure Custom and Niles are registered trademarks of Niles Audio Corporation. All other trademarks are the property of their respec- tive owners.
