- Page 1 INSTALLATION & USER GUIDE For Accurate Music and Voice Reproduction from In-Wall Locations LSW-6 / 6.5 6-1/2” IN-WALL LOUDSPEAKER...
-
Page 2: Table Of Contents
LSW-6/6.5 6-1/2” IN-WALL LOUDSPEAKER TABLE OF CONTENTS Features...1 Product Overview...1 Package Contents ...2 Preparing for Installation...2 Installation...2 Operation...7 Specifications ...7 Warranty...7... -
Page 3: Features

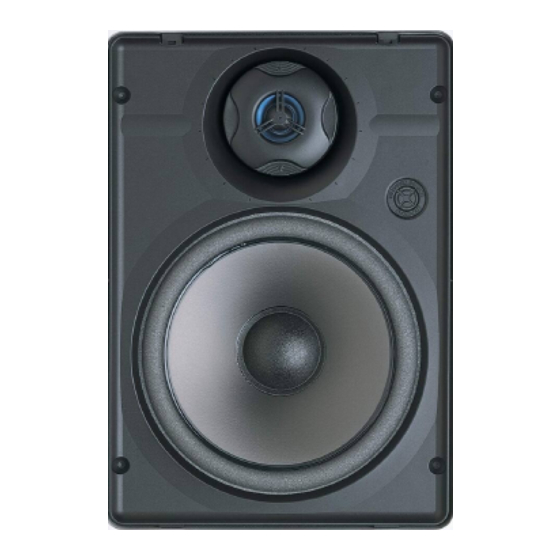

FEATURES: LSW-6 6-1/2” talc filled polypropylene woofer with a treated urethane surround 3/4” pivoting liquid cooled polycarbonate dome tweeter Moisture and UV resistant Rust proof aluminum grilles Installation friendly design: Suitable for painting Connection terminals accept up to 12 gauge speaker wire... -
Page 4: Package Contents
#6 x 1-5/8” Philips head drywall screws x 6 Speaker cutout template PREPARING FOR INSTALLATION If you are installing the LSW-6/LSW-6.5 into an existing wall, take time to consider any possible obstructions, which may be hidden inside the wall: studs, electrical wiring, telephone wiring, plumbing, AC or heating conduit and ductwork. - Page 5 Instructions on page 5. 17. Repeat steps 1-16 for each speaker being installed. 18. After making tonal adjustments on all speakers (LSW-6.5 only), install the grille into the speaker. Figure 2 Installation New Construction: The speaker brackets should be installed prior to the drywall.
- Page 6 Important Safety Instructions on page 5. 18. Repeat steps 1-17 for each speaker being installed. 19. After making tonal adjustments on all the speakers (LSW-6.5 only), install the grilles into the speakers.
-
Page 7: Important Safety Instructions
2. Insert the screws through the dimples until they are securely in place. IMPORTANT SAFETY INSTRUCTIONS When installing LSW-6, LSW-6.5 speakers in a ceiling or if the installation is located in an earthquake zone, it is recommended that you utilize the enclosed self-tapping screws to secure the baffle to the frame See Figure 4. - Page 8 SETTING THE BASS AND TREBLE CUT SWITCHES LSW-6.5 Loudspeakers ONLY LSW-6.5 loudspeakers feature separate baffle-mounted bass and treble controls for fine-tuning after installation. Each control provides for approximately 3dB of Bass or Treble reduction. See figure 7. Listen to a well-recorded piece of music at the user’s favorite listening position.
-
Page 9: Operation
When you hear harsh sounding treble from any good speaker, turn the volume down immediately! You are much less likely to damage a speaker with a large amplifier because it will be less likely to produce any clipping distortion. -
Page 10: Limited Warranty
LIMITED WARRANTY JobSite Systems (“JOBSITE”), a Niles Audio Corporation company, warrants its passive products (those not requiring AC or battery power) to the original purchaser to be free of manufacturing defects in material and workmanship for a period of ten years from date of purchase. - Page 11 NOTES:...
- Page 12 WWW.JOBSITESYSTEMS.COM JobSite Systems, a Niles Audio Corporation company, 12331 S.W. 130 Street, Miami, Fl 33186. ©2004 Niles Audio Corporation. JobSite, Pure Custom and Niles are registered trademarks of Niles Audio Corporation and the JobSite Logo is a trademark of Niles Audio Corporation. All other trademarks are the property of their respective owners.
