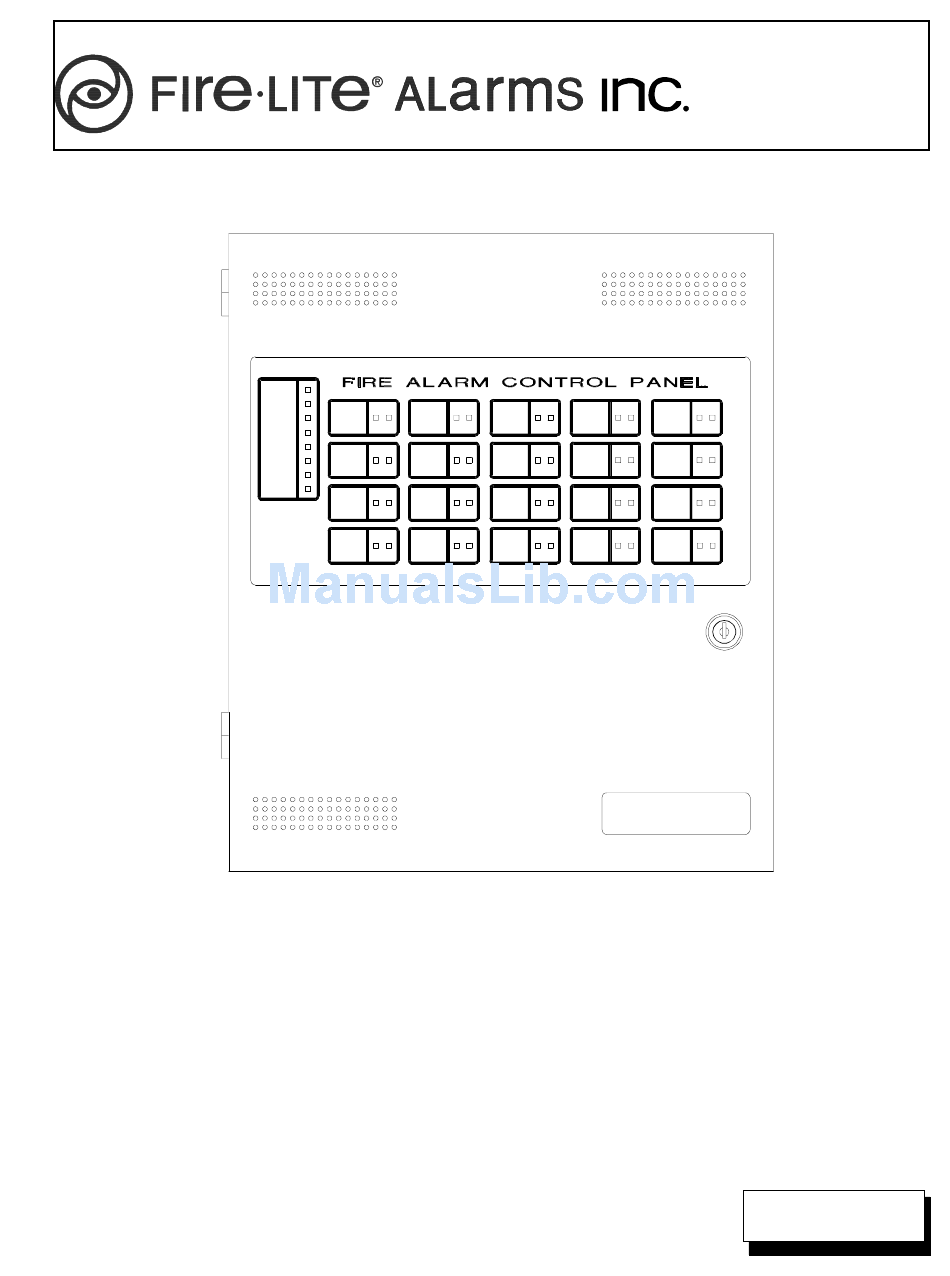

The Sensiscan 200
Installation, Operation, and Programming Manual
12 Clintonville Road
Northford, CT 06472
203-484-7161
FAX: 203-484-7118
C
Document # 15032
02/22/96
Rev:
P/N 15032:C
ECN 96-155

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Sensiscan 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Fire-Lite The Sensiscan 200

Summary of Contents for Fire-Lite The Sensiscan 200

  • Page 1 12 Clintonville Road Northford, CT 06472 203-484-7161 FAX: 203-484-7118 The Sensiscan 200 Installation, Operation, and Programming Manual Document # 15032 02/22/96 Rev: P/N 15032:C ECN 96-155...

  • Page 2: Fcc Warning

    Installation Precautions - Adherence to the following will aid in problem-free installation with long-term reliability: WARNING - Several different sources of power can be connected to the fire alarm Like all solid state electronic devices, this system may operate erratically or can control panel.

  • Page 3: Table Of Contents

    Table of Contents Section One: General Information ..................... 4 Section Two: Inventory ........................ 7 The Basic Equipment Package ..................8 Optional Modules ......................9 Optional Components ..................... 12 Section Three: Installation ....................... 13 Installation Outline ......................13 Mounting the Power Supplies ..................15 Connecting the CPU Ribbon Cable ................

  • Page 4: Section One: General Information

    General Information Introduction The Sensiscan 200 is an expandable multi-zone Fire Alarm Control Panel (FACP) based on a modular design for maximum flexibility. The heart of the system is the Central Processor Unit (CPU) module which monitors and directs the actions of all other modules in the system. Up to two other modules may be installed in various configurations.
  • Page 5 Before proceeding, the installer should be familiar with the following documents and standards (as appropriate): NFPA Standards: NFPA 13 Sprinkler System. NFPA 71 Installation, Maintenance, and Use of Central Station Signaling Systems. NFPA 72-1993 Local, Auxiliary, Remote Station and Proprietary Fire Alarm Systems, Automatic Fire Detectors, Notification Appliances for Fire Alarm Systems, and Testing Procedures for Signaling Systems.
  • Page 6 Minimum System Configurations At a minimum, the following components are required for compliance with NFPA standards 12, 12A, 12B, and 72-1993. Supervisory listing is for local systems only. 1. BE-200 Basic Equipment Package which includes: Central Processor Module (CPU-2000), Main Power Supply (MPS-24BPCA), transformer (4000TA), interconnecting cables, mounting hardware and an instruction manual.

  • Page 7: Section Two: Inventory

    Section Two: Inventory The Sensiscan 200 is offered under a Basic Equipment (BE-200) package which provides the CPU module, Main Power Supply, interconnecting cables, and an instruction manual. Components include modules and devices not provided in the Basic Equipment package. These components also include several items necessary to complete a basic system, such as an initiating module and cabinet.

  • Page 8: The Basic Equipment Package

    The Basic Equipment Package CPU-2000 Central Processor Module This module is the heart of the fire alarm system. It controls and monitors system modules and provides a full accounting of system status. The CPU also contains the following: • two Notification Appliance Circuits. •...

  • Page 9: Optional Modules

    Optional Modules IZ-8F Initiating IZ-4F Initiating Zone Module Zone Module This module provides eight This module provides four Style B Initiating Device Cir- Style B Initiating Device Cir- cuits. Circuits are power cuits. Circuits are power limited and can be pro- limited and are user pro- grammed by the system de- grammable for standard...
  • Page 10 Modules TC-2F/TC-4F Time CR-4LF Control Control Module Relay Module The TC-2F module is in- The CR-4LF module provides tended for single-hazard re- four standard dry Form-C lease and can be config- alarm contacts rated for 5 ured for standard release amps @ 120 VAC or 28 VDC service triple coded re- (resistive).
  • Page 11 Modules IC-4F Indicating ICE-4F Indicating Circuit Module Circuit Expander Provides four Notification Expands the IC-4F to a total of Appliance Circuits for eight Notification Appliance Cir- Style Y or Style Z opera- cuits (either Style Y or Style Z). tion. Maximum signaling Circuit ratings are identical to current is 3.0 amps those of the IC-4F.

  • Page 12: Optional Components

    Optional Components AVPS-24F Audio-Visual Power Supply Supplies power to Notification Appliance Circuits. Spe- cial Purpose power (unfiltered, unregulated) rated for 3.0 amps maximum. Provided with a Trouble Cable (below) for connection to the Main Power Supply. CAB-200 Cabinet The cabinet is 16" high by 14-1/2" wide for recessed mounting between wall studs.

  • Page 13: Section Three: Installation

    Section Three: Installation The control panel's modules communicate with the CPU through a common ribbon cable connection. Installation Outline The following procedures, diagrams, and instructions must be followed precisely to avoid damage to the control panel and its associated equipment. Reliability depends to a great extent upon proper installation and maintenance.
  • Page 14 Preliminary System Wiring – The Main Power Supply (and AVPS-24F, if employed) should be wired at this time while their terminals are readily accessible. Refer to Section Five. Module Ribbon Cables – Connect the Module Ribbon Cable to the CPU as illustrated in Figure 3-2. CPU –...

  • Page 15: Mounting The Power Supplies

    Mount the AVPS-24F Audio Visual Power Supply here with nuts and lock washers provided. Trouble Mount the Main Power Supply here with the screws provided. Mount the Transformer here with nuts and lock washers provided. Figure 3-1: Mounting Power Supplies S200 15032 Rev C 02/22/96 P/N 15032:C...

  • Page 16: Connecting The Cpu Ribbon Cable

    CPU Row Ribbon Plug into uppermost connector on CPU. L-Series Row Ribbon Plug into second connec- tor on CPU. Assigns mod- ules to positions 6 and 7. Figure 3-2: Connecting Row Module Ribbon Cables to the CPU Module L-Series modules Position 6 Position 7 (IC-4RLF, CR-4LF)

  • Page 17: Mounting Optional Module Expanders

    Figure 3-4: Mounting Module Expanders Expander Module Expander/Module Module Step 1: Step 2: Step 3: Attach four standoffs to the Insert the pins on the expander board Secure the module/expander module using the four into the connector on the module and assembly with four nuts and screws provided.

  • Page 18: Mounting Modules In The Cabinet

    Figure 3-6: Mounting Modules in the Cabinet Step 2: Step 1: Push the upper end of the module into the cabinet and Angle the module into the cabinet so the upper secure with two module screws. Straighten LEDs so board edge slips into the cabinet slot as shown. they extend from the board at a 90-degree angle.
  • Page 19 UL Power-limited Wiring Requirements Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25" away from any nonpower-limited circuit wiring. Furthermore, all power-limited and nonpower-limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits. A typical wiring diagram for the System 200 is shown below.

  • Page 20: Section Four: Field Wiring The Modules

    Section Four: Field Wiring the Modules The following procedures, diagrams, and instructions must be followed precisely to avoid damage to the control panel and it's associated equipment. Reliability depends to a great extent upon proper installation and maintenance. System modules feature removable terminal blocks that ease installation and servicing of the control panel.

  • Page 21: Cpu Terminal Connections

    Coil resistance = 14.6 ohms (max) Internal resistance = 1360 ohms (nominal). Intended for connection to the polarity reversal Style Y circuit of a remote station receiving unit (Fire-Lite Model RS-82) having compatible ratings. 4.7K, 1/2 watt ELR, Part # 71252.

  • Page 22: Dummy Loading Unused Circuits/Eia Interface

    4.7K, 1/2-watt Resistor, 4.7K, 1/2W Resistor Part # 71245. Part # 71245 An unused notification circuit can be termi- If the Municipal Box Output is not to be nated with one dummy-load resistor (illus- used, it must be terminated with a trated above on Terminals 1-4) or with two dummy-load resistor.

  • Page 23: Wiring The Modules

    24 VDC power. Initiating Device Circuit Use only the compatible, UL-listed 2-wire smoke detectors that are listed in the Fire-Lite Device Compatibility Document (Document no. 15384) Dummy load all unused circuits For connection of 4-wire smoke detectors, refer to Section Six.
  • Page 24 Figure 4-5: Style D Field Wiring of IZ-8F Initiating Zone Module with IZE-AF Expander A B C D E F G H a+ a- a+ a- a+ a- a+ a- a+ a- a+ a- a+ a- a+ a- b+ b- b+ b- b+ b- b+ b- b+ b- b+ b- b+ b- b+ b- Manual Pull Station UL-listed 2-wire Photo smoke detector...
  • Page 25 Initiating Device Circuits are supervised, power limited and may be connected to limited-energy cable, except for initiating devices that require 24 VDC power. Use only the compatible, UL listed 2-wire smoke detectors are listed in the Fire-Lite Device Compatibility Document (Document no. 15384) For connection of 4-wire smoke detectors, refer to Section Six.
  • Page 26 Figure 4-7: NFPA Style Y, Z Field Wiring of Notification Circuit Module (IC-4F) and Expander (ICE-4F) Optional ICE-4F Indicating Circuit Expander. Positions E, F, G, and H are active only with this board installed. b+ a+ a- b- b+ a+ a- b- b+ a+ a- b- b+ a+ a- b- Typical NFPA Style Y Notification Appliance...
  • Page 27 Figure 4-8: Field Wiring of the Control Relay Module (CR-4F) and Control Relay Expander (CRE-4F) * Optional CRE-4F Control Relay Expander. Positions E, F, G and H are active only with this board installed. no nc c no nc c no nc c no nc c These Form-C gold-plated, silver alloy relay contacts are for medium duty switching and for Pilot Duty.
  • Page 28 Figure 4-9: Field Wiring of the L-Series Control Relay Module (CR-4LF) These Form-C gold-plated, silver alloy relay contacts are for medium duty switching and for Pilot Duty. UL contact ratings are 5 amps @ 125 volts AC (resistive) or no nc c no nc c no nc c no nc c 30 volts DC (resistive) and 2 amps @ 125 volts AC (inductive).
  • Page 29 Figure 4-10: Field Wiring of the L-Series Combination Output Module (ICR-4LF) 4.7K, 1/2 watt ELR, Part # 71252. Typical UL. listed 24 VDC NFPA Style Y Polarized Bells Notification Appliance UL. listed Circuit 24 VDC Polarized Horns Typical Form-C Control Form C Relay Relay in Standby Position nc c...

  • Page 30: Section Five: Power Supplies

    Section Five: Power Supplies The Main Power Supply The MPS-24BPCA Main Power Supply is capable of powering the control panel continuously during standby and alarm conditions. A total of 750 mA amps @ 24 VDC regulated is available from the power supply for operating the system during Standby conditions.
  • Page 31 Figure 5-1: Field Wiring the Main Power Supply Normally-Closed Trouble Contacts Contacts open when the main power supply enters a trouble condition. Removal disables battery charger * Cut JP1 to make 4-wire smoke detector power on TB2 Terminals 1 and 2 a non-resettable circuit.

  • Page 32: Mps-24Bpca Harness Connections

    Figure 5-2: Main Power Supply Harness Connections If powering an indicating circuit or time control module from the MPS, connect the Bell Power Harness from J6 on the CPU to J5 on the particular output module. Bottom View of IC-4F Main Bell Power Harness (75169) Connect Blue Wire to MPS TB2...

  • Page 33: Wiring The Avps-24F

    Figure 5-3: Field Wiring the AVPS-24F Audio Visual Power Supply (Bottom view) +24 VDC Special Purpose Power J5 J6 (IC-4F) Unfiltered, unregulated, power-limited J5 J6 (3.0 amps max). Use power harness to provide (ICE-4F) power to notification circuit or time control mod- ules (connect to J5 on IC-4F or ICE-4F).

  • Page 34: Section Six: Applications

    Section Six: Applications Waterflow Alarm A waterflow alarm device may be connected to an Initiating Device Circuit (zone) provided that the circuit is programmed to activate at least one Notification Appliance Circuit and one of the following conditions are met: The Initiating Device Circuit is programmed for waterflow operation;...
  • Page 35 DACT, continued Annunciators and a UDACTF can be connected to the EIA-485 Annunciator Port simultaneously. However, the modified EIA-485 protocol alters the assignment of the first eight yellow annunciator LED’s as follows: Trouble Point Software P/N 73452 Software P/N 73611 and higher (Yellow LED) and lower Without UDACTF...
  • Page 36 The UDACTF is capable of reporting the status of each zone (circuit) on the Sensiscan 200. The UDACTF reports alarms and troubles on inputs and reports only troubles on outputs. Beware of “gaps” in the reporting of input circuits. “ Gaps ” depend upon the mounting location and FACP configuration.
  • Page 37 No connection to top pin Required for supervision if UDACTF is operated in "receive only" mode. Notifier cable P/N 75148 Filtered, regulated, may be ordered for this resettable, power Lower pin purpose. limited 24 VDC connects to TB3, pin #2 on UDACTF (Comm Fail) Figure 6-1B: MPS-24BPCA Connection to UDACTF...
  • Page 38 Figure 6-2: 911A Digital Communicator Connection The Noti-Fire 911A Digital Alarm Communicator Transmitter (DACT) is a three-zone module designed to provide for off-premises monitoring of this FACP. For stand-alone installations, use the 911AC kit that includes a transformer and an enclosure(s) for both the 911A and the transformer. The 911A is self-powered in this mode and is triggered by the alarm and/or trouble contacts received from the FACP.

  • Page 39: Proprietary Protective Signaling

    Proprietary Protective Signaling This control panel can be employed as a Proprietary Protected Premise Control Unit when used in conjunction with a compatible, UL listed receiving unit. This control panel may incorporate a NIB-96 Network Interface Board which provides the interface to a Notifier AM2020/AFP1010 Proprietary Receiving Unit.

  • Page 40: Tee-Tapping

    Tee-Tapping One Tee-Tap will be allowed on Style Y Notification Appliance Circuits if a 10K End-of-Line Resistor (Part # 71274) is used on each branch as shown in Figure 6-4. Listed 4.7K ELR 10K ELR (Part # 71252) (Part # 71274) Standard Tee-Tapped Notification Style Y...

  • Page 41: Four-Wire Smoke Detectors

    Four-Wire Smoke Detectors Initiating devices requiring 24 VDC operating power can be wired as illustrated in Figures 6-5 and 6-6. IZ-4AF or IZ-8F with IZE-AF Initiating Device Circuit IDC(+) IDC(-) +24 VDC 24 VDC (+) 0 VDC Common (-) 24 VDC Power Supply UL-listed 24 VDC UL Listed Power Four-Wire Smoke Detectors...

  • Page 42: Notification Appliance Circuit Power Configurations

    Notification Appliance Circuit Power Configurations The total current drawn from a Notification Appliance Circuit cannot exceed 3.0 amps (subject to the limitations of the power supply). Figure 6-7 illustrates some of the typical power supply/Notification Appliance Circuit configurations possible. Bottom view of the IC-4F/ICE-4F Figure 6-7: Typical Supply/Notification Circuit Configurations These two Notification...
  • Page 43 Figure 6-7: Typical Supply/Notification Circuit Configurations (continued) These four Notification Appliance Circuits share 2.0 amps ICR-4LF These two Notification Appliance Circuits share 2.0 amps and these two Notification Appliance Circuits share AVPS-24F ICR-4LF 3.0 amps S200 15032 Rev C 02/22/96 P/N 15032:C...

  • Page 44: Remote Command Inputs

    Remote Command Inputs The function of Acknowledge, Signal Silence, and System Reset can be executed from remote switches. The switches are wired to IZ-8F circuits which must be programmed for this special operation. Additional functions are outlined below. Presignal Inhibit: Zone 1. Program zone as non-alarm and supervisory. This command is used to inhibit presignal operation.
  • Page 45 Figure 6-9: Remote Presignal Inhibit, Emergency Alert, Acknowledge, Signal Silence and System Reset Switches (Style B). Use circuit "E" for Emergency Alert, "F" for Acknowledge, "G" for Signal Silence, and "H" for Reset. Style B ñ ñ ñ ñ ñ ñ ñ ñ 4.7K ELR B+ B- B+ B-...
  • Page 46 Figure 6-10: Remote Presignal Inhibit, Emergency Alert, Acknowledge, Signal Silence and System Reset Switches (Style D). Use circuit "E" for Emergency Alert; "F" for Acknowledge; "G" for Signal Silence; and "H" for Reset. Style D ñ ñ ñ ñ ñ ñ ñ ñ A+ A- A+ A- A+ A- A+ A- A+ A- A+ A- A+ A- A+ A- Presignal Inhibit...

  • Page 47: Section Seven: Programming

    Section Seven: Programming General The control panel is programmed entirely by using the four switches on the CPU. The eight LEDs show the programmer the status of programming. Each of these LEDs has two states: flashing and steady . On the programming label, two functions are associated with each LED.

  • Page 48: General System Programming

    System Programming System programming is entered directly by password or is automatically entered after reconfiguring the control panel. After entering the system programming password (123-1232), the green PASSWORD ACCEPT LED and the yellow PROGRAM/SERVICE LED will illuminate. System programming is performed sequentially. The first function to be programmed is WATERFLOW.
  • Page 49 Silenceable Operation Silenceable circuits are controlled output circuits that, when activated, can be silenced by pressing the Signal Silence key on the CPU. Do Not program the Remote Signalling / Municipal Tie output for silenceable operation. Programming Silenceable Circuits The SILENCEABLE LED will flash on the CPU. The pointer is represented by a flashing yellow LED on the first output circuit.
  • Page 50 Verification should only be used on circuits where the false alarm rate cannot be reduced to an acceptable level by other means. Only alarm signals from two-wire smoke detectors can be verified since four-wire smoke detectors are not reset during verification. Both two-wire smoke detectors and N.O. shorting-type initiating devices may be connected to the same circuit.
  • Page 51 Programming Non-Alarm Inputs The NON ALARM INPUTS LED will flash. The pointer will be at the first initiating circuit. Use the STATE CHANGE switch to select or deselect the circuit as a Non-Alarm Input. The left-hand LED (red) on each point will illuminate when the circuit is selected, and will extinguish when the circuit has been deselected.

  • Page 52: Extended Programming Features

    Extended Programming Features Extended Programming Features are available in CPU EPROM U4 software numbered 73167 or greater. CAUTION: Do not use Extended Programming Features in a network system employing NIB-96 boards! The AUTO SILENCE feature will automatically turn off all silenceable circuits after a pre-programmed delay. The delay timer starts after a system alarm.
  • Page 53 Programming PROGRAMMING Auto Silence program AUTOSILENCE, REMOVE THIS CARD None AFTER PROGRAMMING PRESIGNAL DELAY, and CALIFOR- 5 Minutes NIA CODE, do the following: F ENTER PASSWORD S PASSWORD ACCEPTED 10 Minutes 1. Insert the programming label. F WALK TEST 20 Minutes 2.

  • Page 54: Section Eight: Operating The Control Panel

    Section Eight: Operating the Control Panel CPU LED Indicators AC POWER – A green LED that indicates normal AC power. This LED turns off when the AC line voltage falls below normal. SYSTEM ALARM – A red LED that indicates an alarm condition. This LED initially flashes during alarm (the CPU will also sound a continuous audible tone).

  • Page 55: Cpu Circuits

    CPU Circuits The CPU Module contains: 1) Two supervised Notification Appliance Circuits that can be used to control evacuation signaling devices, such as bells, chimes, horns, and strobes; 2) An alarm relay that can control external de- vices such as elevators, and doors; and 3) A Remote Signaling/Municipal Tie output for connection to a munici- pal fire department, central station, or a remote monitoring station.

  • Page 56: Modules

    CR-4F IC-4F IZ-4F CR-4F and CR-4LF Control Re- IZ-4F, IZ-4AF and IZ-8F Initiating IC-4F Indicating Circuit Module lay Modules Zone Modules Each Indicating Circuit Module Each Control Relay Module (CR) Each Initiating Zone Module (IZ) will (IC) will control and monitor up to controls up to eight relays, which monitor up to eight initiating zones eight Notification Appliance Cir-...

  • Page 57: Disabling/Enabling Circuits

    Disabling/Enabling Circuits For servicing of the system, input or output circuits can be disabled. To disable a circuit, the operator must enter a 1-2-3 key sequence and advance to the circuit to be disabled. 1) Press the LAMP TEST switch and hold it in throughout the remainder of this procedure.

  • Page 58: Section Nine: Testing & Maintenance

    Section Nine: Testing & Maintenance Acceptance Test Upon completion of the original installation and following subsequent modifications, a complete operational test should be conducted on the entire installation for the purpose of verification of compliance with the applicable NFPA standards. Testing should be conducted by a factory-trained distributor in the presence of a representative of the Authority Having Jurisdiction and the Owner's Representative.

  • Page 59: Battery Checks

    Battery Checks Maintenance-free sealed lead-acid batteries do not require the addition of water or electrolyte. They are charged and are maintained in a fully charged state by the main power supply's float charger during normal system operation. A discharged battery will charge at 0.75 amps (typically) and obtain its float voltage of 27.6 volts within 48 hours.

  • Page 60: Appendix A: Supply Calculations

    Appendix A: Supply Calculations Appendix A contains tables for calculating primary, secondary, and AC branch requirements for the control panel. Calculations cover the entire line of S200 equipment. The power supply must be able to power the fire alarm system under all operating conditions. Use the following tables: •...
  • Page 61 Sensiscan 200 System Current Draw Calculation Table (Table A-2A) NOTE: The Primary Power Source Non-Alarm Current and Alarm Current columns of Table A-2A are current calculations – not battery calculations . Use the calculations to confirm that the main power supply (MPS) can supply enough current to support the system during Primary Non-Fire Alarm and Fire Alarm conditions.
  • Page 62 Limit: 0.750 Amps Limit: 0.750 Amps Limit: 0.750 Amps Table A-2A: System Current Draw Calculations Notes 1) Current drawn from TB2-1 and TB2-2 cannot exceed 200 mA at anytime. 2) The load on the regulator cannot exceed 750 mA. 3) This table does not account for current drawn from TB2-3 and TB2-4, which is limited to 800 mA in Standby and 2.0 Amps in Alarm, exclusive of the 750 mA limit on the regulator.
  • Page 63 Maximum Secondary Power Fire Alarm Current Draw Use Table A-2B to determine the maximum current requirements of a secondary power source during fire alarm conditions. The total obtained in Table A-2B is the amount of current that the batteries must be capable of supplying.

  • Page 64: Appendix B: Canadian Requirements

    Appendix B: Canadian Requirements for Supervisory Zones Note for Canadian installations: Initiating Red LED Zone Canadian installation require the use of modified modules and annunciators used for supervisory zones. Modified modules have the red LED covered up so illumination of Yellow LED the red LED under supervisory condition will not be visible to the user.

  • Page 65: Programming Log

    Programming Log Alarm Initiating Device Circuits This zone has been mapped to output circuits: Zone Verification Output Module Label Type or PAS? 5 6 7 8 9 10 Mun Box Alarm Relay Zone # 1: Zone # 2: Zone # 3: Zone # 4: Zone # 5: Zone # 6:...
  • Page 66 NOTES S200 15032 Rev C 02/22/96 P/N 15032:C...
  • Page 67 NOTES S200 15032 Rev C 02/22/96 P/N 15032:C...
  • Page 68 Operating Instructions NORMAL STANDBY OPERATION 1) The green AC POWER indicator must be lit, 2) all alarm (red LEDs) and trouble indicators (yellow LEDs) should be off. ALARM CONDITION: Activation of a compatible detector or any normally open fire alarm initiating device will result in the following action by the control panel: 1) activate alarm notification, control, and signaling outputs as programmed, 2) light the Red SYSTEM ALARM LED and the associated initiating circuit alarm LED(s), and 3) A steady audible tone will sound until the alarm is acknowledged or silenced.

  • Page 69: Limited Warranty

    For products not under Fire-Lite manufacturing date-stamp control, the warranty is ® eighteen (18) months from date of original purchase by Fire-Lite 's distributor unless the installation instructions or catalog sets forth a shorter period, in which case the shorter period shall apply. This warranty is void if the product is altered, repaired or ®...
