  • Page 1 Security Camera EYE -02...

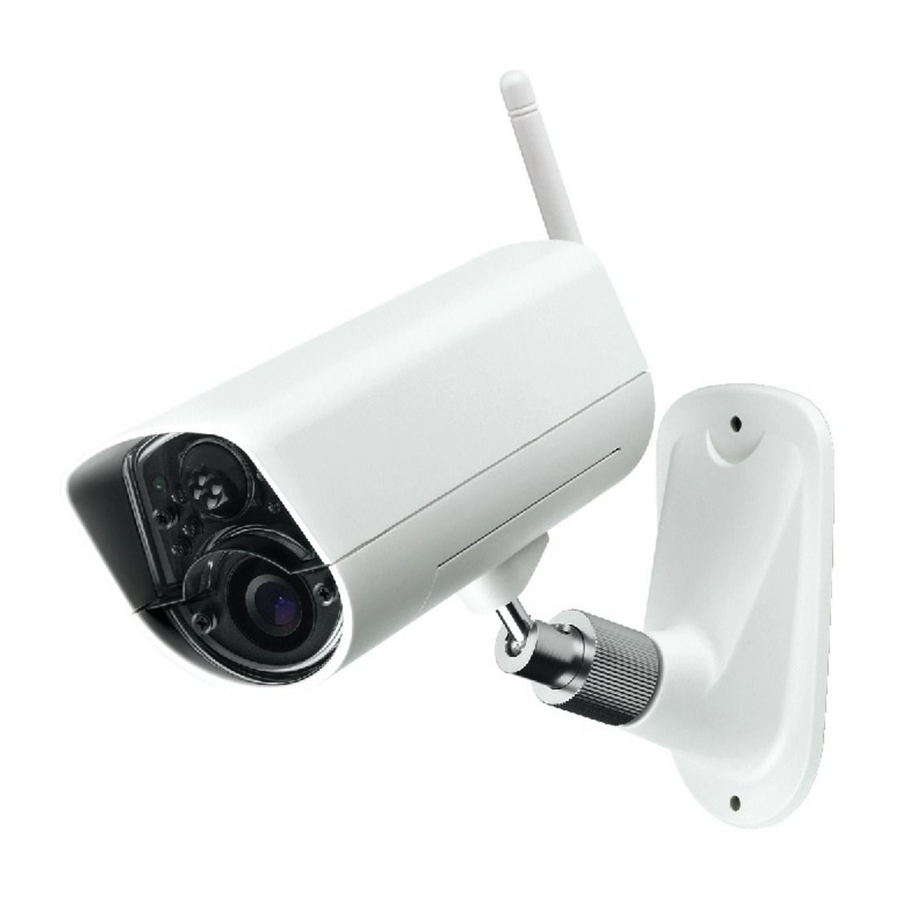

  • Page 2 Camera EYE-02: GSM Antenna Battery cover Power button PIR motion sensor AC adaptor socket Red light Green light USB connector Camera lens Infra red ilumination Package content: EYE-02 camera Battery Key-fob Instalation CD USB cable Screwdriver Wall mounting screws AC adapter...

  • Page 3: Table Of Contents

    • EYE-02 allows 24 hour monitoring via its night view mode. • EYE-02 is compatible with a wide range of external wireless devices (refer to the table on the inside back cover of this manual). JR_EYE-02.ENG.MAN.Manual.12.D - 1 -...

  • Page 4: Eye-02 Camera Description

    USB connector Infra red illumination (LEDs) Battery cover 1.3 EYE-02 Camera Internal Parts Please refer to the EYE-02 camera picture D on the back cover of this manual. Microphone + digital signal processing Dual band GMS antenna • Glass-break detection...

  • Page 5: Installation

    Connect camera to power source Plug the power cable to camera. Plug the power adaptor to wall socket. The camera will automatically turn on. Wait 30 seconds and check the EYE-02 camera LED lights on the front panel. • Enroll your mobile phone and remote control to the camera...

  • Page 6: Camera Function

    ERROR Red light is permanently On. Four short beeps 3.2 Working Modes The EYE-02 camera has three main working modes: S L EEP, WATC H and CO NFIG. Button on Mode Description the Remote Control SLEEP mode is a stand-by mode of the camera. The camera doesn’t...

  • Page 7: Config Mode

    3.4 Detectors The EYE-02 camera integrates a wide range of detectors. This sophisticated solution of combining vari- ous types of detectors enables the user to protect the desired area from a wide range of threats. This chapter briefly describes individual detector’s principles necessary for correct setting of detection.

  • Page 8: Profiles

    The detectors are optimized for application in rooms with maximum distance up-to 10 meters. 3.5 Profiles The EYE-02 camera allows fast and simple setting of all necessary detector parameters by selecting one of the pre-defined PROFILEs. These profiles are suitable for most camera applications. If necessary, the profile may be further adjusted by the user.

  • Page 9: Reports

    3.6 Reports The EYE-02 camera can report events to mobile phones (via voice call , text message , MMS or to e-mail addresses. Up to 10 different phone numbers and 10 e-mail addresses can be saved to the camera list.

  • Page 10: Security Settings

    ENROLL mode. If there are no phones saved in the contact list (after installing a new EYE-02 camera or after using the factory reset function), the camera switches automatically to ENROLL mode and waits for an incoming call.

  • Page 11: Sms Commands

    User accessing its EYE-02 camera trough the JabloTool WEB will be guided to establish the connection to the camera. If the user is not registered or if the EYE-02 camera is not protected by Remote Access Password, the user will have to send a special SMS authorization command from his mobile phone first to initiate the EYE-02 camera connection to the JabloTool.

  • Page 12: Config Commands

    REPORT SMS The EYE-02 camera sends a report of the 10 latest events . Camera sends up to 5 SMS. REPORT MMS EYE-02 camera sends an MMS with the last alarm event recorded in the camera history.

  • Page 13: Event Reports

    4.3 Event Reports Every event detected by the EYE-02 camera is recorded into the camera’s memory. The event record consists of the date and time mark, detail description of the event including its source and a video record.

  • Page 14: Video Record Setting (Available Through Jablotool Only)

    (similar to ALARM, but ALERTs are not reported to the contacts) or some technical reports (Example: information about the AC power failure). 4.4 Video Record Setting (Available through JabloTool only) The EYE-02 camera allows detail setting of all important parameters for collecting video records under many conditions. Parameter...

  • Page 15: Gsm Network Setting

    GSM network you use. The EYE-02 camera can automatically adjust the correct setting for most of GSM networks. In case there are some specific settings of your GSM network, which you got from you GSM network operator, you can configure it manually in JabloTool, Device configuration, GSM network folder.

  • Page 16: Other Features

    3 seconds. When the green light on the front panel switches off, the camera shuts down. To switch the EYE-02 camera ON, press and hold the power button on the back panel of the camera. Keep holding the button until the green light on the front panel switches on. The start-up process has started and you can release the button.

  • Page 17: Battery Mode

    GSM network, switches off the short range radio receiver and switches on the motion-in- picture detector only after ALERT). It means that the EYE-02 camera, while in the BAT T ERY mode, can not be reached by calls or by SMS commands. Additionally, the external detectors and remote controls cannot be used for the BATTERY mode, too.

  • Page 18: Reset To Factory Defaults

    Archive of static JPEG files recorded at ALARMs (For example: “p0065401.jpg”) VIDEO Archive of AVI video files records the ALARMs (For example: “vid01021.avi”) The file with the current configuration of EYE-02 – can be used for backup or restore of config.txt configuration.

  • Page 19: Outdoor Installation

    5.9 Outdoor Installation Although the EYE-02 camera housing provides a basic humidity resistance, it is required to use an additional plastic housing when mounted outdoors to protect the camera against rain and snow. If an external housing with a front glass is used, the internal IR illumination must be switched off and an external IR lamp must be used.

  • Page 20: Technical Specification

    A battery’s performance is particularly limited in temperatures well below freezing. 8.2 Warranty Hereby, JABLOCOM s.r.o., declares that this EYE-02 GSM Camera is in compliance with the essential require- ments and other relevant provisions of Directive 1999/5/EC. The original conformity assessment document can be found at the web site www.jablocom.com.

  • Page 21: Safety Instructions

    Limited warranty: Subject to the conditions of this Limited warranty JABLOCOM s.r.o. warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a customer and for a subsequent minimal warranty period under the national legislation in force.

  • Page 22: Disposal Information

    Battery and Charger Handling & Safety Use only JABLOCOM approved accessories and batteries. Do not connect incompatible products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit the battery terminals.
  • Page 23 Wireless devices: Controlers Detectors Sirens and Relays personal wrist button gas leak detector internal siren key-fob door (window) opening detector outdoor siren motion detector relay doorbell button wall button smoke detector thermostat III.

  • Page 24: Microphone + Digital Signal Processing

    Inside parts: Short range radio Dual band GSM antenna • Free band 868 MHz • Allows cooperation with remote controllers • Possible extension EDGE/GSM module with JABLOTRON professional • Picture transfer to mobile wireless security system phones via MMS or e-mail •...
